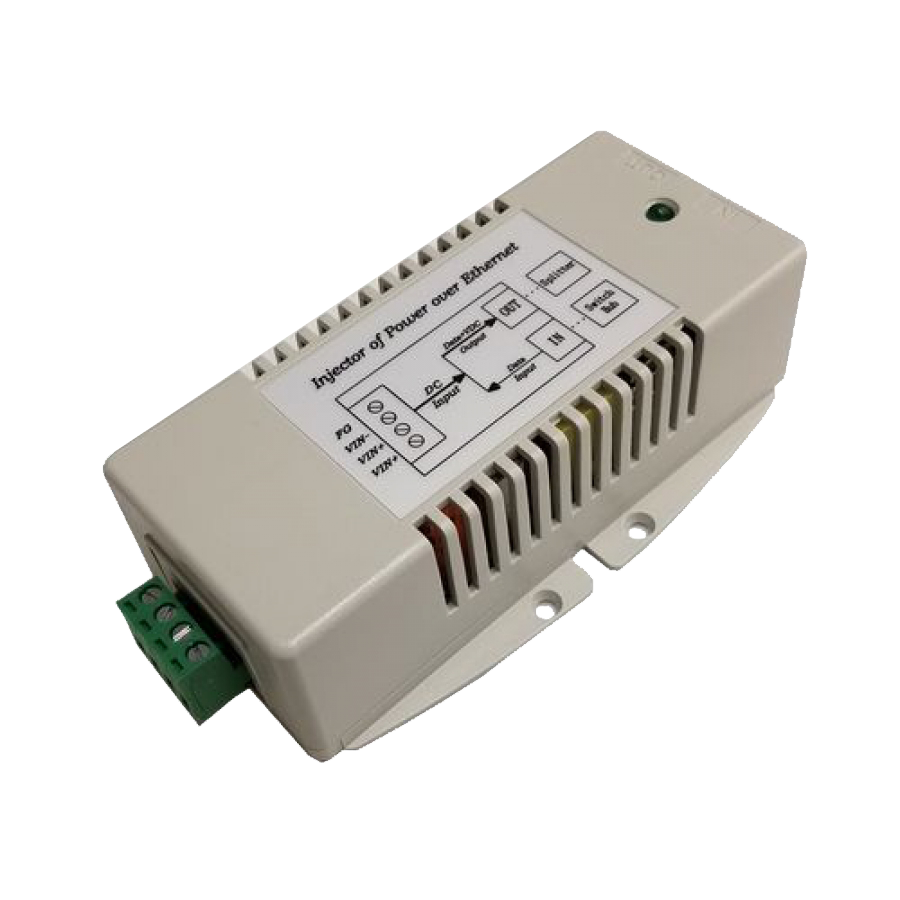

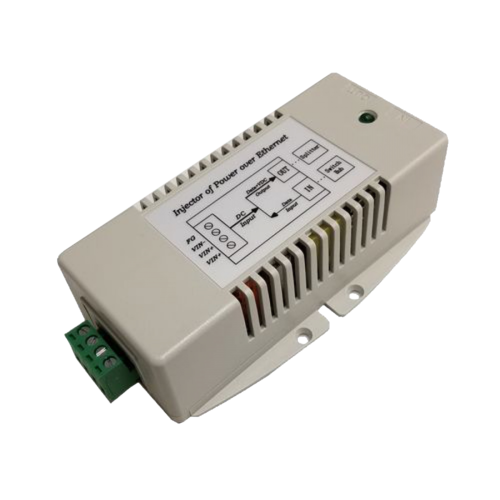

10-15VDC In 24VDC Out, 35W Passive POE Converter

TP-DCDC-1224-HP

$95.95
In Stock

10-15VDC IN 24VDC OUT, 35W Passive POE Converter.



The TP-DCDC-1224-HP DC to DC converters are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a 12V battery system.

They have an integrated POE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 10VDC and 15VDC. They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power output of 30W.

The input voltage must be between 12/24VDC. They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power output of 19W.

Features

  • nput Voltage 10-15VDC; Output 24VDC
  • Integrated POE Inserter
  • High Power 35W
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation
  • Removable Wire Terminal Input for up to 12AWG wires

Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
Weight: 134g (4.7oz)

* Check product specifications to verify PoE compatibility



(TP-DCDC-1224-HP)

10-15VDC In 24VDC Out, 35W Passive POE Converter

Whats in the box?

  • 1 x 10-15VDC In 24VDC Out, 35W Passive POE Converter

10-15VDC In 24VDC Out, 35W Passive POE Converter - Specifications

SKU TP-DCDC-1224-HP
Model # TP-DCDC-1224-HP
Barcode # 709257276151
Brand Tycon Power
Shipping Weight 0.1340kg
Shipping Width 0.036m
Shipping Height 0.076m
Shipping Length 0.085m
Shipping Cubic 0.000233000m3
Unit Of Measure ea
