Ubiquiti NanoSwitch 4 -Port Gigabit (PoE Passthrough)
N-SW
$78.38
In Stock
Ubiquiti Switch Outdoor 4-Port PoE Passthrough

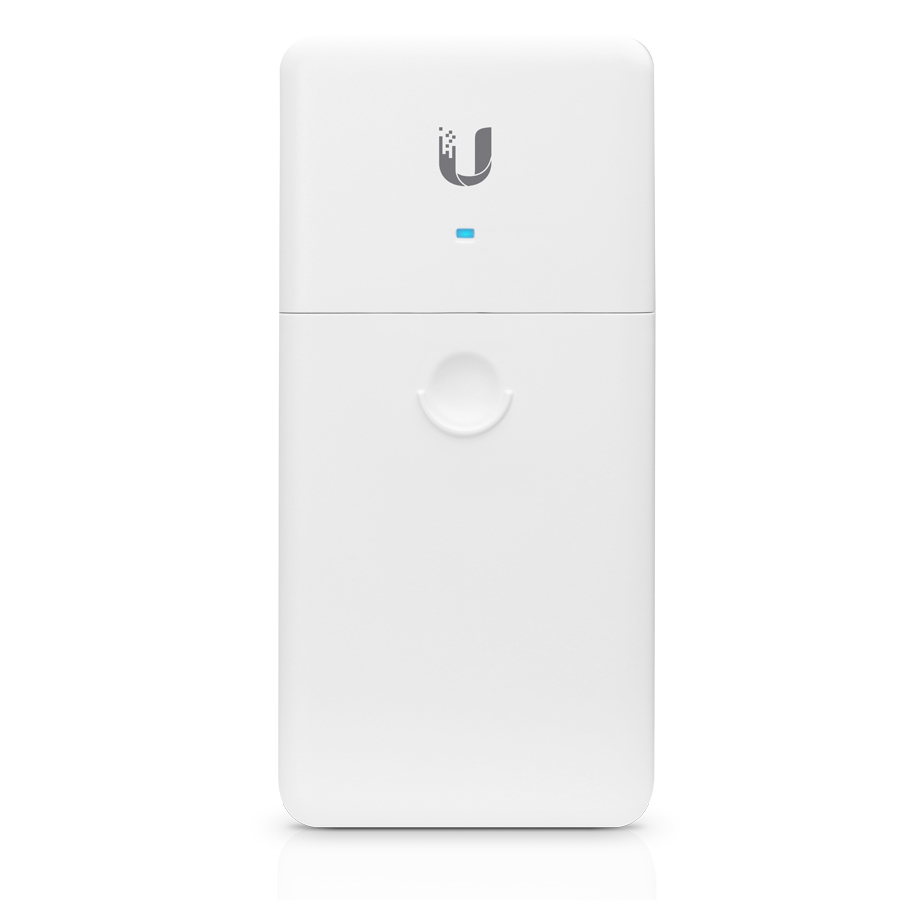

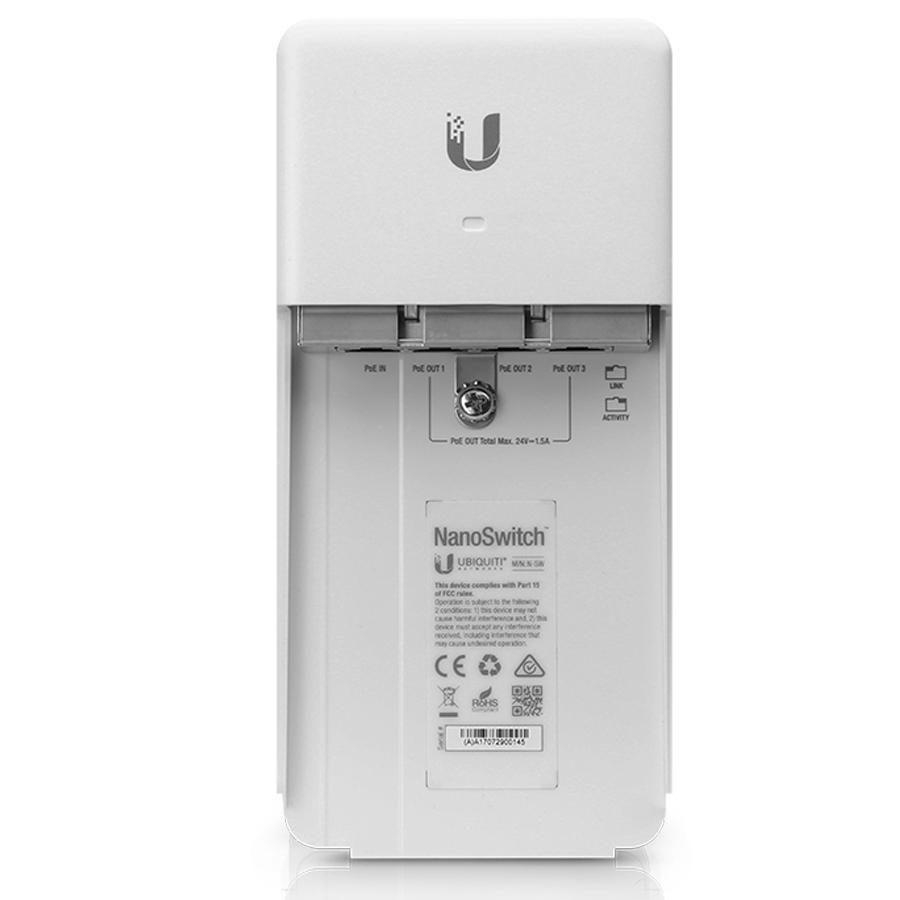

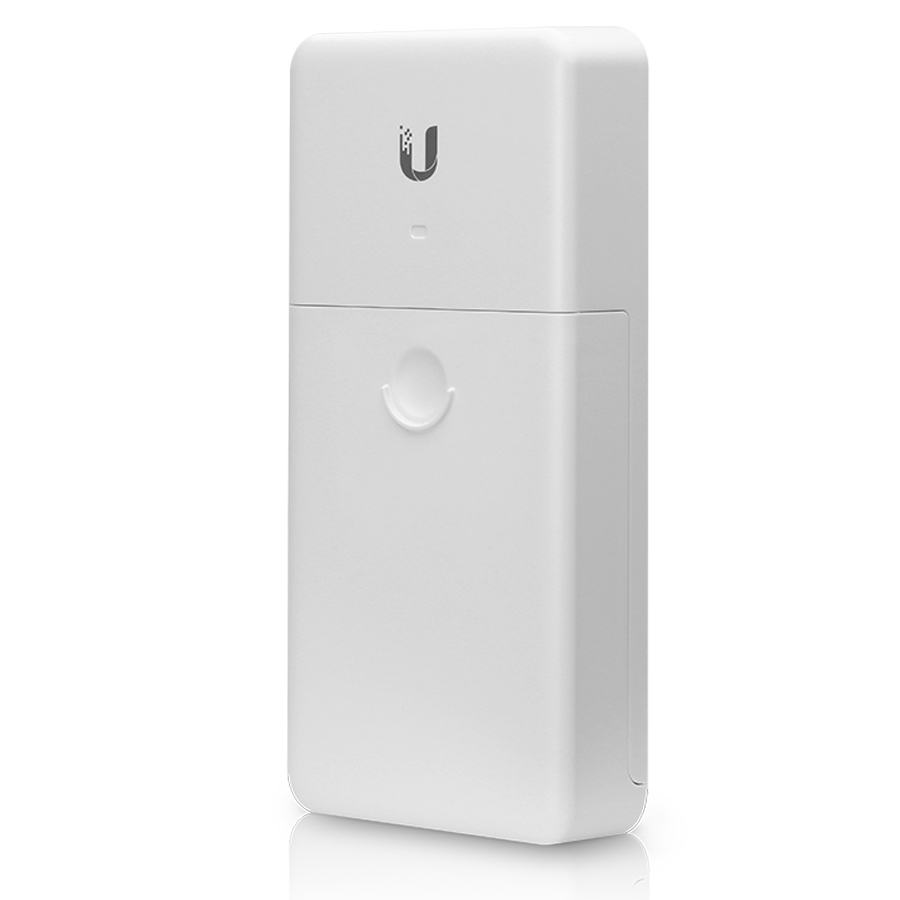

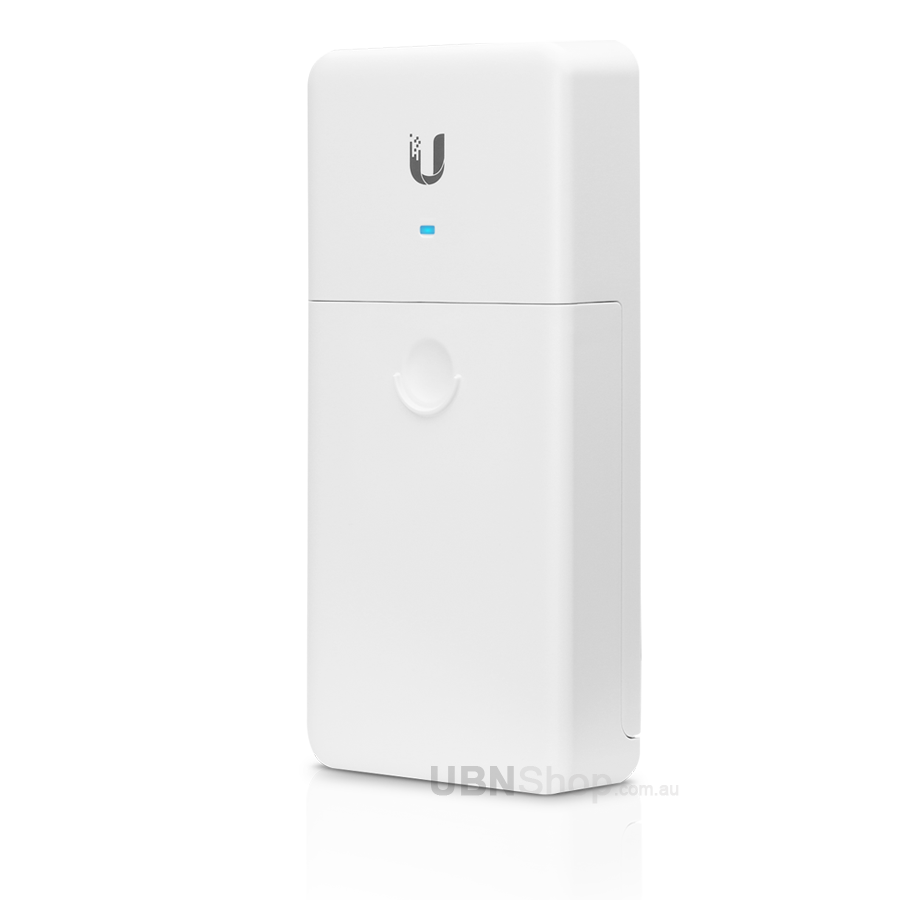

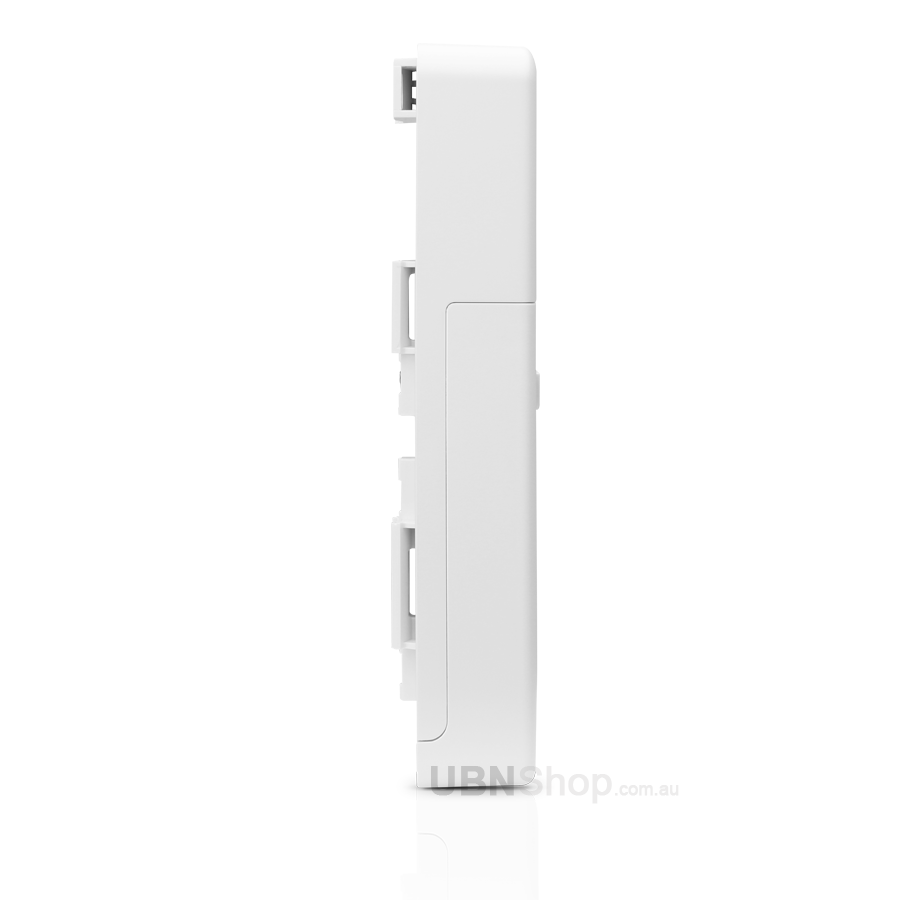

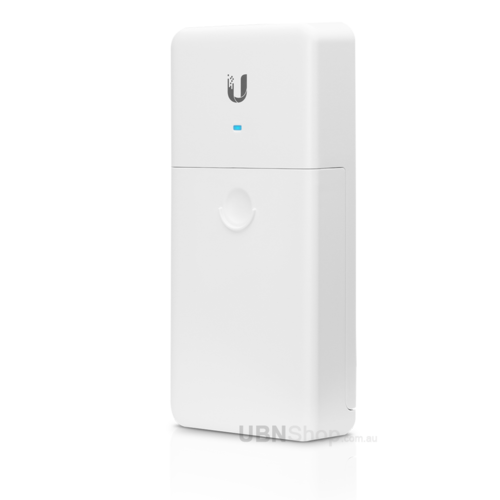

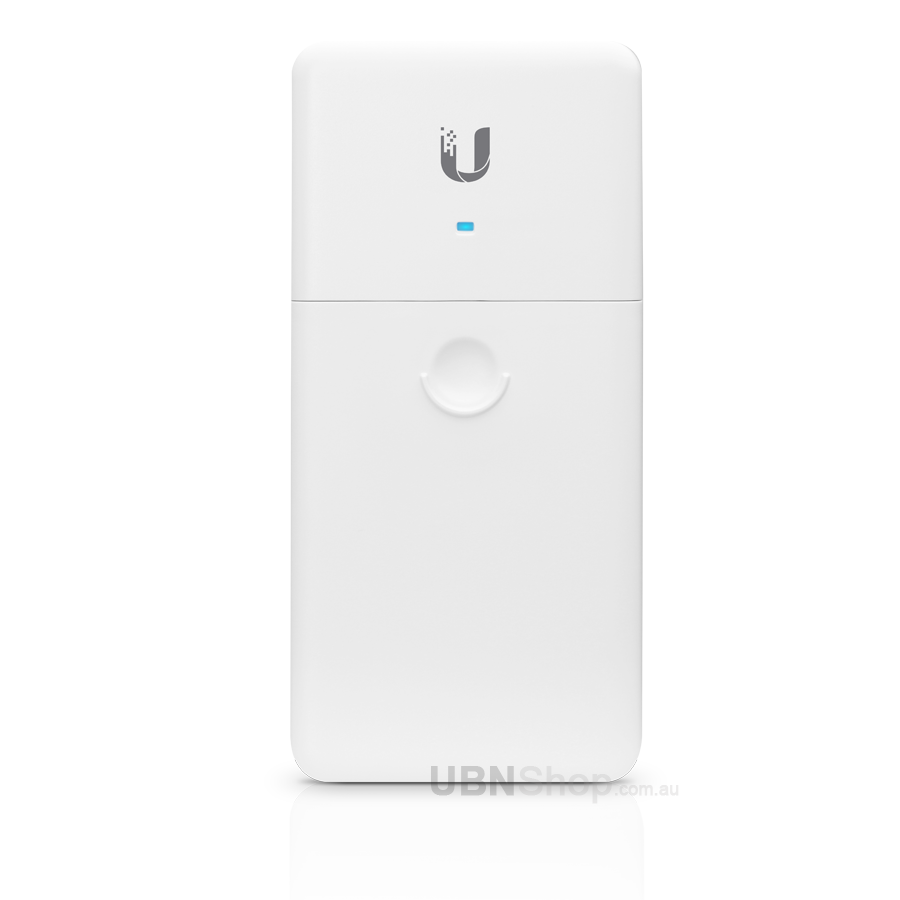

The Ubiquiti NanoSwitch is an outdoor 4-port Gigabit switch with PoE passthrough.

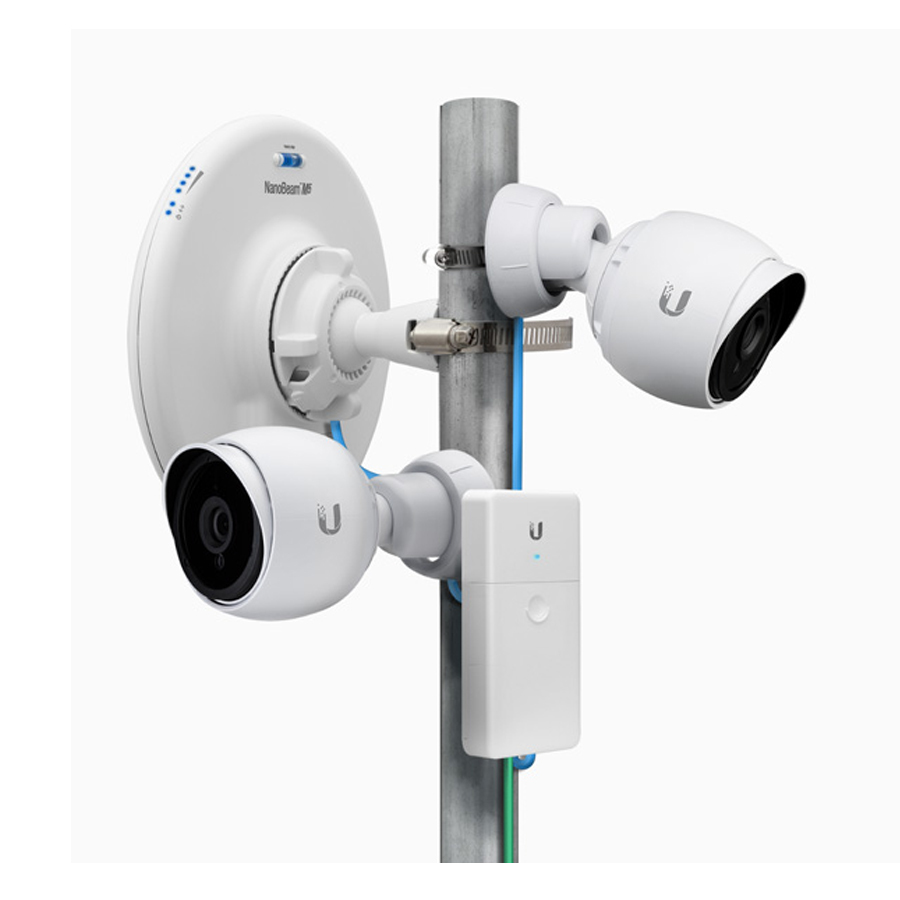

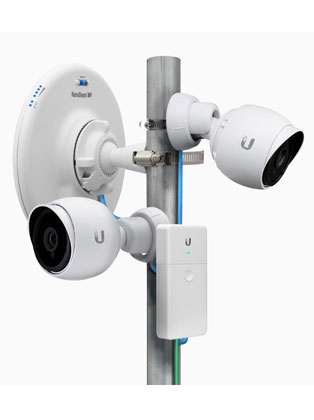

The NanoSwitch is an outdoor, 4-port Gigabit switch with PoE pass-through. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.
(N-SW)
NanoSwitch
Package Includes
- 1 x NanoSwitch
- 1 x Self-Tapping Screw
- 2 x Metal Straps
- Quick Start Guide
NanoSwitch - Specifications
| N-SW | |
|---|---|
| Dimensions | 196.4*93.5*32.4mm 7.73*3.68*1.28inch |
| Weight | 269g 9.5oz |
| Enclosure Characteristics | White Polycarbonate |
| HARDWARE | |
| Processor | RTL8367N-VB |
| On-Board Flash Storage | 4Kbits |
| Total Non-Blocking Line Rate | 4Gbps |
| TYP. Power Consumption | 1.5W |
| Power Method | Passive 24V PoE-in |
| Supported Voltage Range | Passive 24V PoE-in |

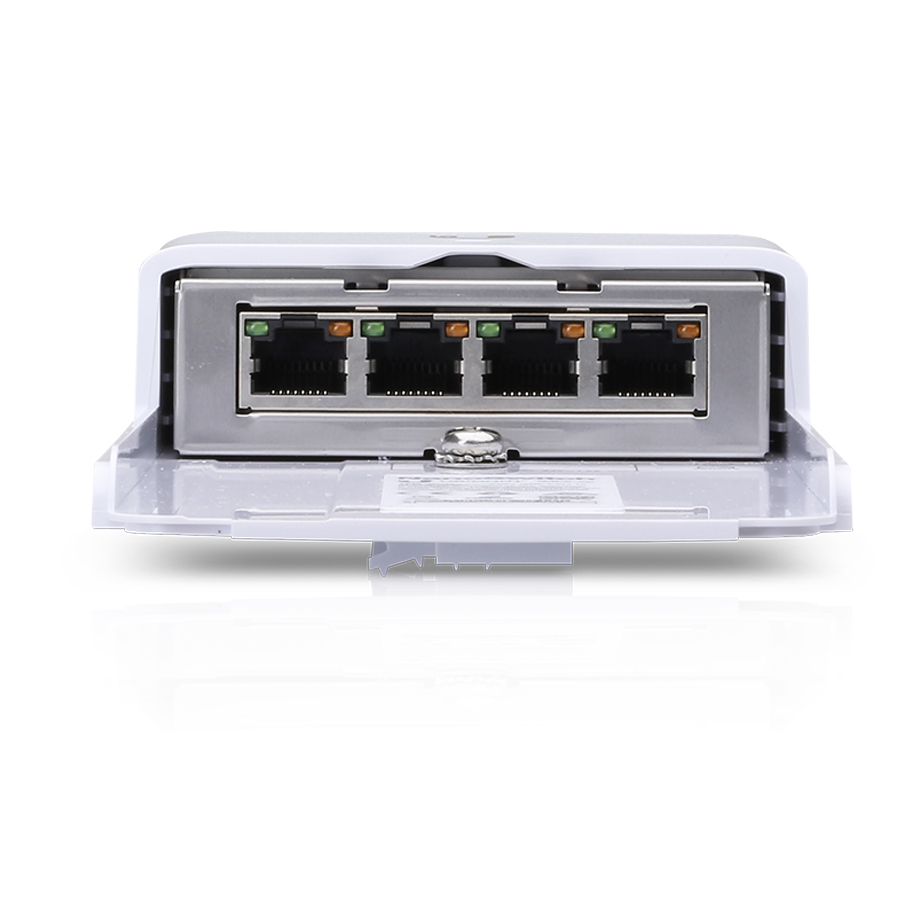

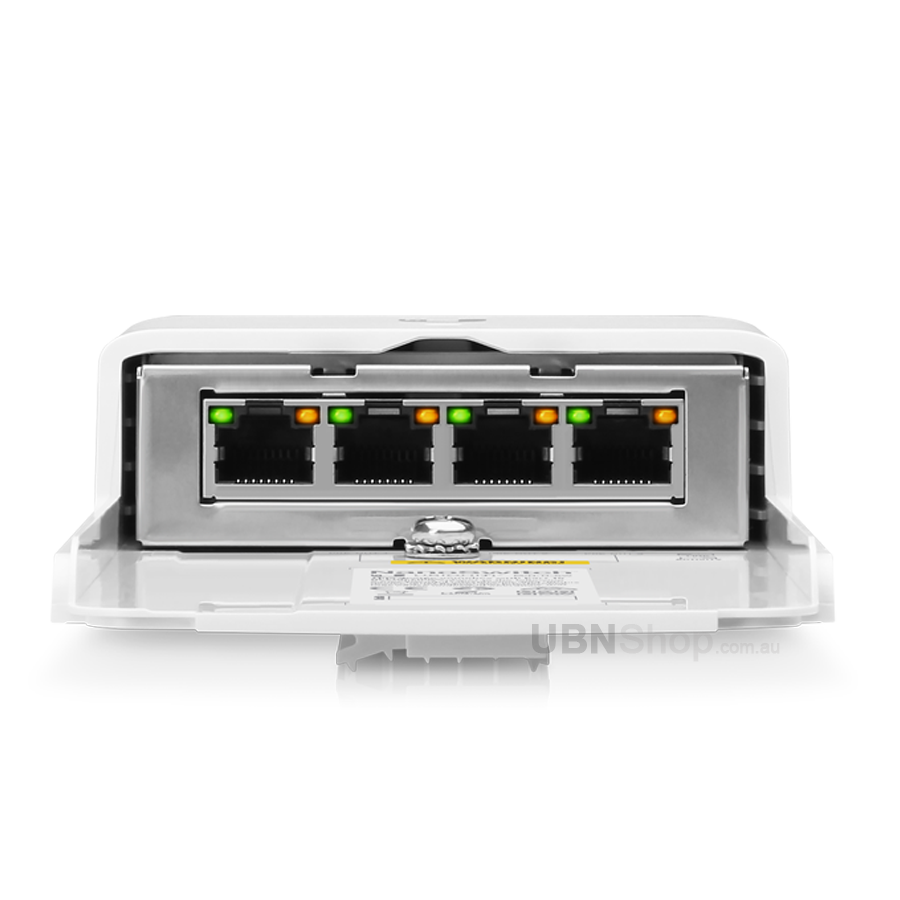

| Networking Interfaces | (4) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | Passive 24V PoE-in |
| Max PoE+ Wattage per Port by PSE | 24V@1A per port / Total 24V@1.5A for three ports |
| Passive PoE Max wattage per port | 24W per port / Total 36W for three ports |
| Operating Temperature | -30C ~ 70C |
| Operating Humidity | 5 to 95% Non-Condensing |
Shipping Specifications
| SKU | N-SW |
| Model # | N-SW |
| Barcode # | 817882021708 |
| Brand | Ubiquiti |
| Shipping Weight | 0.3300kg |
| Shipping Width | 0.126m |
| Shipping Height | 0.065m |
| Shipping Length | 0.245m |
| Shipping Cubic | 0.002007000m3 |
| Unit Of Measure | ea |
NanoSwitch - Documents
Ubiquiti Nano Switch Datasheet
Ubiquiti nano Switch Quick Start GuideBe The First To Review This Product!
