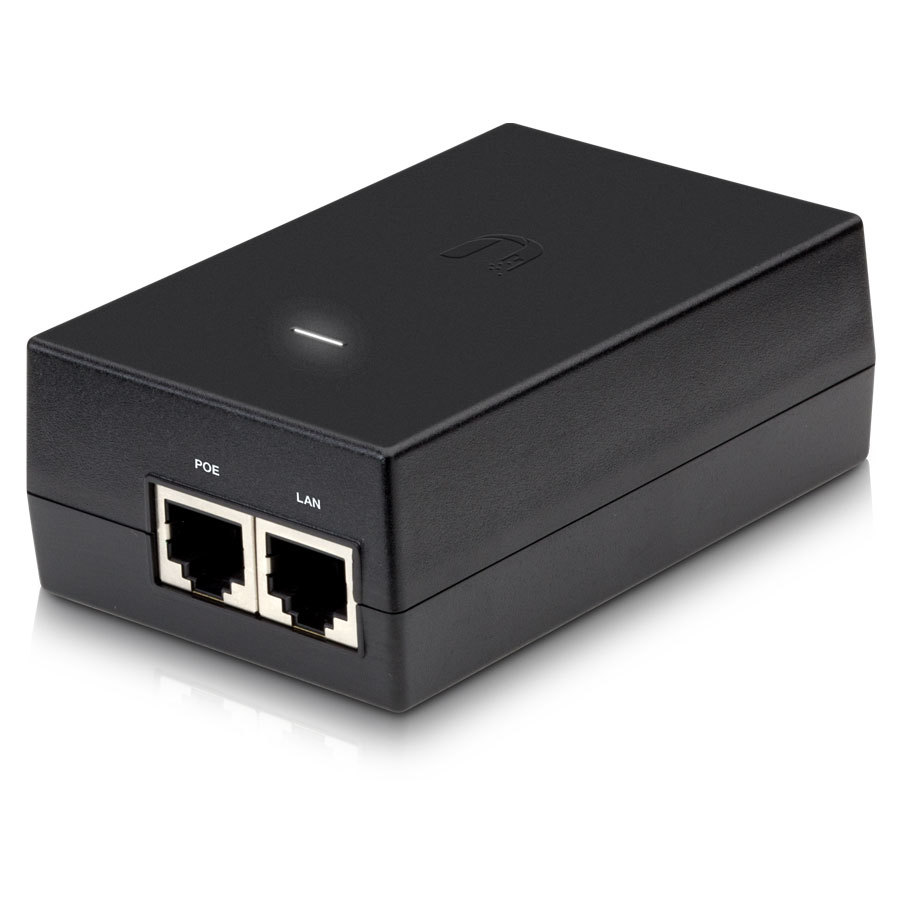

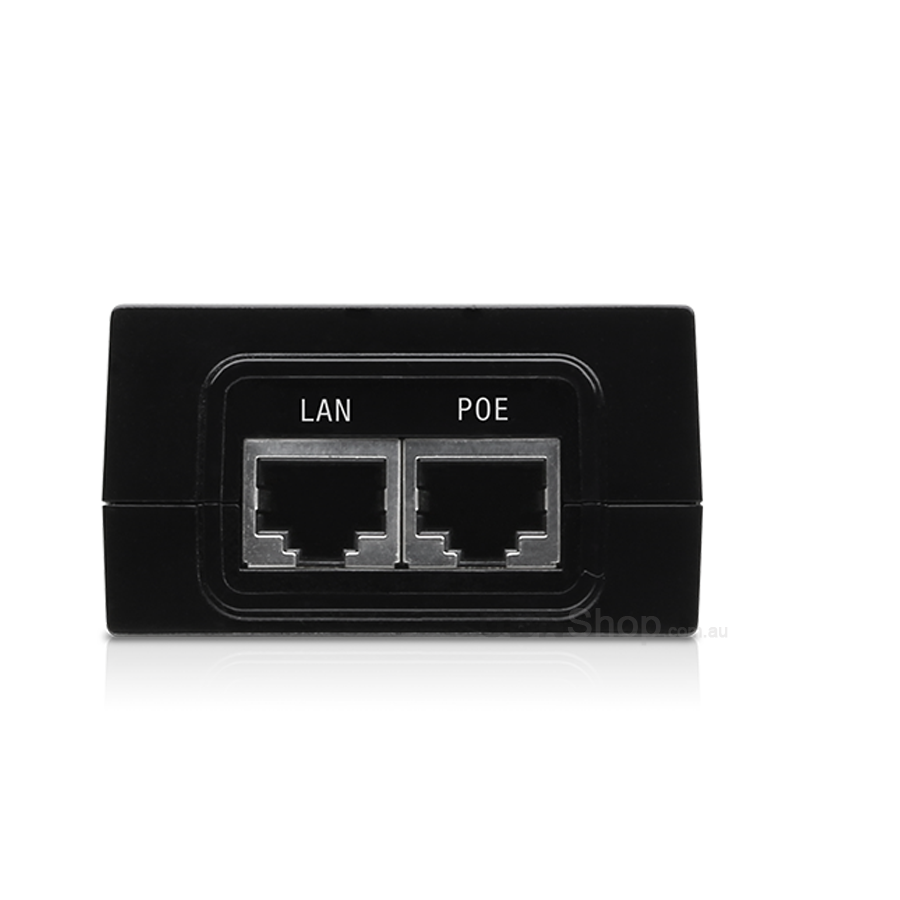

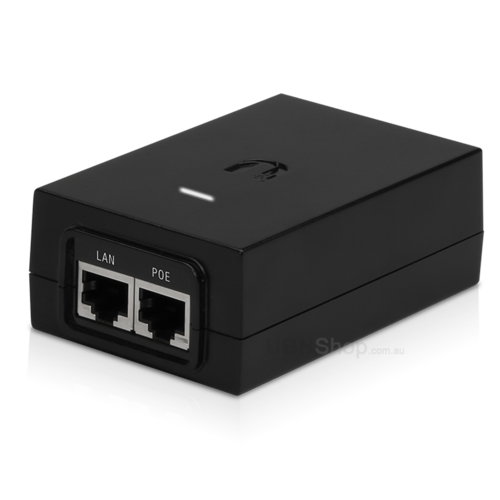

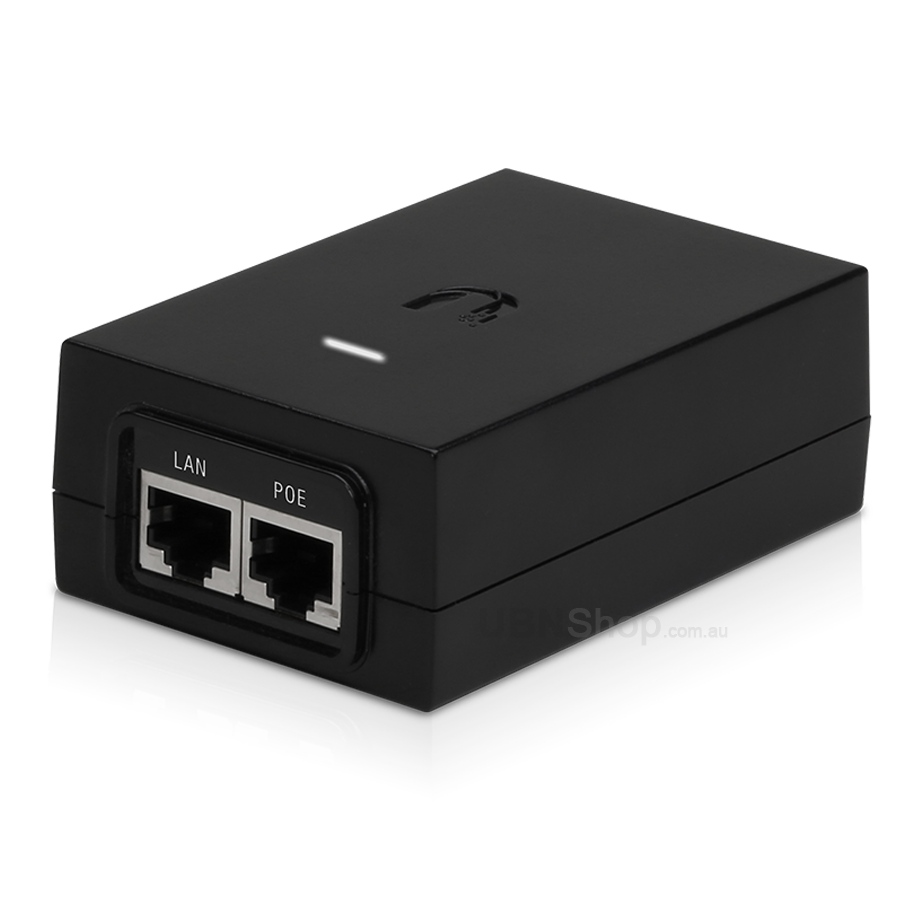

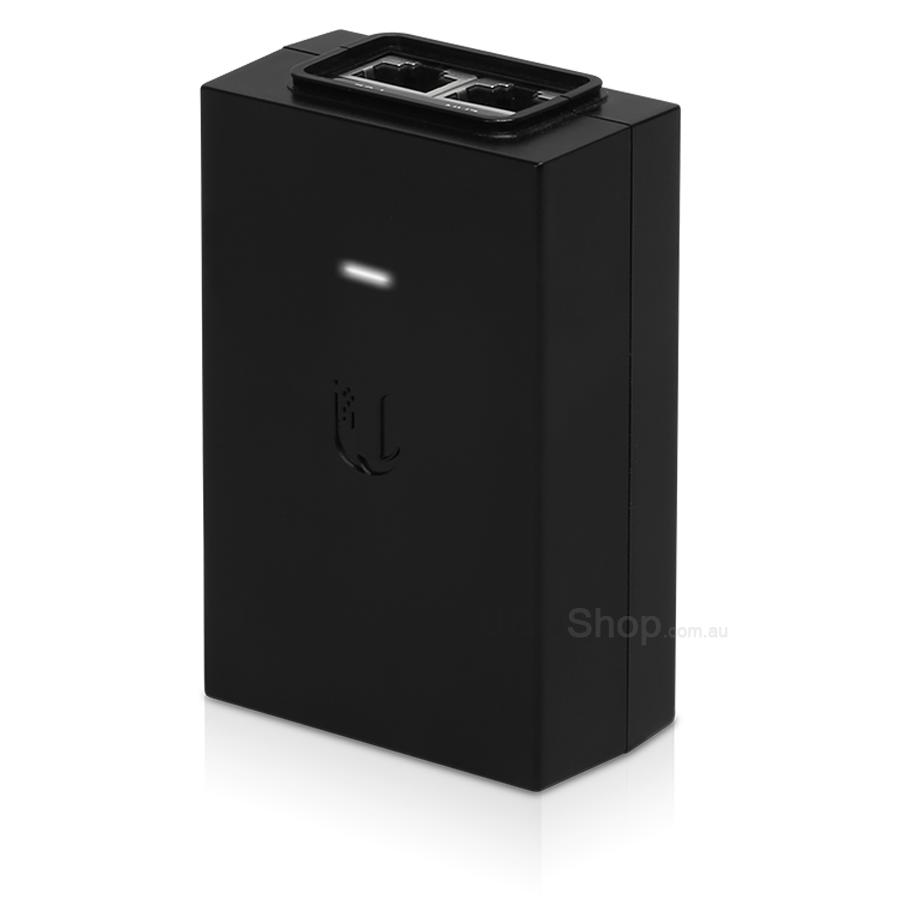

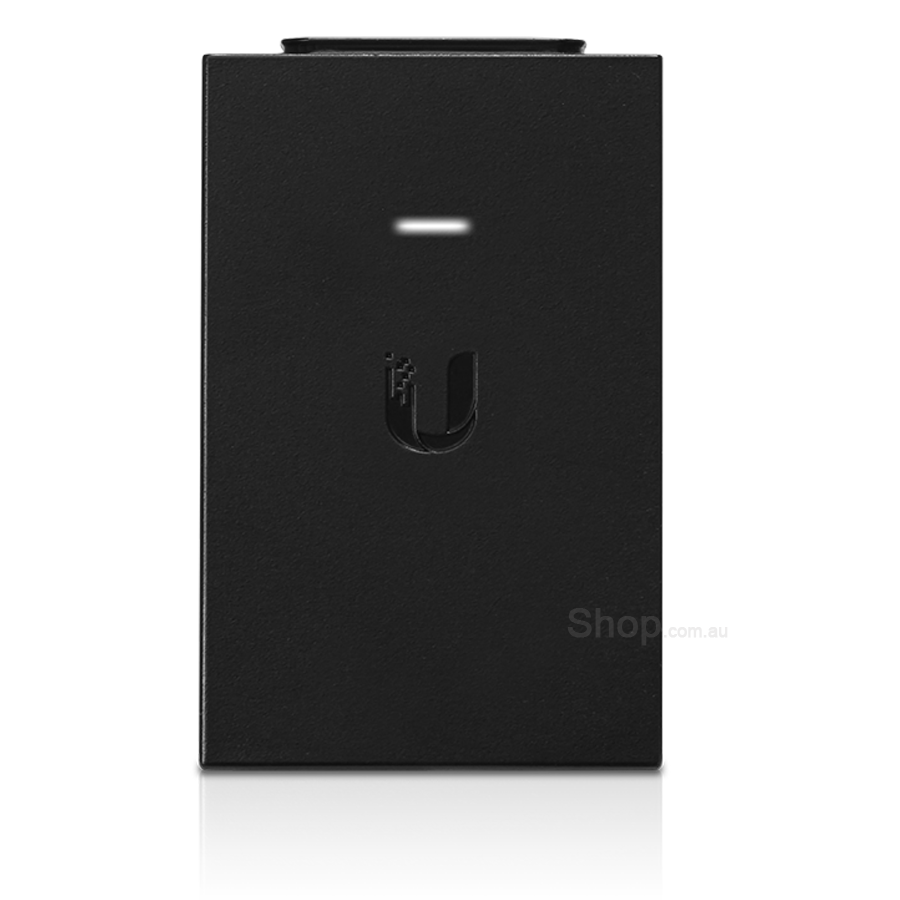

Power over Ethernet Adapter 48VDC 24W Gigabit



Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:

  • airFiber®
  • EdgeMAX®
  • mFi®
  • UniFi® AP
  • UniFi Video® / airVision®
  • UniFi LED
  • UFiber

* Check product specifications to verify PoE compatibility



Ubiquiti POE Injector, 48VDC, 24W Gigabit - Documents



Ubiquiti POE Injector, 48VDC, 24W Gigabit

Ubiquiti POE Injector, 48VDC, 24W Gigabit - Specifications



Model POE48-24W-G
Dimensions 92 x 60 x 33 mm (3.62 x 2.36 x 1.30")
Weight 158.5 g (5.59 oz)
Output Voltage 48VDC @ 0.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current <65A Peak @ 120VAC, <130A Peak @ 230VAC
Efficiency 80+%
Output Ripple 1% Max
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL

Shipping Specifications

SKU POE-48-24W-G
Model # POE-48-24W-G
Barcode # 810354021220
Brand Ubiquiti
Shipping Weight 0.1650kg
Shipping Width 0.060m
Shipping Height 0.035m
Shipping Length 0.090m
Shipping Cubic 0.000189000m3
Unit Of Measure ea
