Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink
E7
$1,271.16
Sold Out
Coming Soon. Contact Us for Pre-Order
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

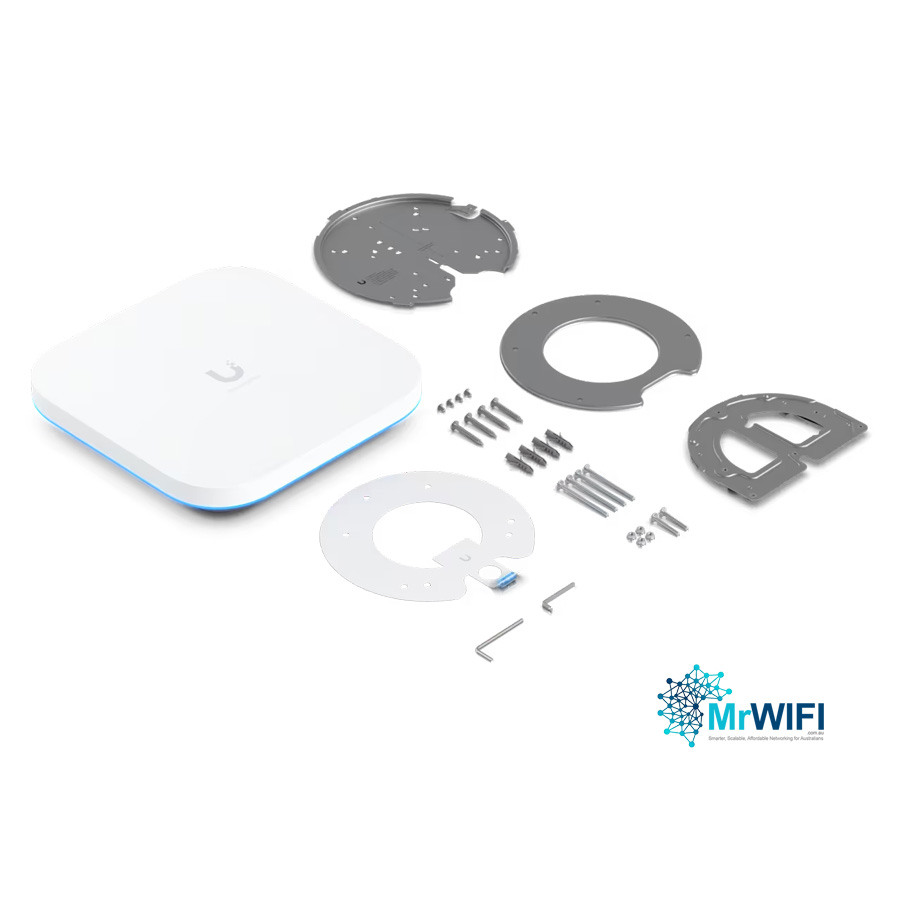

What's In The Box? E7
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.- Specifications:
| Parameter | Specification |
| Dimensions | 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7") |
| Weight | 1.8 kg (4 lb) |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 10 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 1000+ |
| Uplink / Interfaces | (1) 10 GbE RJ45 port, (1) 1 GbE RJ45 port |
| Mounting | Ceiling, Wall, VESA (Pro Mount Included) |
| Power Method | PoE++ |
| MIMO |
* 6 GHz: 4 x 4 (DL/UL MU-MIMO) * 5 GHz: 4 x 4 (DL/UL MU-MIMO) * 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
* 6 GHz: 11.5 Gbps (BW320) * 5 GHz: 8.6 Gbps (BW240) * 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
* 6 GHz: 6 dBi * 5 GHz: 6 dBi * 2.4 GHz: 5 dBi |
| Max. TX Power |
* 6 GHz: 24 dBm / 30 dBm * 5 GHz: 30 dBm * 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Standard | Data Rate & Modulation |
| 802.11be (WiFi 7) | 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Feature | Support |
| Wireless Meshing & Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming & 802.11k RRM | ✓ |
| Zero-Wait DFS & Advanced Radio Management | ✓ |
| Real-Time Spectral Analysis | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal (Custom Landing Page) | ✓ |
| Voucher & Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication & Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting & Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Parameter | Specification |
| Max. Power Consumption | 43W |
| Supported Voltage Range | 42.5–57V DC |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 06372-24-08356 |
| Operating Frequency (US/CA) |
* 2400 - 2472 MHz * U-NII-1: 5150 - 5250 MHz * U-NII-2A: 5250 - 5350 MHz * U-NII-2C: 5470 - 5725 MHz * U-NII-3: 5725 - 5850 MHz * U-NII-5 to U-NII-8: 5925 - 7125 MHz |
| Operating Frequency (Worldwide) |
* 2400 - 2483.5 MHz * 5150 - 5850 MHz * 5925 - 7125 MHz |
| Ambient Operating Temp. | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application | Minimum Version Required |
| UniFi Network Application | Version 9.2.87 and later |
| UniFi Mobile App (iOS™) | Version 10.24.1 and later |
| UniFi Mobile App (Android™) | Version 10.25.2 and later |
Shipping Specifications | |
| SKU | |
| SKU | E7 |
| Model # | E7 |
| Barcode # | 810084694664 |
| Brand | Ubiquiti |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.310m |
| Shipping Height | 0.120m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.011160000m3 |
| Unit Of Measure | ea |
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.- Documents
Datasheet Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
