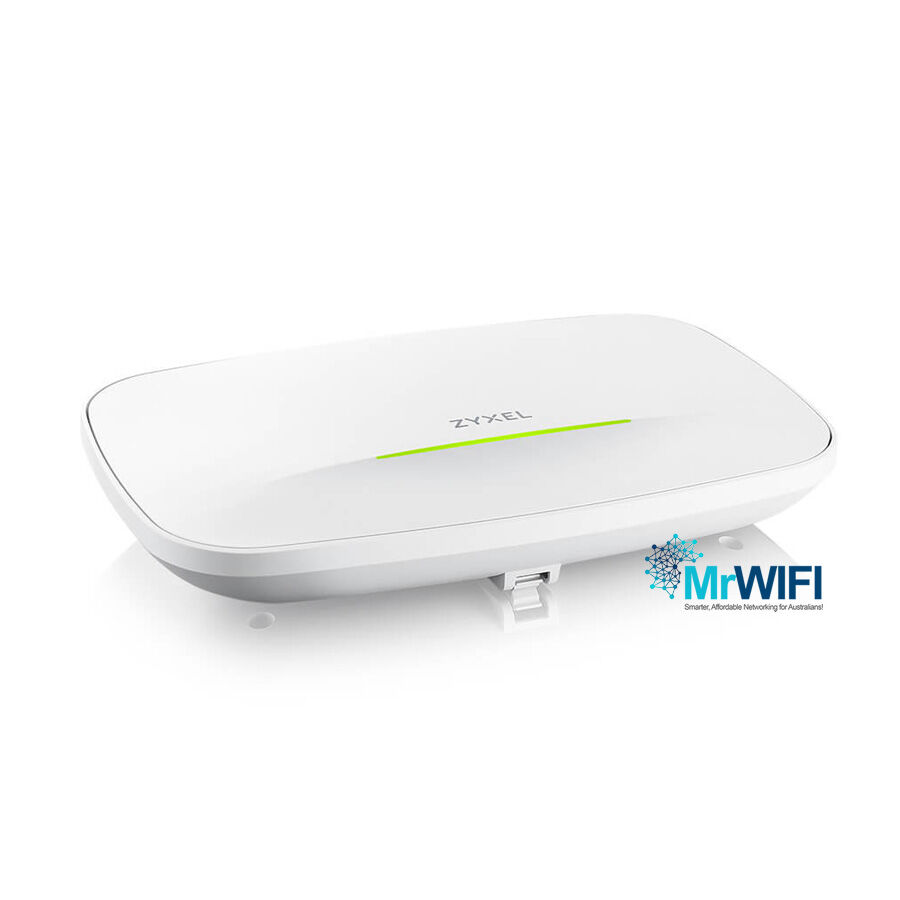

BE6500 4-Stream WiFi 7 Dual-Radio NebulaFlex Access Point
ZYX-NWA110BE
BE6500 4-Stream WiFi 7 Dual-Radio NebulaFlex Access Point
Meet the NWA110BE: a high-performance access point with BandFlex radio design that harnesses the full power of WiFi 7. It combines easy setup and flexibility to future-proof your small/home business networks.
The BE6500 (2.4GHz: 2×2:2, 5 or 6GHz: 4×4:2) dual-radio access point offers blazingly fast WiFi 7 speeds of up to 6.5Gbps, ensuring lower latency for real-time responsiveness.
With two additional antennas in the 5GHz/6GHz bands compared to other dual-radio (2×2+2×2) AP models on the market, it extends coverage range further and boosts performance.
Its flexible BandFlex radio can support either 5GHz or 6GHz by configuration, making it the most economical choice to fit into your existing 5GHz coverage as well as futureproofing the use of 6GHz.
Coupled with Zyxel Nebula’s extensive suite of management and security innovations, it guarantees robust connectivity and reliability for today’s
modern office demands.
The NWA110BE, equipped with NebulaFlex technology, offers users complete flexibility to seamlessly switch between standalone mode or the intuitive Nebula cloud-managed mode as needed.
What's In The Box? ZYX-NWA110BE
BE6500 4-Stream WiFi 7 Dual-Radio NebulaFlex Access Point- Specifications:
| Category | Parameter | Specification Details |
| Wireless Standards | Protocol Support | IEEE 802.11 a/b/g/n/ac/ax/be |
| MIMO / MU-MIMO | Supported | |
| Wireless Speed | 2.4 GHz | 688 Mbps |
| 5 GHz | 4,324 Mbps | |
| 6 GHz | 5,764 Mbps | |
| Frequency Bands | 2.4 GHz |
USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz |
| 5 GHz |
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
|
| 6 GHz |
USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz Europe (ETSI): 5.925 to 6.425 GHz |
|
| Bandwidth | Channel Widths | 20-, 40-, 80-, 160-, 240-, and 320-MHz |
| Transmit Power | Conducted Output ($^{*1}$) |
US (2.4/5/6 GHz): 26 / 28 / 25 dBm EU (2.4/5/6 GHz): 19 / 26 / 22 dBm |
| RF Design | Antenna Type | Internal Antenna |
| Antenna Gain & Streams |
2.4 GHz: 1.49 dBi, 2x2:2SS 5 GHz: 2.78 dBi, 4x4:2SS 6 GHz: 3.17 dBi, 4x4:2SS |
|
| Rx Sensitivity | Minimum receive sensitivity up to -99 dBm |
| Category | Feature | Support / Details |
| WLAN Features | Optimization & Roaming | Band steering, DCS, Load balancing, Advanced cellular coexistence |
| Mesh Support ($^{*2}$) | WDS / Mesh | |
| Fast Roaming | Pre-authentication, PMK caching, and 802.11r/k/v | |
| Security | Encryption | WEP, WPA, WPA2, WPA3 |
| Authentication | IEEE 802.1X, RADIUS authentication | |
| Access Management | L2-isolation, MAC filtering, Rogue AP detection | |
| Networking | Core Protocols | IPv6, VLANs, WMM, U-APSD |
| Category | Component | Details |
| Management Modes | Operating Mode | Cloud managed / Standalone |
| Interfaces | Web UI / CLI, SNMP | |
| ZON Utility Features | Discovery Support | Zyxel switches, APs, and gateways |
| Centralized / Batch Actions | IP configuration, IP renew, Device reboot, Device locating, Web GUI access, Firmware upgrade, Password configuration |
| Category | Metric | Specification Details |
| Physical Items | Device Dimensions | 250 x 160 x 47 mm / 9.84 x 6.30 x 1.85 in |
| Device Weight | 810 g / 1.79 lb | |
| Packaging | Packaging Dimensions | 279.5 x 180.5 x 66 mm / 11.00 x 7.11 x 2.60 in |
| Packaging Weight | 1,035 g / 2.28 lb | |
| Accessories & Life | Included Accessories | Mount plate, Mounting screws |
| Reliability (MTBF) | 691,722 hours | |
| Interfaces & Power | Ethernet Port | 1 x 1/2.5GbE LAN |
| Power Options |
PoE (802.3at): Power draw 21.5 W DC Input: USB PD 15 VDC, 2A (Type C) |
|
| Power Behavior Modes |
IEEE 802.3af: No Wireless IEEE 802.3at / 802.3bt: Unrestricted |
|
| Environmental | Operating Limits |
Temperature: 0°C to 50°C (32°F to 122°F) Humidity: 10% to 95% (non-condensing) |
| Storage Limits |
Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 10% to 90% (non-condensing) |
| Type | Regulatory Standards |
| Radio | FCC Part 15C, FCC Part 15E, FCC Part 2.1091, ETSI EN 300 328, EN 301 893, Draft EN 303 687, EN 50385, EN 50665, EN IEC 62311, LP0002 |
| EMC | FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55032, EN55035, EN61000-3-2/-3, EN60601-1-2, BSMI CNS15936 |
| Safety | EN 62368-1, IEC 62368-1, BSMI CNS15598-1 |
Notes:
-
$^{*1}$ Maximum transmit power is limited by local regulatory settings.
-
$^{*2}$ WDS, ZyMesh, Smart Mesh, Industry’s Open Mesh, and Easy Mesh are different mesh systems that do not interoperate with one another.
-
All specifications are subject to change without notice.
