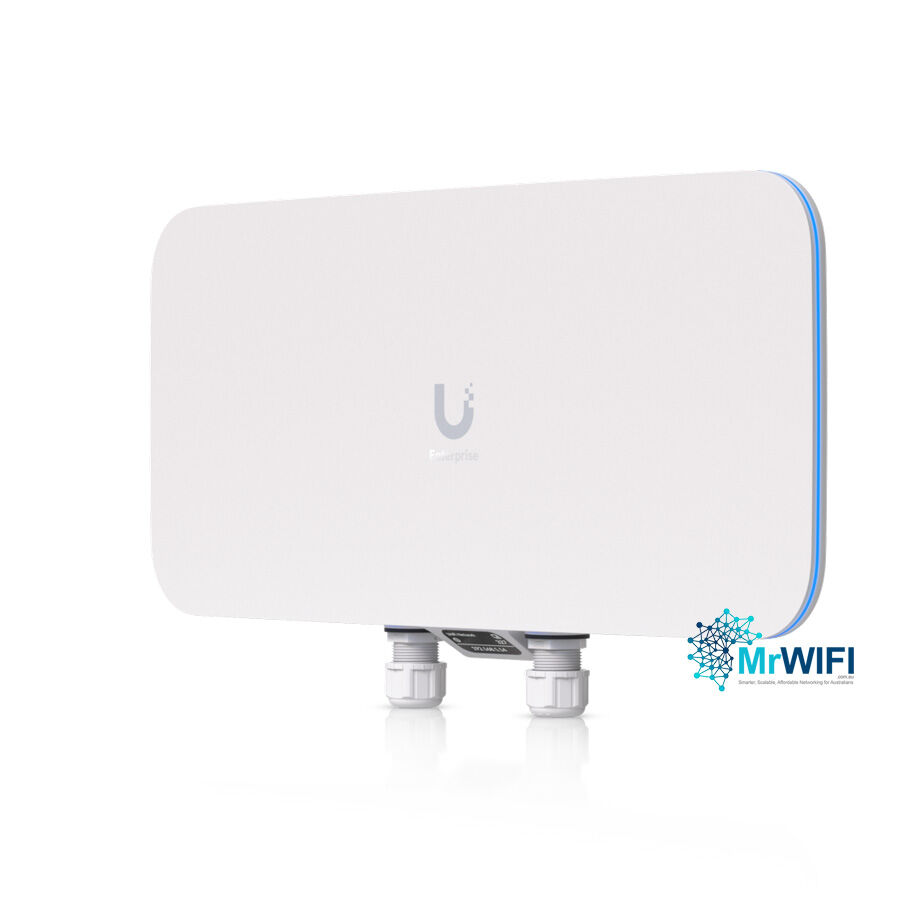

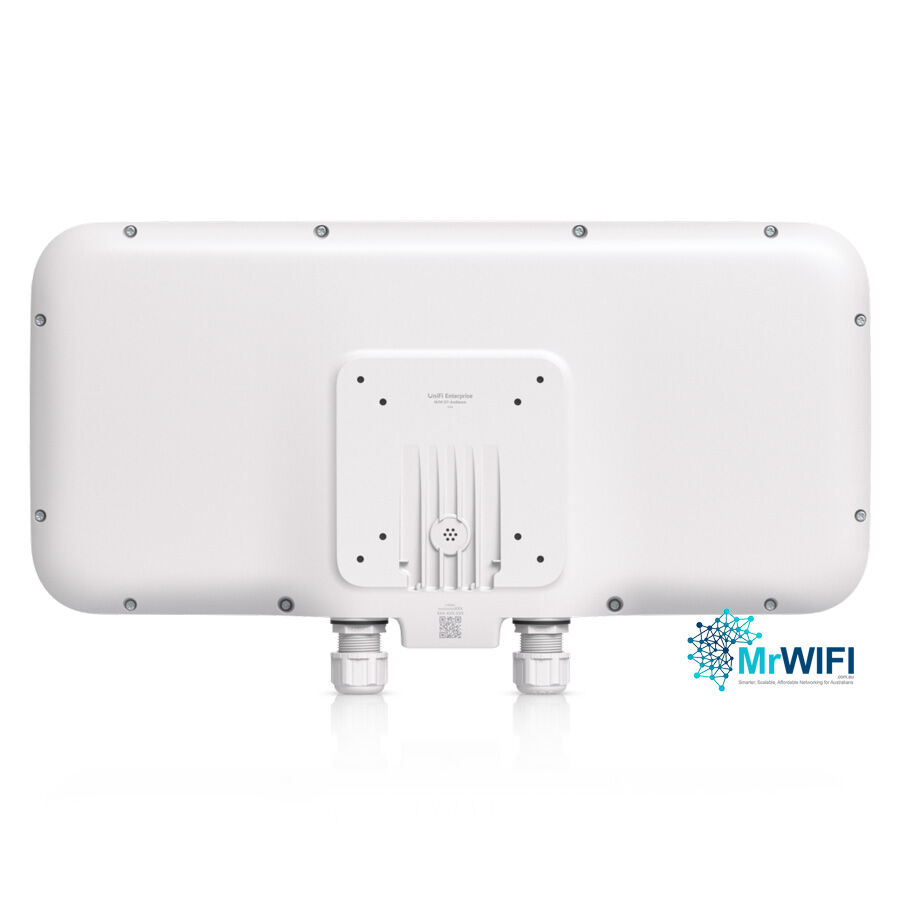

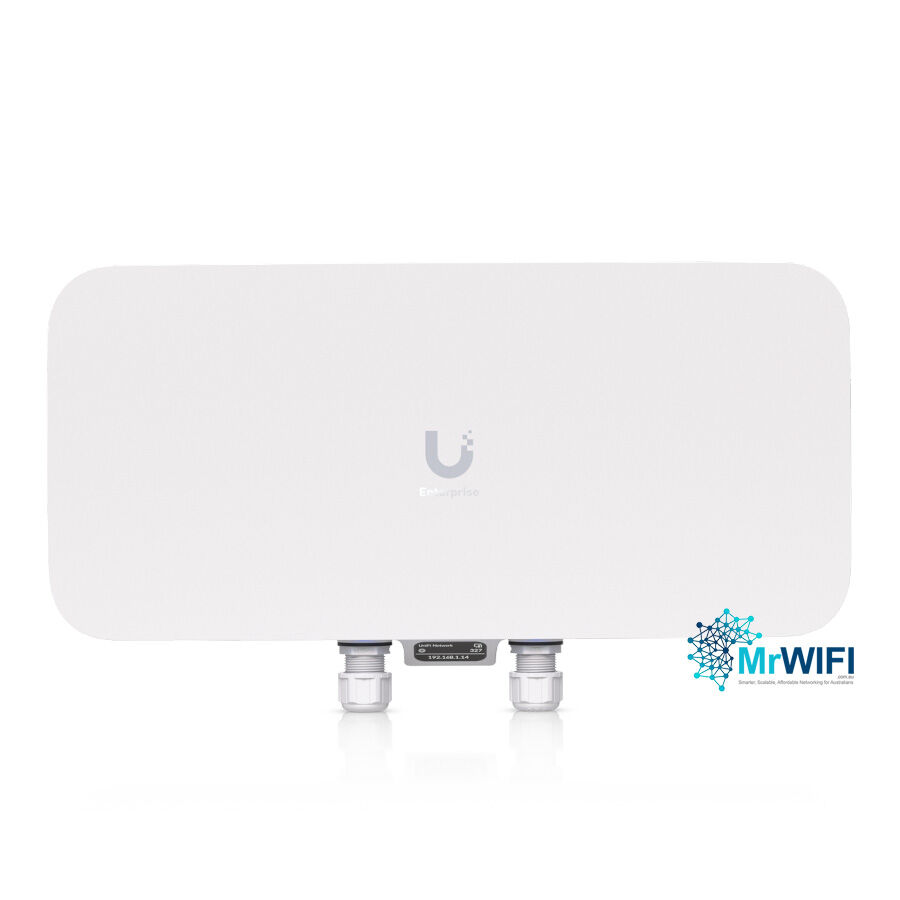

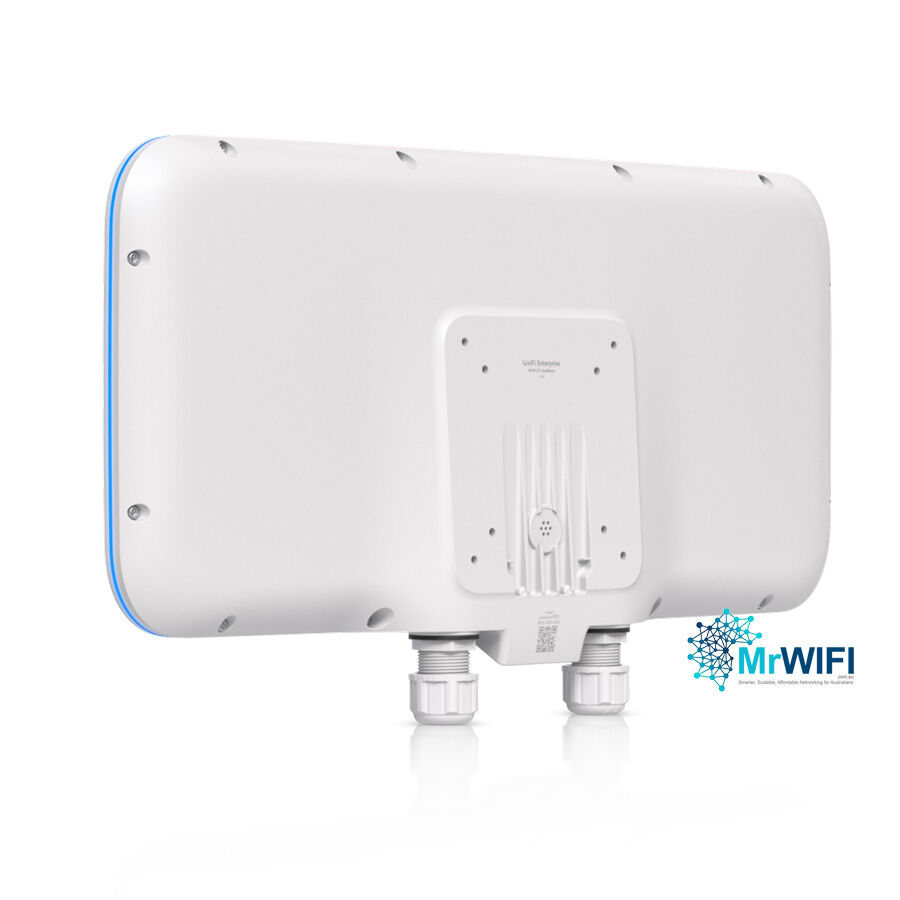

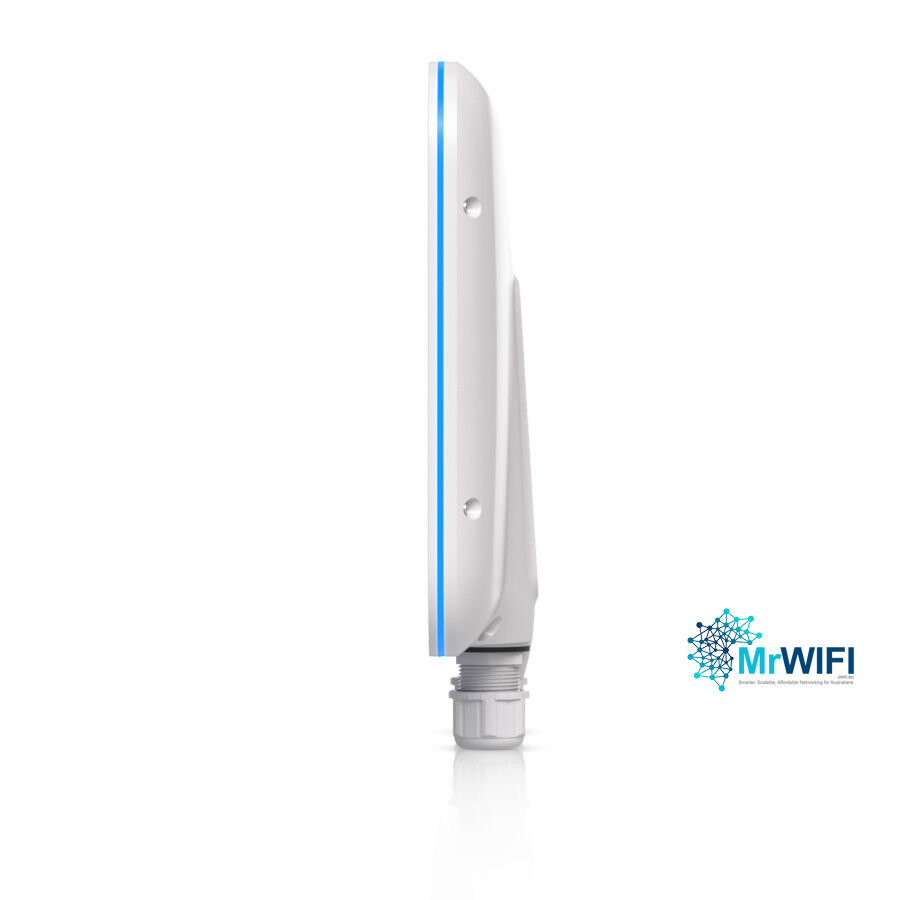

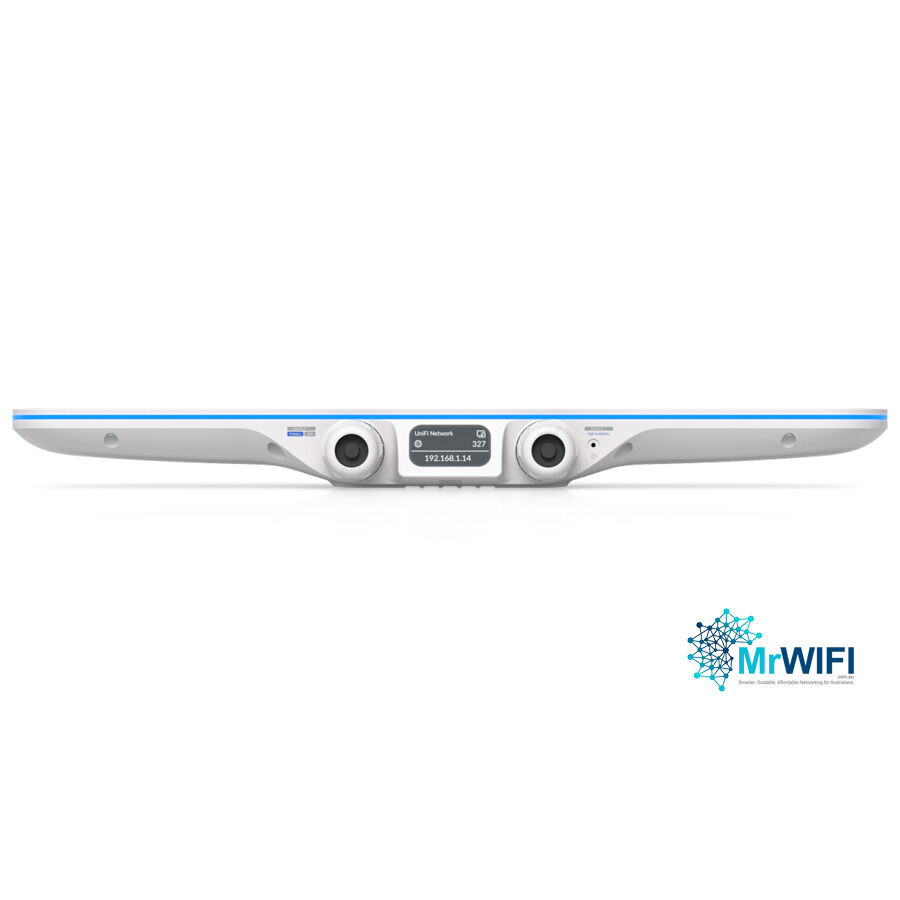

Unifi E7 Audience Enterprise Grade Access Point High Density
E7-AUDIENCE
$5,702.40
In Stock
Unifi E7 Audience Enterprise Grade Access Point High Density
Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
Note. 6 GHz operation is supported in these countries.
Long-range 6 GHz performance with AFC available in FCC/IC region only.
1 xUnifi E7-Audience Wifi Access Point High Density
Overview
|
Dimensions: |
Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9") |
| WiFi Standard: | WiFi 7 |
| Spatial Streams: | 12 |
|
Coverage Area: |
465 m² (5,000 ft²) |
| Max. Client Count: | 1500+ |
| Uplink: | 10 GbE 1 GbE |
| Mounting: | Wall, Pole (Mounts Included) VESA (Optional) |
|
Weatherproofing: |
IP68 |
| Power Method: | PoE++ |
| Performance | |
| MIMO | |
| 6 GHz | Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| Max. Data Rate | |
| 6 GHz | Low Band: 11.5 Gbps (BW320) High Band: 11.5 Gbps (BW320) |
| 5 GHz | 8.6 Gbps (BW240) |
| Antenna Gain | |
| 6 GHz | Directional internal: 15 dBi, 50° x 50° |
| Directional internal: 11 dBi, 90° x 90° | |
| 5 GHz | Directional internal: 15 dBi, 50° x 50° |
| Directional internal: 11 dBi, 90° x 90° | |
| Max. TX Power | |
| 6 GHz | Low Band: 30 dBm (36 dBm EIRP) |
| High Band: 30 dBm (36 dBm EIRP) | |
| 5 GHz |
30 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Zero-Wait DFS | ✓ |
| Advanced Radio Management | ✓ |
| Real-Time Spectral Analysis | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
|
Captive Hotspot Portal |
|
|
✓ |
|
✓ |
|
✓ |
|
✓ |
|
✓ |
|
✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
|
WiFi Schedules |
✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | ✓ |
|
Max. Power Consumption |
51W |
|
Supported Voltage Range |
42.5—57V DC |
|
Networking Interface |
(1) 10 GbE RJ45 port (1) GbE RJ45 port |
| PRISM™ RF Filtering | ✓ |
| Weight | Device: 3.3 kg (7.3 lb) |
| With mount: 4.3 kg (9.5 lb) | |
| Wind Loading | 164.75 N at 200 km/h (37 lbf at 125 mph) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
|
Antennas |
(1) Internal with directional patterns |
|
Management |
Ethernet |
| >Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
|
Mount Material |
Aluminum alloy |
| LEDs | |
| System | R/G/B |
| Channel Bandwidth | HT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC |
| Operating Frequency | US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 5150 - 5725 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | |
|
Version 9.2.87 and later iOS™ version 10.24.1 and later Android™ version 10.25.2 and later |
| SKU | E7-AUDIENCE |
| Model # | E7-Audience |
| Barcode # | 810084694688 |
| Brand | Ubiquiti |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.266m |
| Shipping Height | 0.265m |
| Shipping Length | 0.474m |
| Shipping Cubic | 0.033412260m3 |
| Unit Of Measure | ea |
