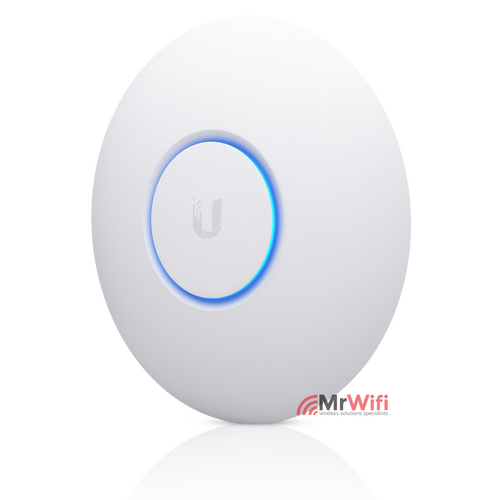

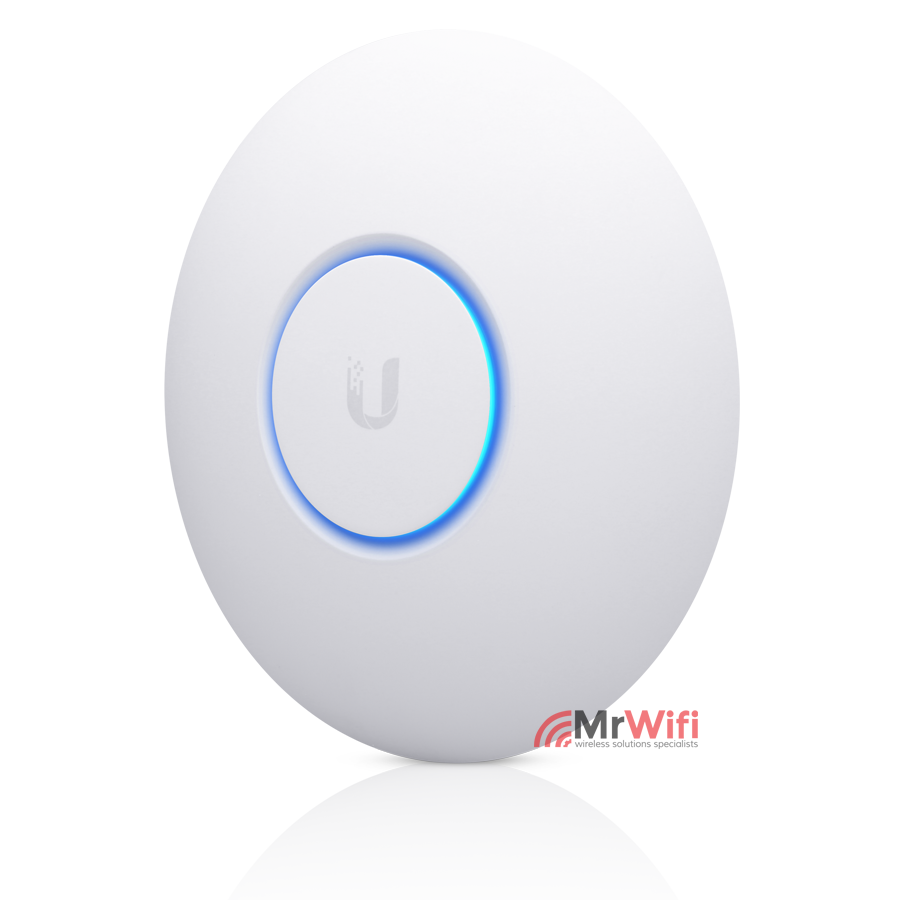

UniFi nanoHD Access Point,1733Mbps, 200+ Users

UAP-nanoHD

$360.25
Sold Out
ALTERNATE PRODUCT:
UAP-AC-PRO-
UniFI Access Point AC PRO

In Stock: YES

High‑Density Applications Powered by MU‑MIMO Technology



Deploy the UniFi nanoHD AP in high-density environments requiring maximum wireless performance and minimal footprint. The UniFi nanoHD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3af PoE compatibility. Available in single- and five‑packs.

Low-Profile Mounting
The UniFi nanoHD AP’s low‑profile ceiling mount (sold separately) allows you to seamlessly integrate the AP into its environment.

Compact Form Factor
The compact design delivers a cost-effective combination of value and performance.

LED The unique LED provisioning ring provides administrator location tracking and alerts for each device.

Power over Ethernet (PoE) Standard
The UniFi nanoHD AP can be powered by an 802.3af PoE compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately). The UniFi nanoHD AP is compatible with all UniFi PoE Switches and 48V adapters.

Superior Processing Power
The UniFi nanoHD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point.

  • 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
  • 802.3af
  • Same mount as UAP-AC-Lite.


*PoE injector is not included for 5 Packs

(UAP-NANOHD)

UniFi nanoHD

Pack Includes:

  • 1 x UniFi nanoHD Access Point
  • 1 x Mounting Plate
  • 1 x Ceiling Backing Plate
  • 4 x Plate Ceiling Screws
  • 4 x Keps Nuts
  • 4 x Wall Screws
  • 4 x Screw Anchors
  • 1 x Gigabit PoE (48V, 0.5A) with Mounting Bracket*
  • 1 x Power Cord*
  • Quick Start Guide

* Included only in the single-pack of the UAP-nanoHD

UniFi nanoHD - Specifications

UAP-HD-NANO
Dimensions 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29")
Weight
With Mounting Kits
300 g (10.6 oz)
315 g (11.1 oz)
Networking Interface (1) RJ45 GbE
Buttons (1) Reset to Defaults
Power Method 802.3af
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Operating Frequency 2.4 GHz
5 GHz
Max. TX Power
2.4 GHz
5 GHz

23 dBm
26 dBm
Antenna Gain
2.4 GHz
5 GHz

2.8 dBi
3 dBi
MIMO
2.4 GHz
5 GHz

2x2
4x4
Throughput
2.4GHz
5GHz

300 Mbps
1733 Mbps
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC

Shipping Specifications

SKU UAP-NANOHD
Model # UAP-nanoHD
Barcode # 817882024204
Brand Ubiquiti
Shipping Weight 0.3000kg
Shipping Width 0.160m
Shipping Height 0.040m
Shipping Length 0.160m
Shipping Cubic 0.001024000m3
Unit Of Measure ea
