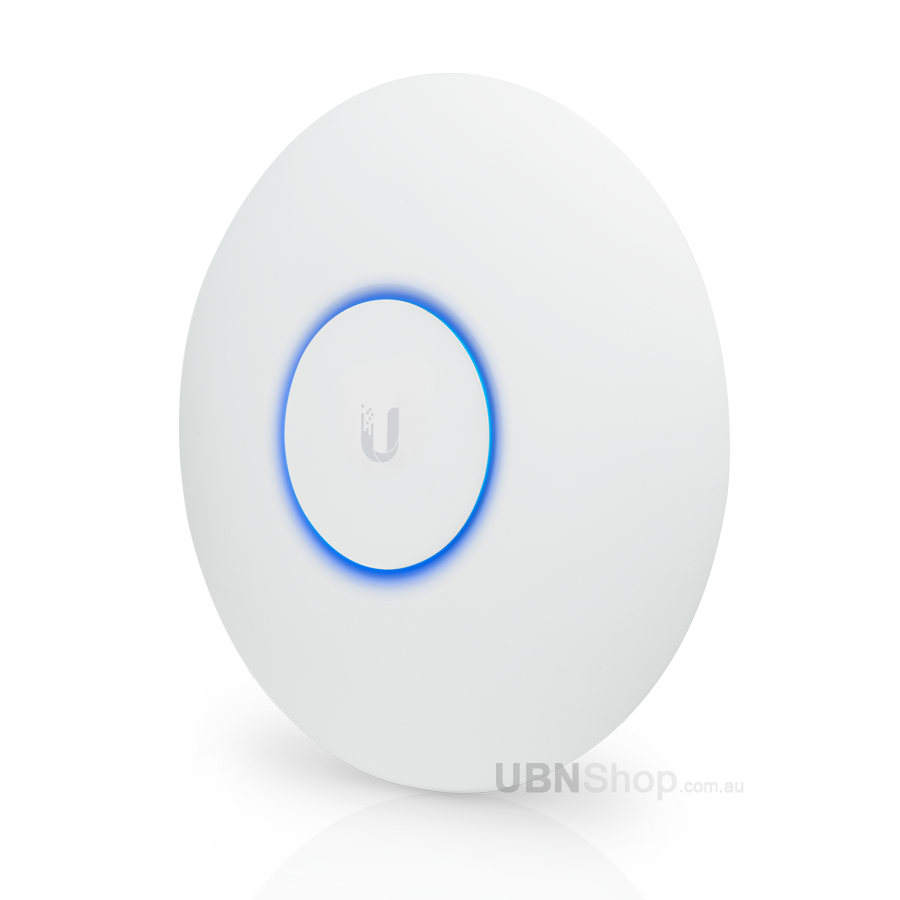

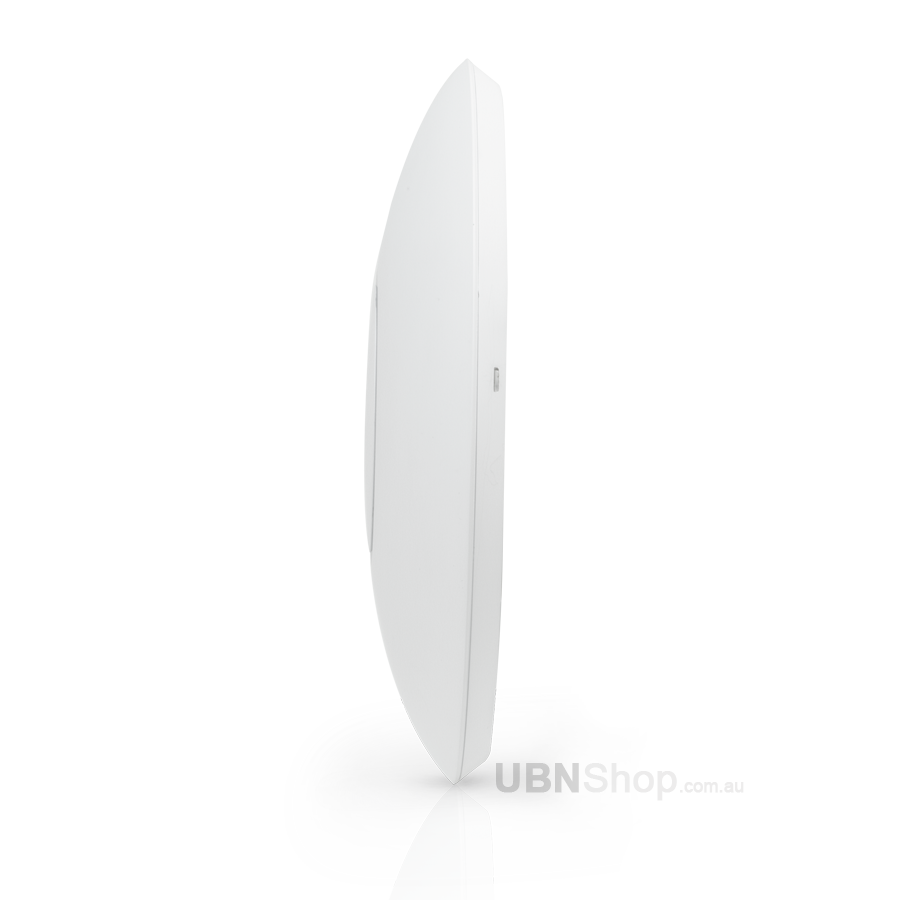

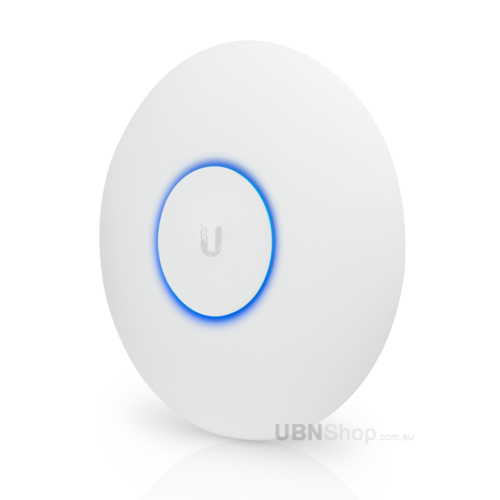

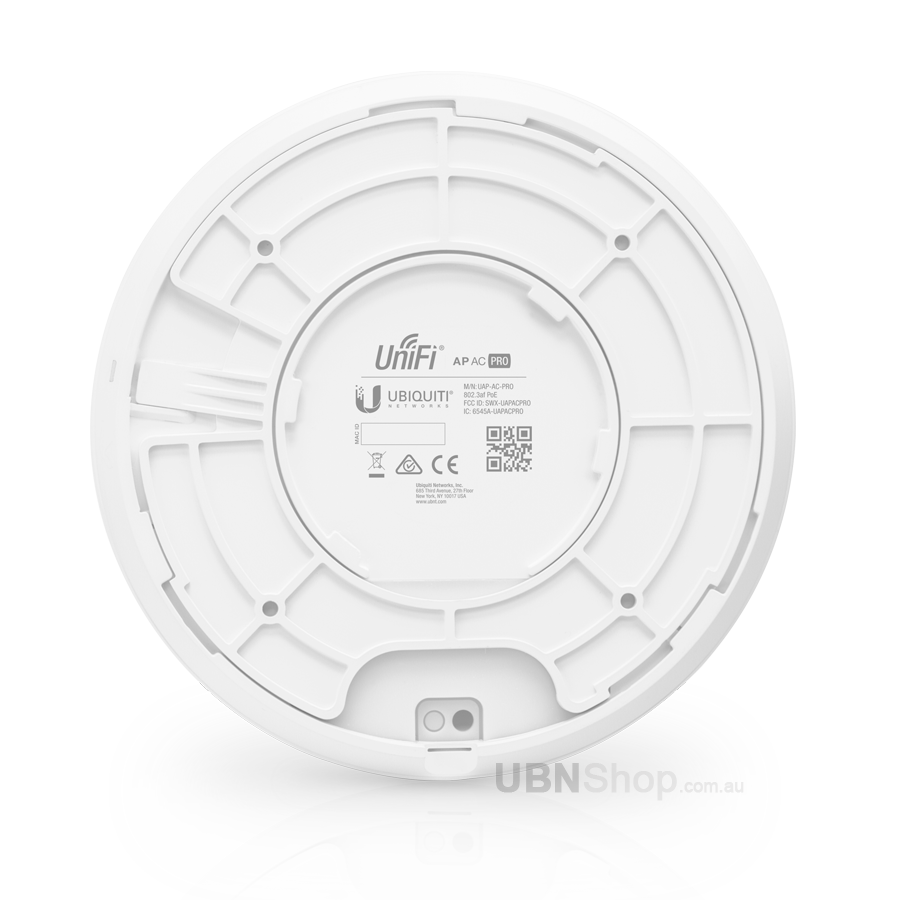

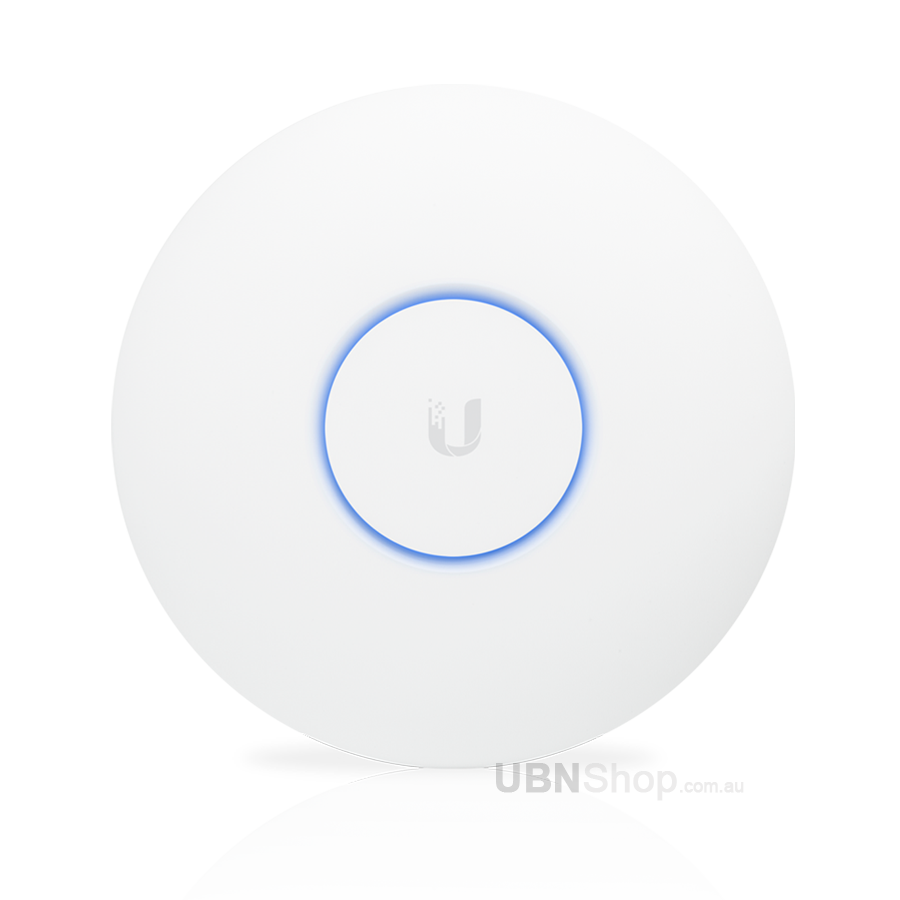

UniFI Access Point AC PRO



The UniFi AC Pro AP features the latest Wi-Fi 802.11ac, 3x3 MIMO technology in a refined industrial design and is ideal for deployment of maximum‑performance wireless networks. The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands. The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.


Description:Dual-band WiFi 5 access point designed to support high-density networks and critical system applications.


Features:

  • 140 m² (1,500 ft²) coverage
  • 250+ connected devices
  • WiFi 5 (3x3 MIMO)
  • Powered using PoE*

* Included only in the single-pack of the UAP-AC-PRO



What's In The Box? UAP-AC-PRO



  • 1 x UniFi AC PRO Access Point
  • 1 x Mounting Plate
  • 1 x Ceiling Backing Plate
  • 4 x Plate Ceiling Screws
  • 4 x Keps Nuts
  • 4 x Wall Screws
  • 4 x Screw Anchors
  • 1 x Gigabit PoE* (48V, 0.5A)
  • 1 x Power Cord*
  • Quick Start Guide

* Included only in the single-pack of the UAP-AC-PRO

UniFI Access Point AC PRO- Specifications:

UniFi AC PRO - Specifications

UNIFI
Dimensions 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38")
Weight 350 g (12.4 oz), 450 g (15.9 oz) with Mounting Kits

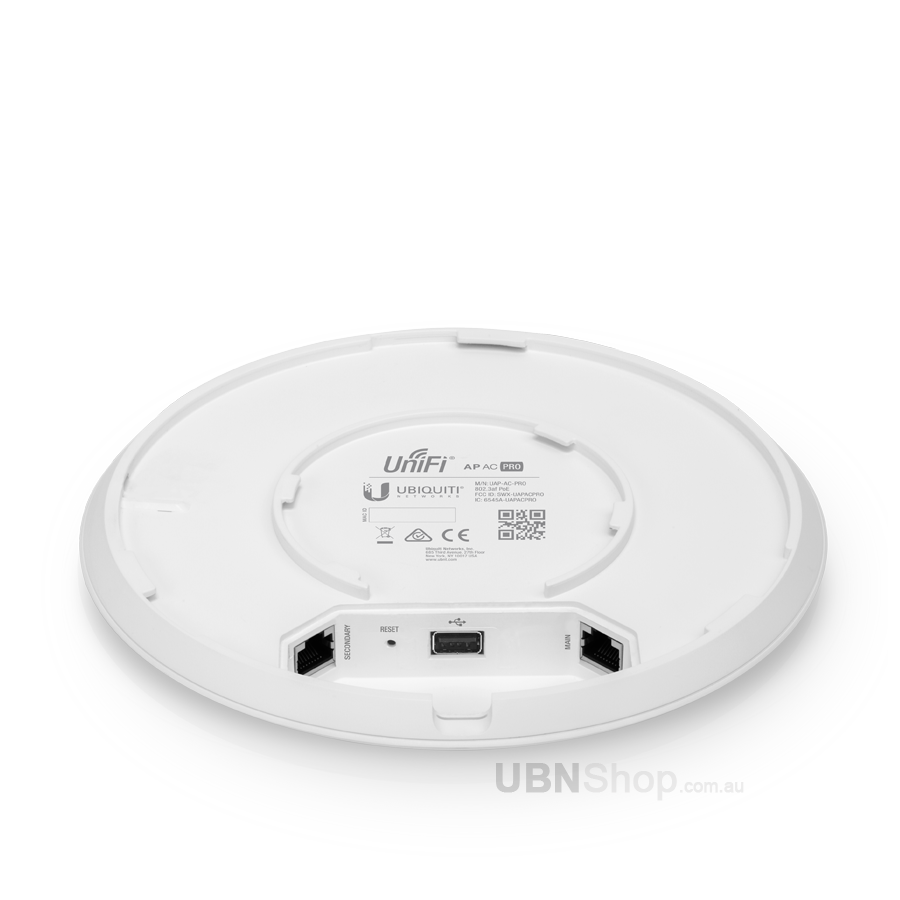

Networking Interface (2) 10/100/1000 Ethernet Ports
Ports (1) USB 2.0 Port
Buttons Reset
Antennas (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Power Method Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC)
Power Supply Included with Single Pack ONLY
Maximum Power Consumption 9W
Max TX Power 22 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
ADVANCED TRAFFIC MANAGEMENT
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
SUPPORTED DATA RATES (MBPS)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Shipping Specifications

Shipping Specifications

SKU
SKU UAP-AC-PRO
Model # UAP-AC-PRO
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.8000kg
Shipping Width 0.229m
Shipping Height 0.098m
Shipping Length 0.240m
Shipping Cubic 0.005386000m3
Unit Of Measure ea
