Ubiquiti UniFi USW-Ultra-60W | Compact 8-Port Layer 2 Gigabit PoE Switch



The Ubiquiti Ultra 60W Switch is a highly versatile, compact Layer 2 managed switch designed for tight spaces and efficient power distribution. Equipped with 8 Gigabit Ethernet ports, it provides 7 PoE+ output ports to easily run your downstream UniFi Access Points and Protect Cameras.

With the included 60W AC external adapter, this switch delivers a 52W total PoE budget. Alternatively, it can be powered via an upstream PoE++ input, providing up to a 42W budget for total deployment flexibility. Managed via the centralized UniFi Network Application (Version 8.0.7 or later), it supports advanced Layer 2 features like port isolation, storm control, and VLAN tagging. Its tiny form factor allows for subtle wall, desktop, or magnetic mounting layouts.

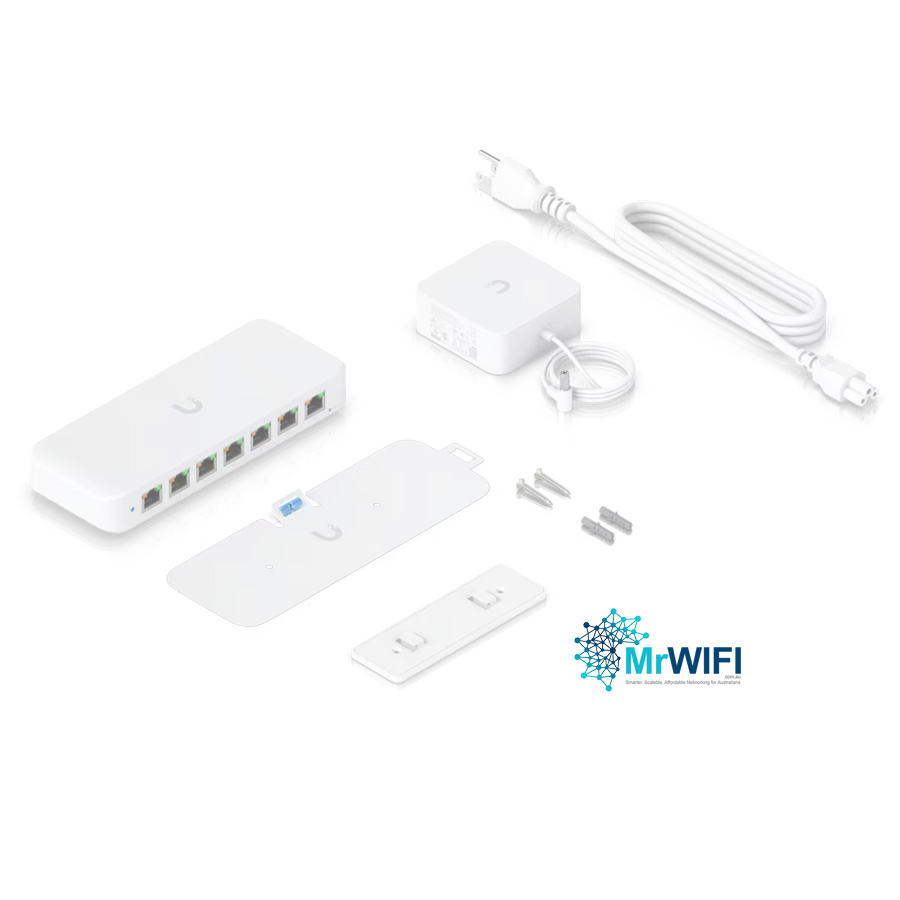

What's In The Box? USW-ULTRA-60W



ULTRA-60W UniFi PoE Switch. What's In The Box (WITB)@MrWiFi

Ubiquiti UniFi USW-Ultra-60W | Compact 8-Port Layer 2 Gigabit PoE Switch- Specifications:



Detailed Specifications

Category Feature / Specification Detail
Overview Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")
  Weight

Device: 320 g (11.3 oz)



Wall mount: 45 g (1.6 oz)



Adapter: 330 g (11.6 oz)
  Enclosure Material Polycarbonate
  Form Factor Compact desktop, wall, magnetic mounting
Interfaces Total Ports 8 x 1 GbE RJ45 (10/100/1000 Mbps)
  Port Layout

7 x PoE+ output ports



1 x PoE++ input port
Power & PoE Power Method

(1) 60W AC/DC external adapter (Included)



(1) Upstream PoE++
  Power Input Method DC Input / PoE
  Power Supply AC/DC, external, 60W
  Supported Voltage Range 50–57V DC / PoE
  Max. Power Consumption

9W (Excluding PoE Output) with PoE input



8W (Excluding PoE Output) with adapter input



210W (Including PoE Output) with 210W AC adapter input
  Max. PoE Output per Port PoE+: 30W
  Total PoE Availability

60W AC adapter input (Included): 52W



PoE++ input: 42W



PoE+ input: 16W



60W PoE adapter input: 42W



210W AC adapter input: 202W
Performance Switching Capacity 16 Gbps
  Total Non-Blocking Throughput 8 Gbps
  Forwarding Rate 12 Mpps
  Supported VLANs 256
  MAC Address Table Size 4,000
Layer 2 Features Supported Features STP & RSTP, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, Port Isolation, Port Mirroring, Jumbo Frames, Loop Protection
Management Management Interface Ethernet
  Application Requirements UniFi Network: Version 8.0.7 and later
Environment Heat Dissipation 31 BTU/hr (Excluding PoE Output)
  Ambient Operating Temp.

60W AC adapter input: -20 to 45° C (-4 to 113° F)



PoE++ input: -30 to 60° C (-22 to 140° F)
  Ambient Operating Humidity 10 to 90% noncondensing
Compliance Certifications & Compliance

NDAA Compliant



CE, FCC, IC, Anatel: 06367-24-08356

Shipping Specifications

SKU
SKU USW-ULTRA-60W
Model # USW-Ultra-60W
Barcode # 810084693780
Brand Ubiquiti
Shipping Weight 0.8500kg
Shipping Width 0.138m
Shipping Height 0.011m
Shipping Length 0.252m
Shipping Cubic 0.000382536m3
Unit Of Measure ea
