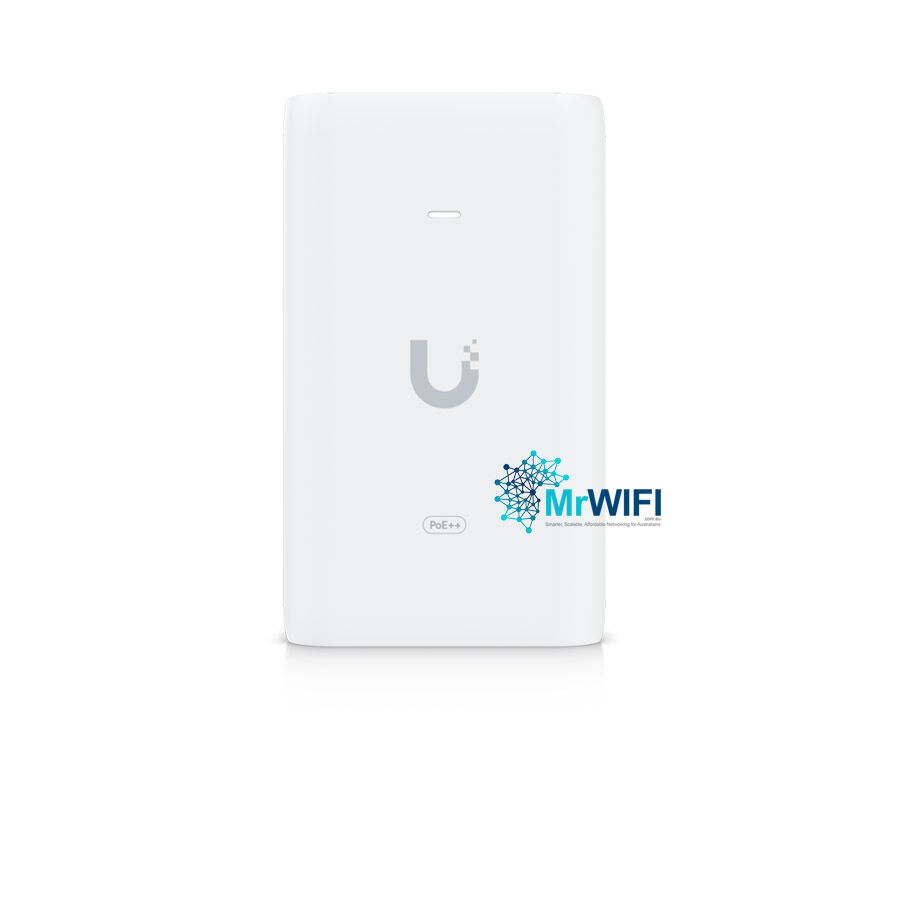

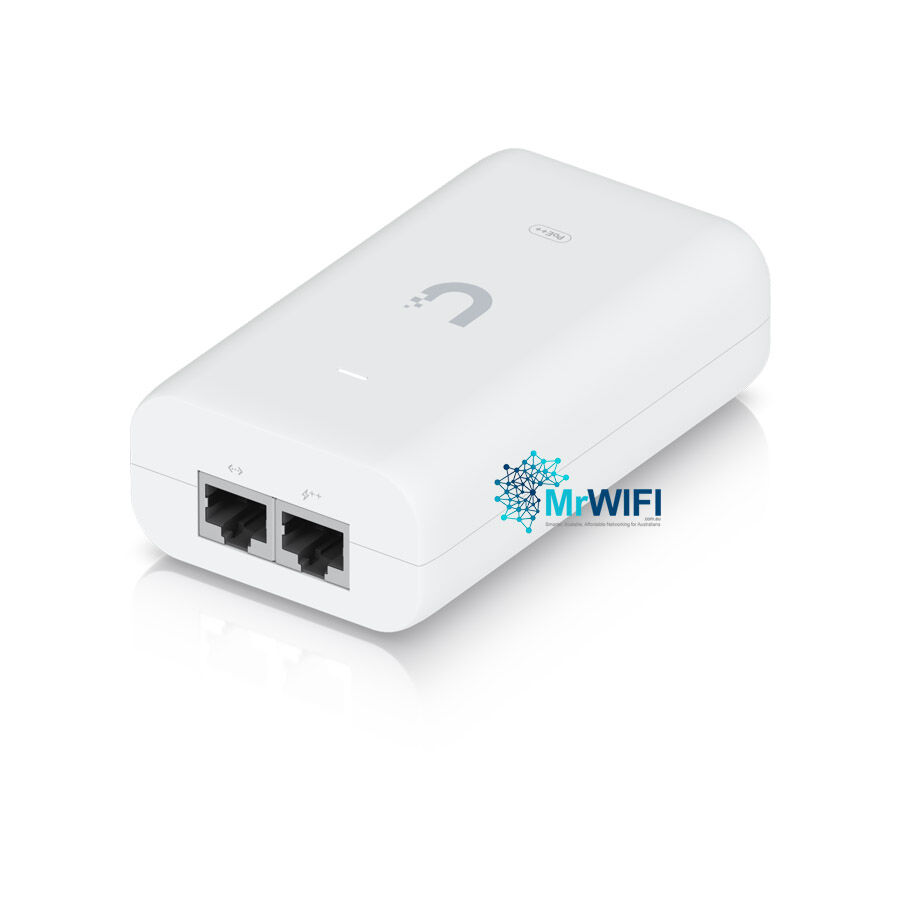

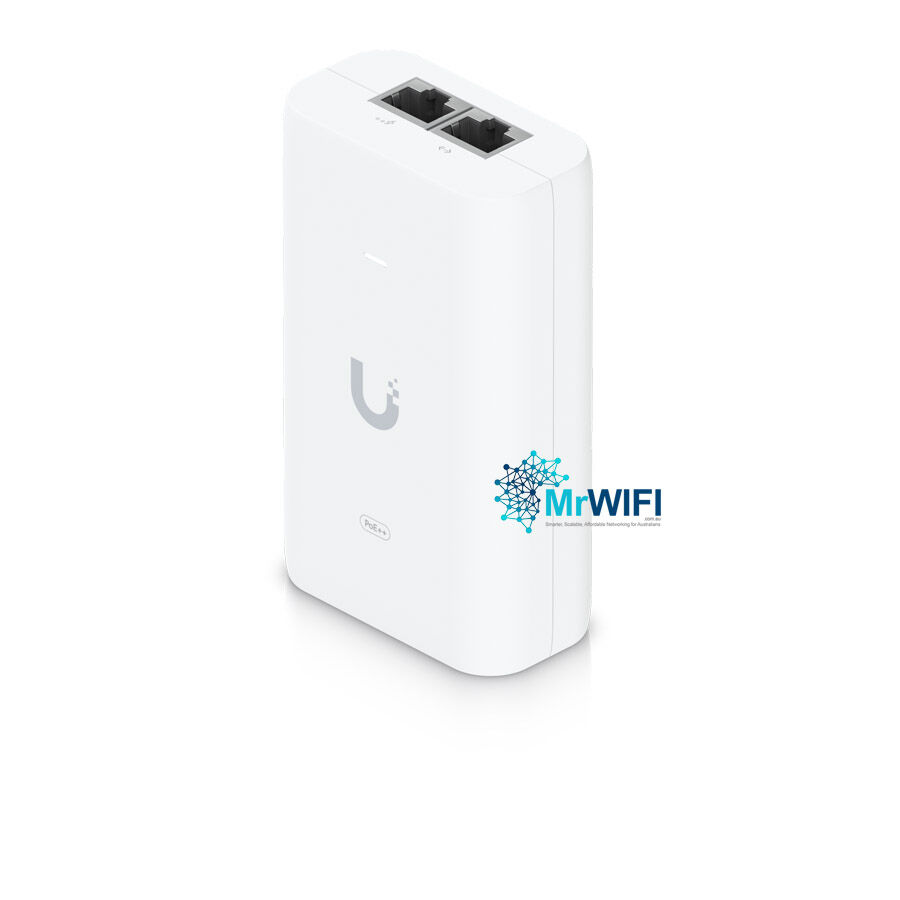

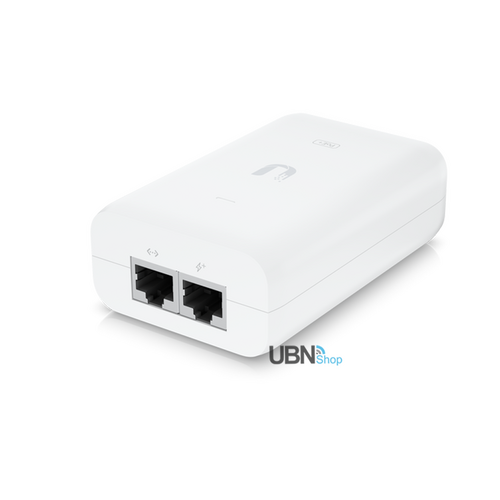

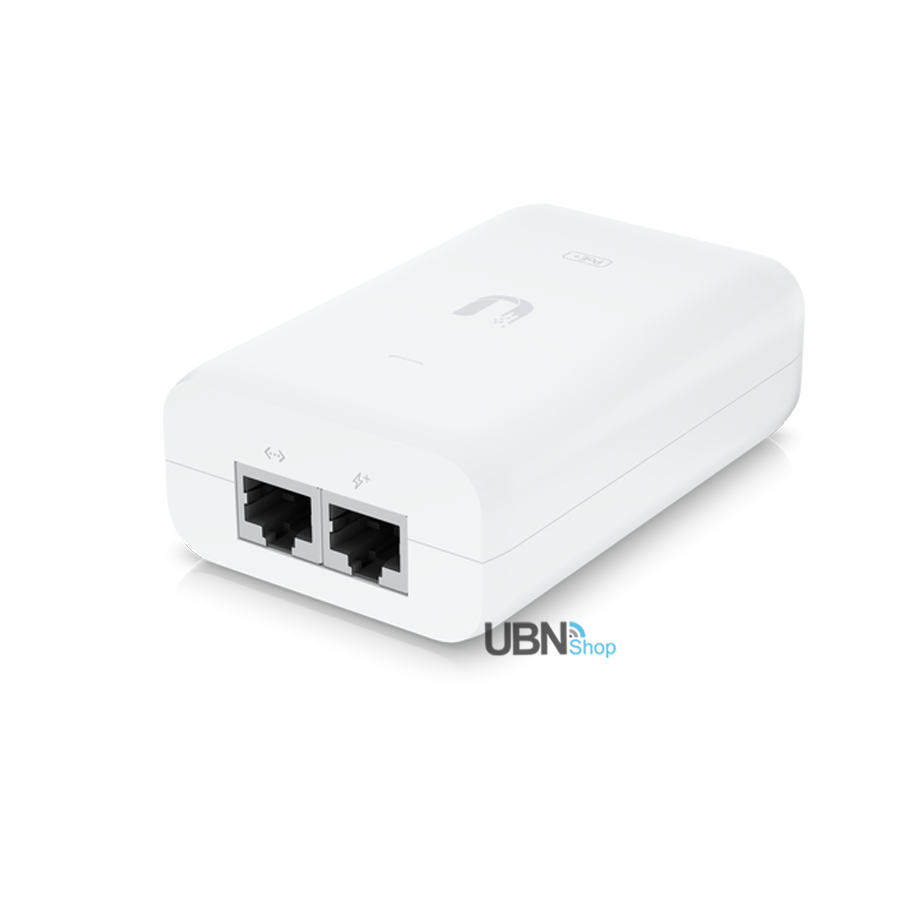

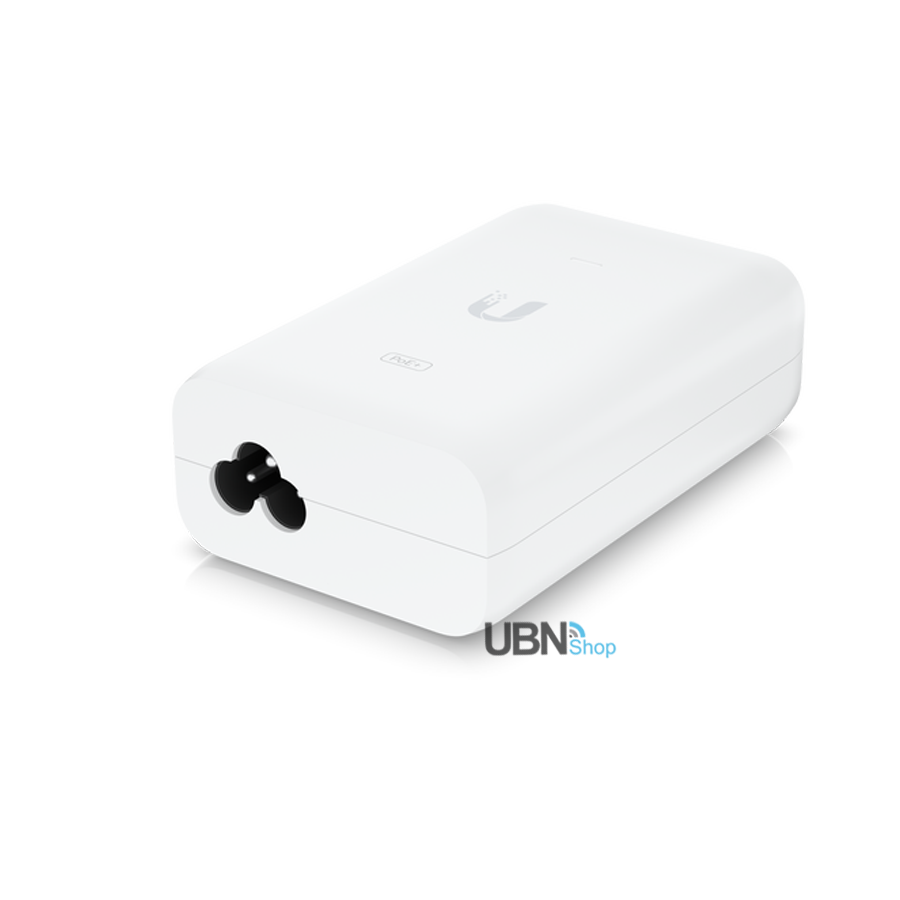

Ubiquiti POE++ Adaptor (60W)
U-POE++
Ubiquiti POE++ Adaptor 60V, 48V DC @ 1.25A
An adapter that can power UniFi PoE devices with wireless mesh applications, or offload PoE switch power dependencies.
Features:
Delivers up to 60W of PoE++
Even more power for UA Hub, G4 PTZ, and other PoE++ devices
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*.
Compatibility:
UVC-G4-PTZ
UA-G2-SK-Pro
UA-Hub
UA-G2-SK
U6-Enterprise-IW
UC-Display
UA-SK-Elevator
USW-Ultra (42W)
USW-Flex (46W)
* Check product specifications to verify PoE compatibility
Ubiquiti POE++ Injector 60V, 48VDC @ 1.25A - Specifications - Documents
DOCUMENTS
Datatsheet PoE AdaptersUbiquiti POE++ Injector 60V, 48VDC @ 1.25A - Specifications
Pack Includes:
- 1 x U-POE++ Injector
Ubiquiti POE++ Injector 60V, 48VDC @ 1.25A - Specifications
| Specifications | |
|---|---|
| Model | U-PoE++ |
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output voltage | 48V DC @ 1.25A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 1.3A @ 120V AC 0.75A @ 230V AC |
| Inrush current | <100A peak @ 120V AC <200A peak @ 230V AC |
| Efficiency | 85+% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 1% |
| Load regulation | ≤ 3% |
| 2-pair powering | No |
| 4-pair powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Power method | Universal AC input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC |
| Supported voltage range | 100—240V AC |
| Max. PoE+ wattage per port by PSE | 60W |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
Shipping Specifications
| SKU | U-POE-Plus-Plus |
| Model # | U-POE++ |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.046m |
| Shipping Height | 0.035m |
| Shipping Length | 0.086m |
| Shipping Cubic | 0.000138460m3 |
| Unit Of Measure | ea |
