Ubiquiti POE-24-7W-G-WH POE Injector, 24VDC, 7W, .3A Gigabit White





Introducing the Ubiquiti POE Injector, a powerful solution designed to protect and optimize your PoE devices. With advanced features like surge protection, clamping protection, and maximum surge discharge, this injector ensures uninterrupted performance by safeguarding your devices from power fluctuations and voltage spikes. Its peak pulse current handling capability further enhances protection, keeping your equipment safe and secure.

ESD protection is a leading cause of outdoor device failures, but with the Ubiquiti POE Injector, you can effectively mitigate this risk. By utilizing the grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors, you provide reliable protection against electrostatic discharge damage. Additionally, the AC cable with earth ground connection enhances safety, reducing the potential for electrical hazards.

Experience seamless network connectivity with the Ubiquiti POE Injector's Gigabit Ethernet support, allowing for lightning-fast data transfer speeds. The built-in LED indicators provide convenient power status monitoring and troubleshooting. Invest in the Ubiquiti POE Injector to ensure the longevity and optimal performance of your PoE devices, while enjoying comprehensive protection and secure power over Ethernet connectivity.



FEATURES:

  • Surge protection

  • Clamping protection

  • Maximum surge discharge

  • Peak pulse current

  • AC cable with earth ground



* Check product specifications to verify PoE compatibility



What's In The Box? POE-24-7W-G-WH

1 X Ubiquiti POE-24-24W-G-WH POE Injector, 24VDC, 24W, 1A Gigabit White

Ubiquiti POE-24-7W-G-WH POE Injector, 24VDC, 7W, .3A Gigabit White- Specifications:

POE-24-7W-G-WH (Low-Power)
Dimensions 72 x 45 x 33 mm (2.8 x 1.8 x 1.3")
Weight 72.1g (2.5 oz)
Output voltage 24V DC @ 0.3A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.3A @ 120V AC, 0.2A @240V AC
Inrush current <40A peak @ 120V AC, <70A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and pins 7, 8 (-)
4-pair powering
Storage temperature -30 to 70°C (-22 to 158°F)
Ambient operating temperature 0 to 40°C (32 to 104°F)
Operating humidity 35 to 95% noncondensing

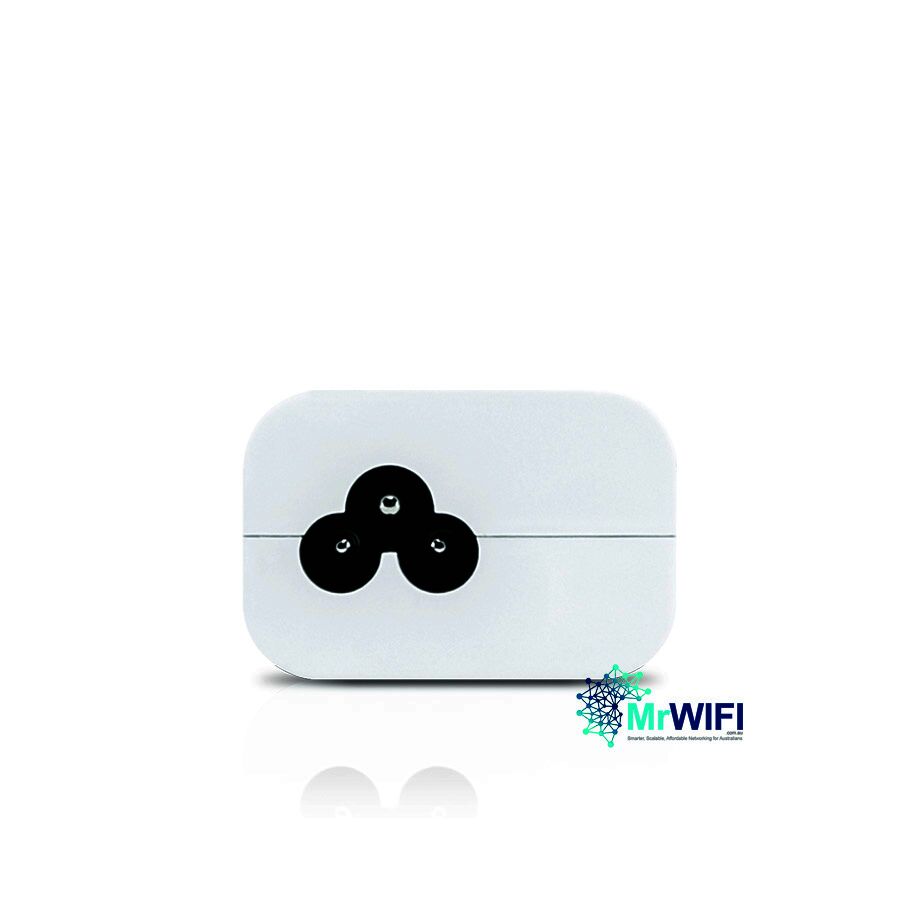

AC connector IEC-320 C6

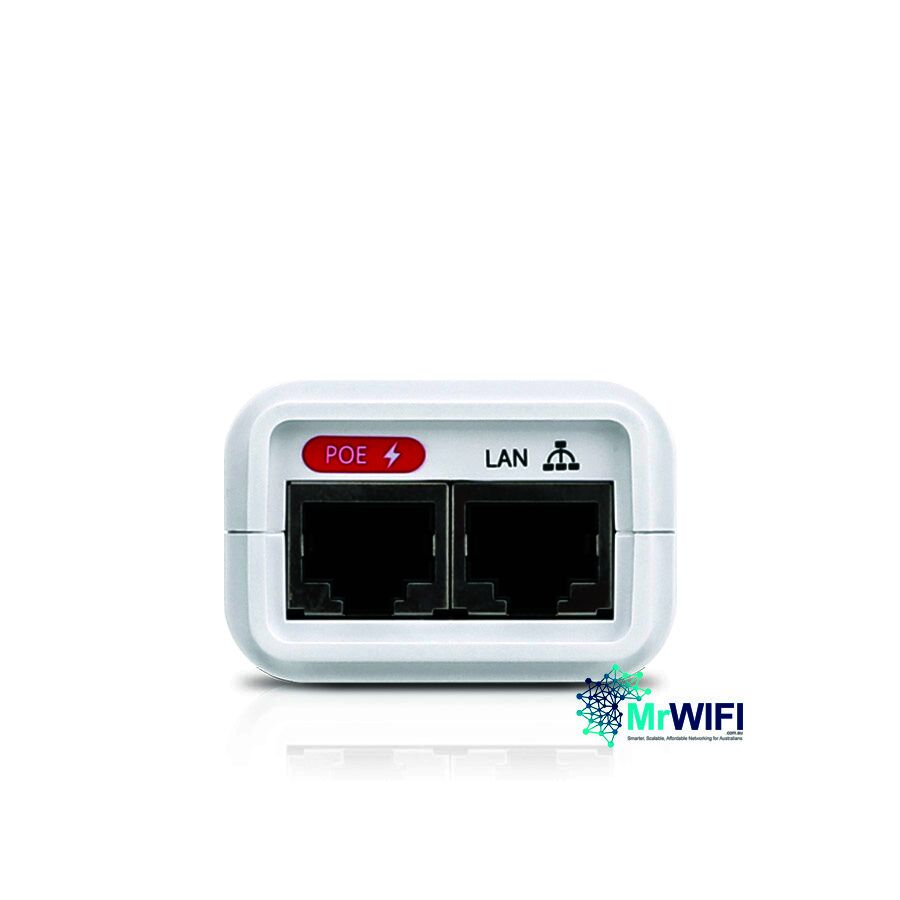

Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pf data
Response time <1 ns
Certifications CE, FCC, IC, UL
NDAA Compliant Yes
