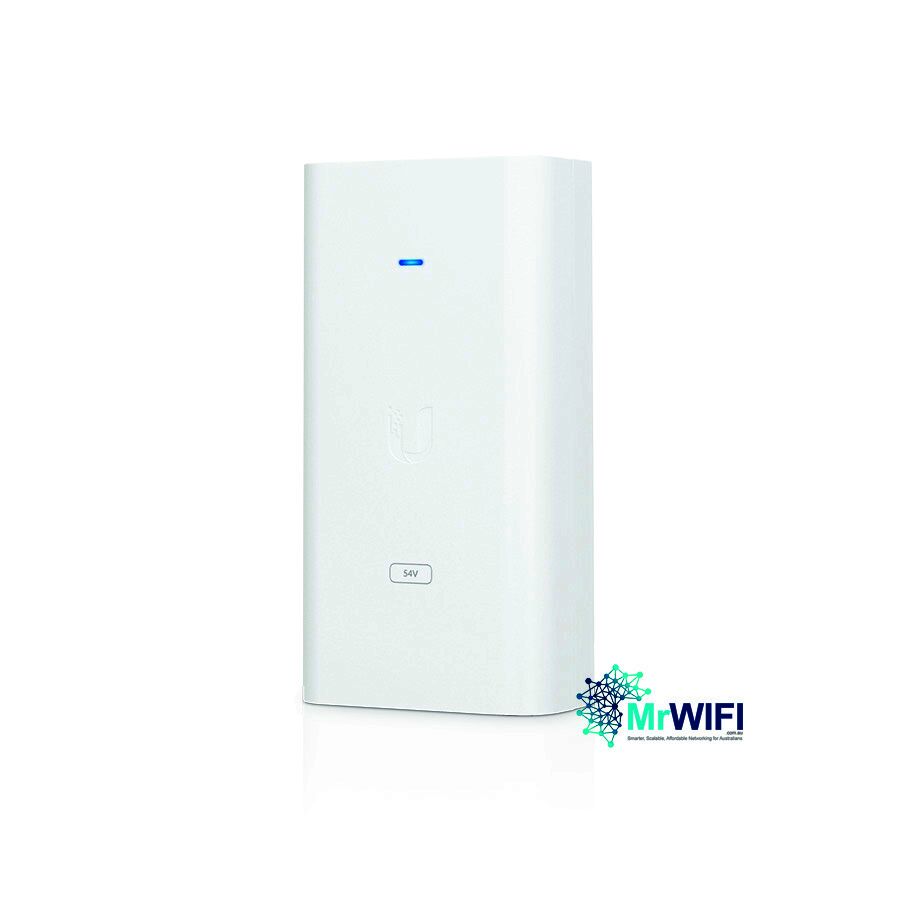

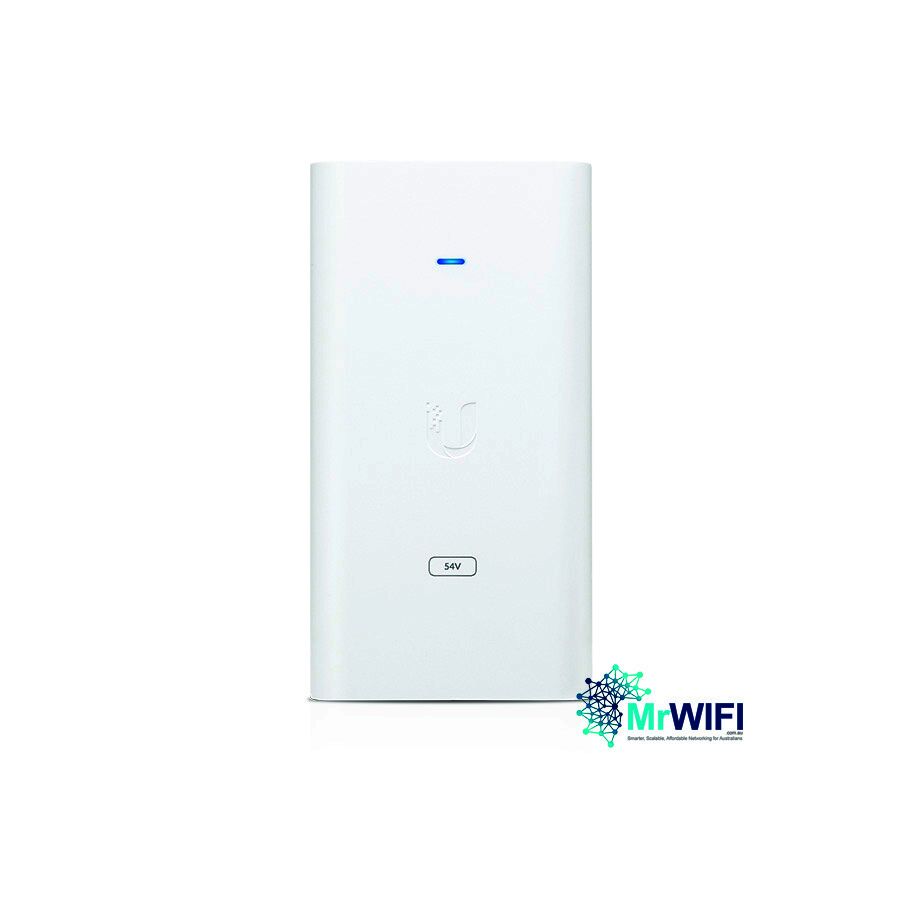

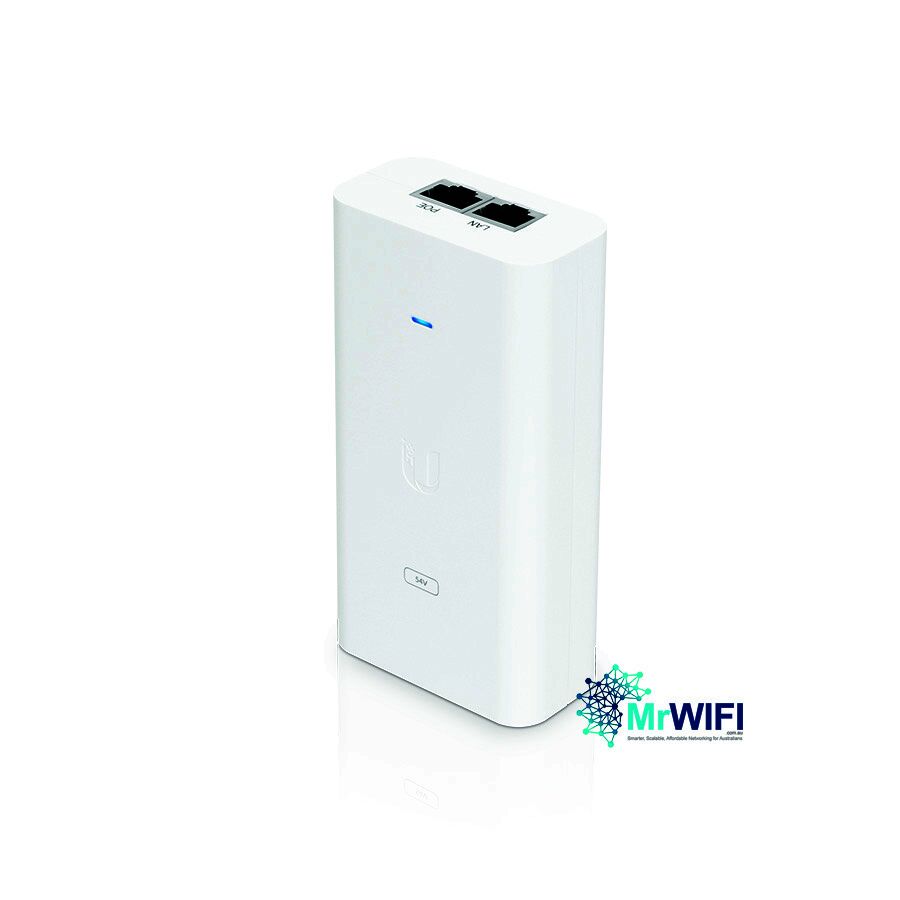

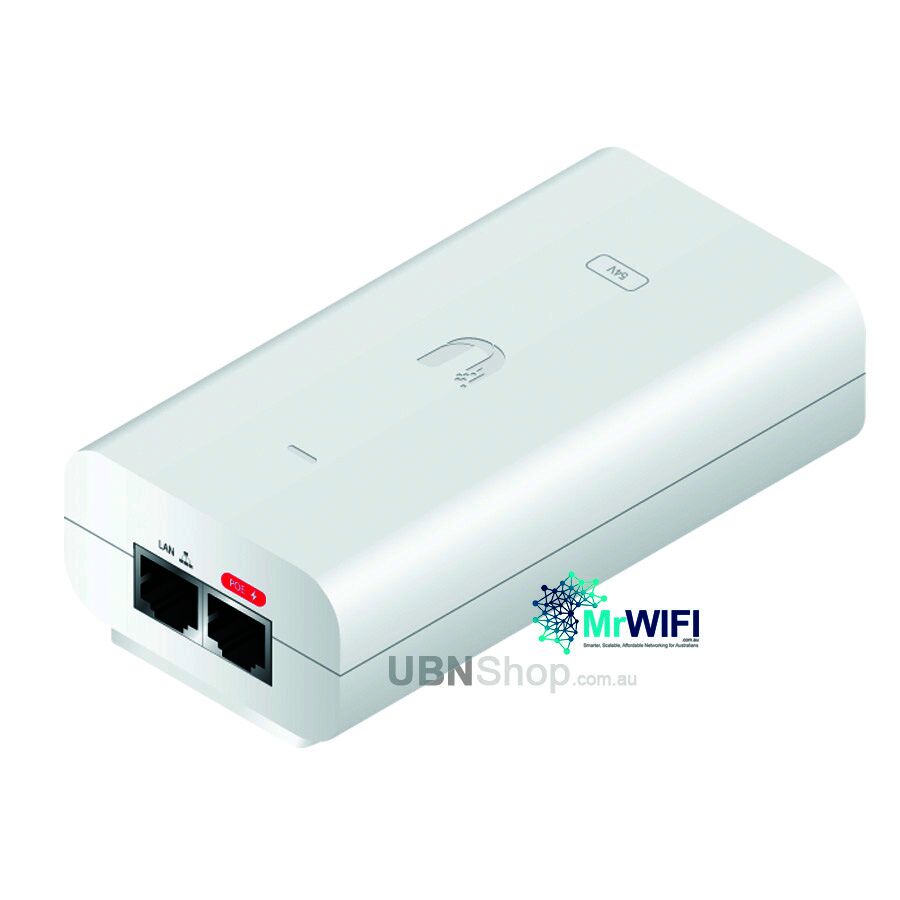

Ubiquiti POE-54-80W Injector 54V 80W for EdgePoint, POE-54V-80W





Description: Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices.

Features:
•Surge and clamping protection
•Maximum surge discharge
•Peak pulse current
•AC cable with earth ground

* Check product specifications to verify PoE compatibility



What's In The Box? POE-54V-80W

1 X POE Injector, POE-54V-80W

Ubiquiti POE-54-80W Injector 54V 80W for EdgePoint, POE-54V-80W- Specifications:



POE-54V-80W
Dimensions 123 x 65 x 34 mm (4.8 x 2.6 x 1.3”)
Weight 299 g (10.6 oz)
Output voltage 54V DC @ 1.5A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.8A @ 120V AC, 0.4A @ 240V AC
Inrush current <80A Peak @ 120V AC, <120A Peak @ 230V AC
Efficiency 87+%
Output ripple 1% Max.
Switching frequency 100 kHz Max.
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering
4-pair powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)

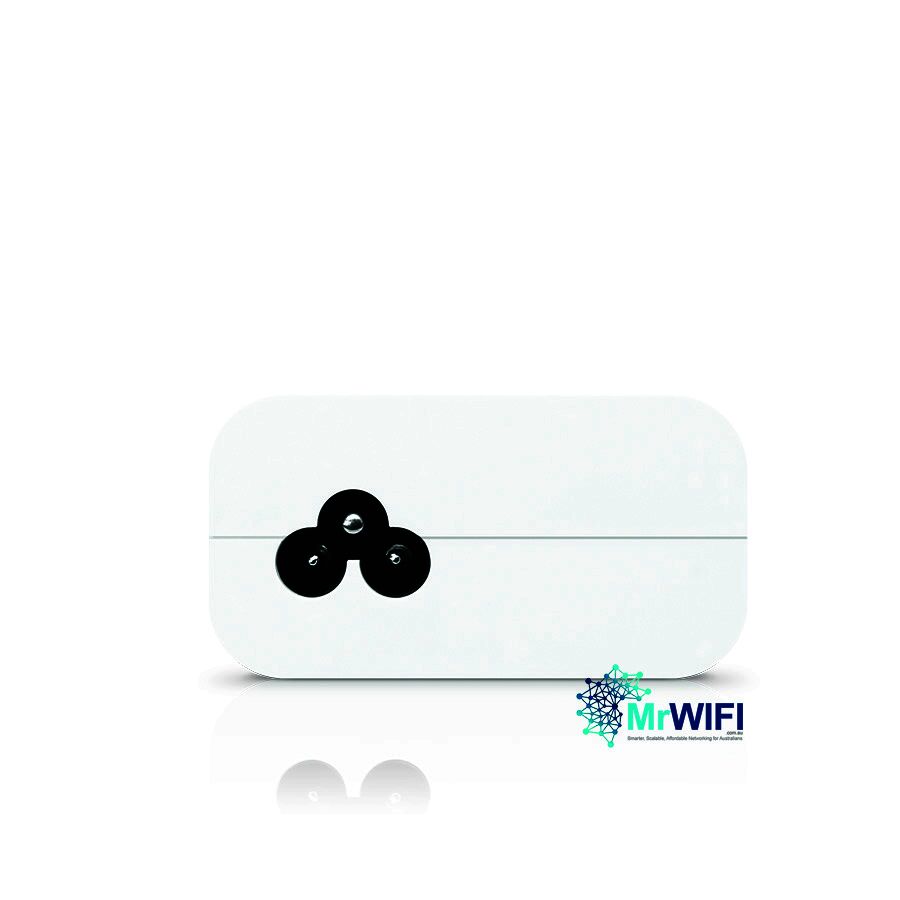

AC connector IEC-320 C6

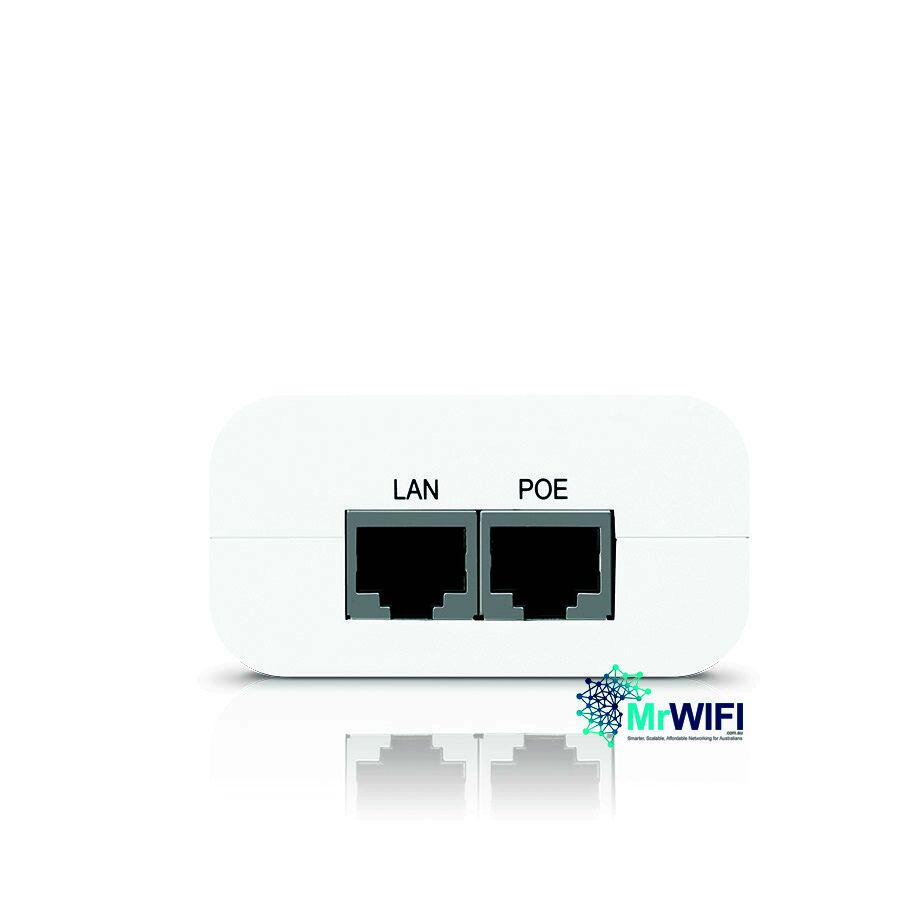

Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 35 to 95% noncondensing
Certifications CE, FCC, IC, UL
NDAA Compliant Yes

Shipping Specifications

SKU
SKU POE-54V-80W
Model # POE-54V-80W
Barcode # 817882026642
Brand Ubiquiti
Shipping Weight 0.2990kg
Shipping Width 0.065m
Shipping Height 0.034m
Shipping Length 0.123m
Shipping Cubic 0.000271830m3
Unit Of Measure ea
