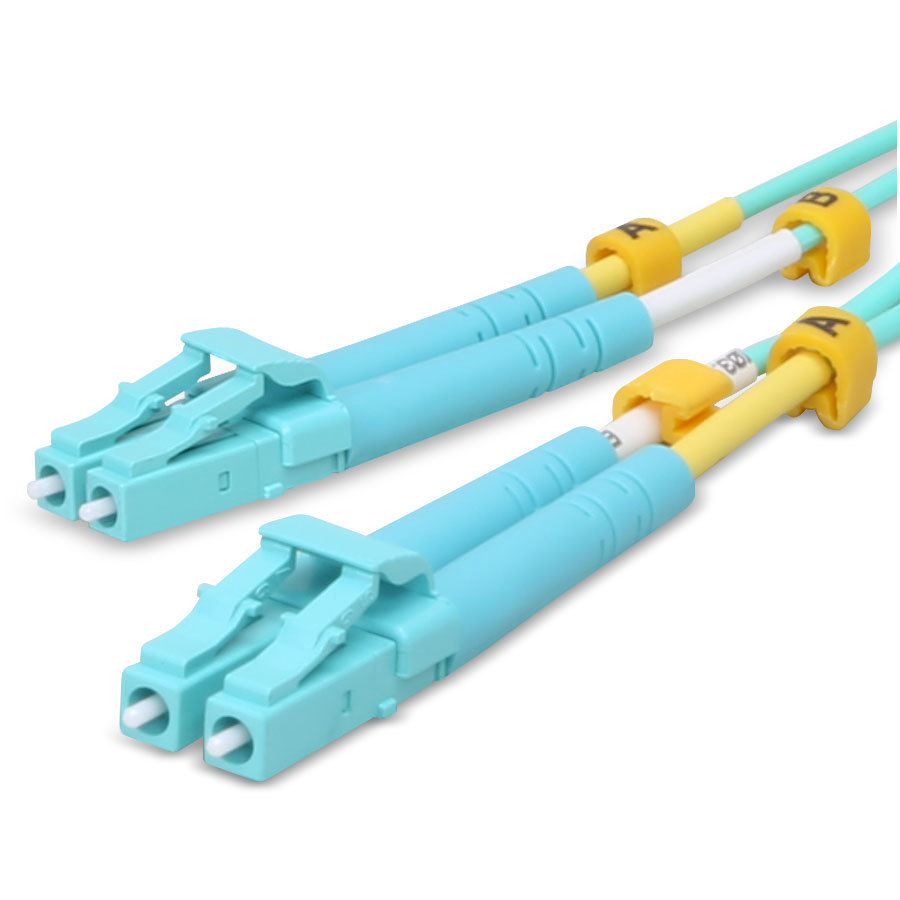

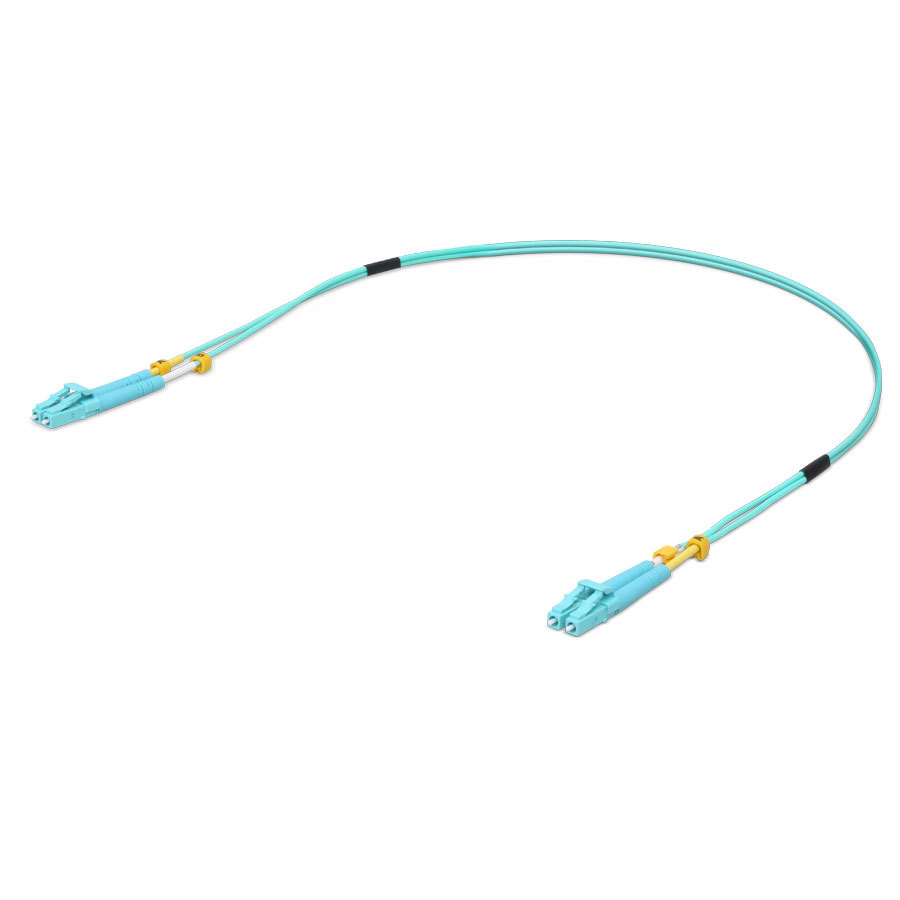

Ubiquiti 10GB Multi-Mode ODN Cable 0.5m
UOC-0.5
10G Multi-Mode ODN Cable 0.5m
Scale your fiber network using our flexible and lightweight fiber patch cables. The 10G multi-mode fiber patch cables are ideal for indoor telecommunications and data networks using our routing and switching products, such as the EdgeRouter, EdgeSwitch, and UniFi Switch. The fiber patch cables are available in 0.5, 1, 2, 3, and 5 meter lengths.
(UOC-0.5)
Ubiquiti 10GB Multi-Mode ODN Cable 0.5m
Pack Includes:
- 1 x Ubiquiti 10GB Multi-Mode ODN Cable 0.5m
Ubiquiti 10GB Multi-Mode ODN Cable 0.5m - Specifications
Connector | LC-LC |
Fiber Mode | 50 / 125 µm |
Fiber Type | Duplex |
Cable Length
|
|
Cable Jacket | PVC |
Cable Standard | OM3 |
Cable Jacket | PVC |
Cable Standard | OM3 |
Insertion Loss | ≤ 0.3 dB |
Polish | UPC to UPC |
Jacket OD | 2.0 mm |
Wavelength | 850 / 1310 nm |
Jacket Color | Aqua |
Repeatability | ≤ 0.1 dB |
Durability | ≤ 0.2 dB (1000 Times Mating) |
Return Loss | ≤ 50 dB |
Operating Temperature | -40 to 75° C (-40 to 167° F) |
Shipping Specifications
SKU | UOC-0.5 |
Model # | UOC-0.5 |
Barcode # | 817882020428 |
Brand | Ubiquiti |
Shipping Weight | 0.0160kg |
Shipping Width | 0.220m |
Shipping Height | 0.010m |
Shipping Length | 0.220m |
Shipping Cubic | 0.000484000m3 |
Unit Of Measure | ea |
