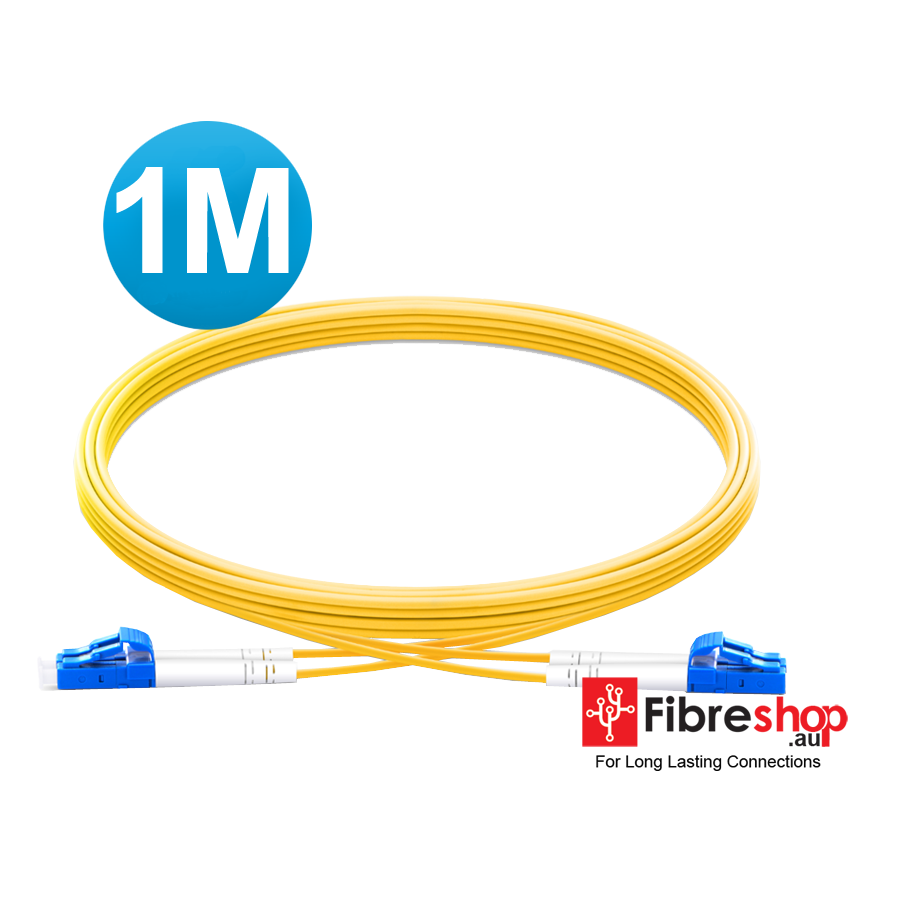

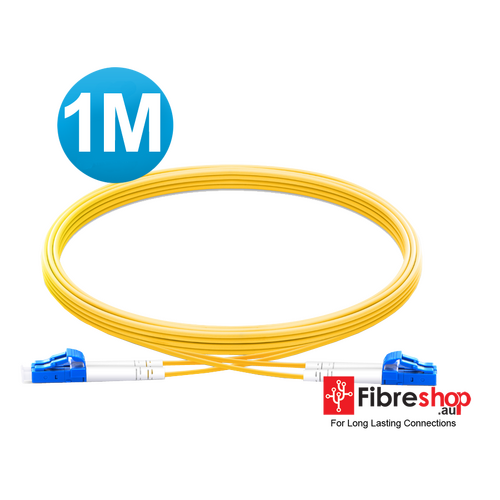

LC-LC UPC Duplex Single Mode Fibre Patch Lead 2.0mm PVC (OFNR)1M

FS-PATCH-LC-UPC-SM-1M

$19.95
In Stock

Choose Length

LC-LC UPC Duplex Single Mode Fibre Patch Lead 2.0mm PVC (OFNR)

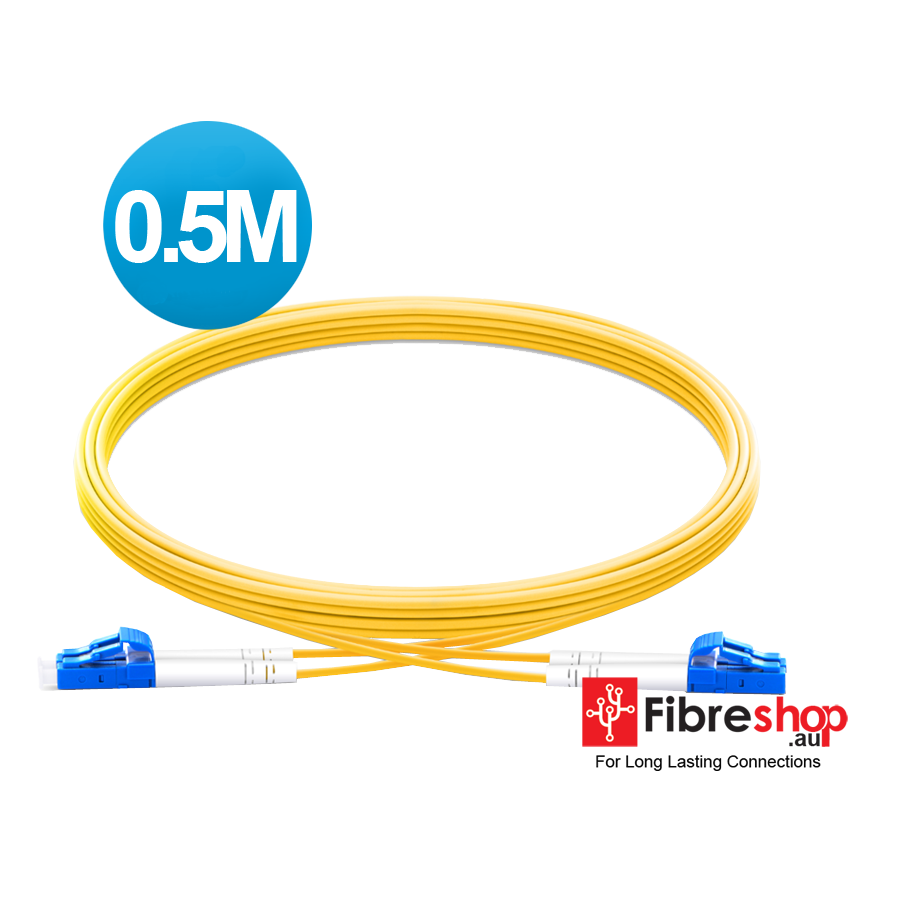

LC-LC UPC Single Mode Fibre Patch Cable, 9/125μm OS2 Duplex Fibre, PVC (OFNR) Jacket, Yellow- available in 0.5M, 1M, 1.5M, 2M, 3M & 5M Lengths.



Industry Standard Fibre Optic Cable

The 9/125μm single mode fibre patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality. High Quality and Cost-effective 9/125μm Single Mode Fiber Optic Cable.

Cost-effective fibre cabling solution for long distance transmission. Our single mode fibre patch leads are 100% tested and certified. They are designed for high speed and legacy networks like Fast Ethernet, Gigabit Ethernet and Fibre Channel, supporting 1G data rates up to 5 km and 10Gb up to 10 km.

Compliant with IEEE 802.3z standards for Fast Ethernet and Gigabit Ethernet applications. The 9/125μm single mode fibre patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality.

(FS-PATCH-OS2-D-LC-UPC-SM)

LC-LC UPC Duplex Single Mode Fibre Patch Lead - Specifications

Product Specification

Connector Type LC to LC Polish Type UPC to UPC
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Insertion Loss ≤0.3dB Return Loss ≥50dB
Fiber Grade G.657.A1 (Compatible with G.652.D) Minimum Bend Radius 10mm
Attenuation at 1310 nm 0.36 dB/km Attenuation at 1550 nm 0.22 dB/km
Fiber Count Duplex Cable Diameter 2.0mm
Cable Jacket PVC Polarity A(Tx) to B(Rx)
Operating Temperature -20~70°C Storage Temperature -40~80°C



Shipping Specifictations

SKU FS-PATCH-OS2-D-LC-UPC-SM
Model # FS-PATCH-OS2-D-LC-UPC-SM
Brand FibreShop
Shipping Weight 0.0100kg
Shipping Width 0.020m
Shipping Height 0.180m
Shipping Length 0.180m
Shipping Cubic 0.000648000m3
Unit Of Measure ea
