5 GHz airMAX® ac Radio BaseStation with airPrism® Active RF Filtering Technology



Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®Prism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas. Pair the Rocket Prism 5AC Gen 2 with airMAX ac antennas for optimal performance:.

Pair the Rocket 5AC Gen2 with airMAX ac antennas for optimal performance:

  • PtP backhaul RocketDish™ ac Antenna
  • PtMP links airMAX ac Sector



Worldwide 5 GHz Coverage
Deploy the Rocket Prism 5AC Gen 2 anywhere in the world. It delivers complete coverage of the 5 GHz spectrum with a single radio. The Rocket Prism 5AC Gen 2 allows for flexibility in configuring channel bandwidths (subject to local country regulations).

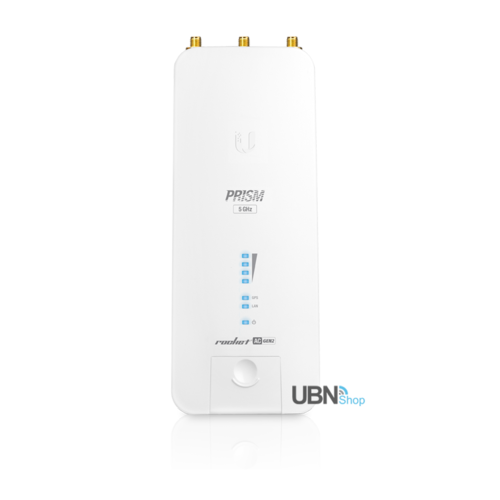

Rocket Prism 5AC Gen2

Package Includes

  • 1 x Rocket Prism 5 AC Gen2
  • 1 x GPS Antenna
  • 1 x Gigabit PoE (24V, 1A) with Mounting Bracket
  • 1 x Power Cord
  • Quick Start Guide

Rocket Prism 5AC Gen2 - Specifications

ROCKET PRISM - RP-5AC-Gen2
Dimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight 400 g (14.11 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
LEDs (4) Signal Strength, GPS, Power, LAN
Enclosure Characteristics Die-Cast Aluminum with White Powder Coating
Max. Power Consumption 9.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor MIPS 74Kc
Memory 128 MB DDR2 SDRAM
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Operating Frequency Worldwide: 2400 - 2483.5 MHz 5150-5875 MHz
USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz

Shipping Specifications

SKU RP-5AC-Gen2
Model # RP‑5AC‑Gen2
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.7000kg
Shipping Width 0.119m
Shipping Height 0.090m
Shipping Length 0.300m
Shipping Cubic 0.003213000m3
Unit Of Measure ea
