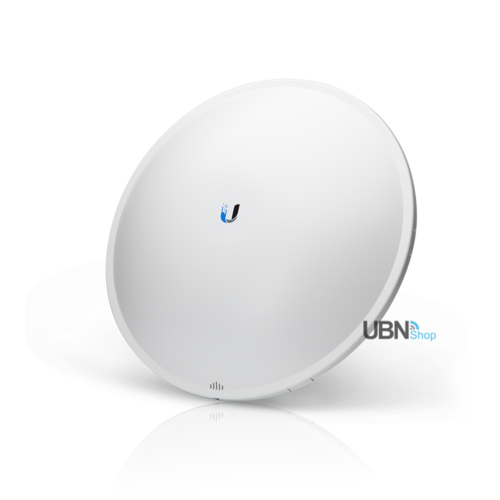

PowerBeam 5AC 500

PBE‑5AC‑500

$423.13
In Stock

High-Performance airMAX® ac Bridge

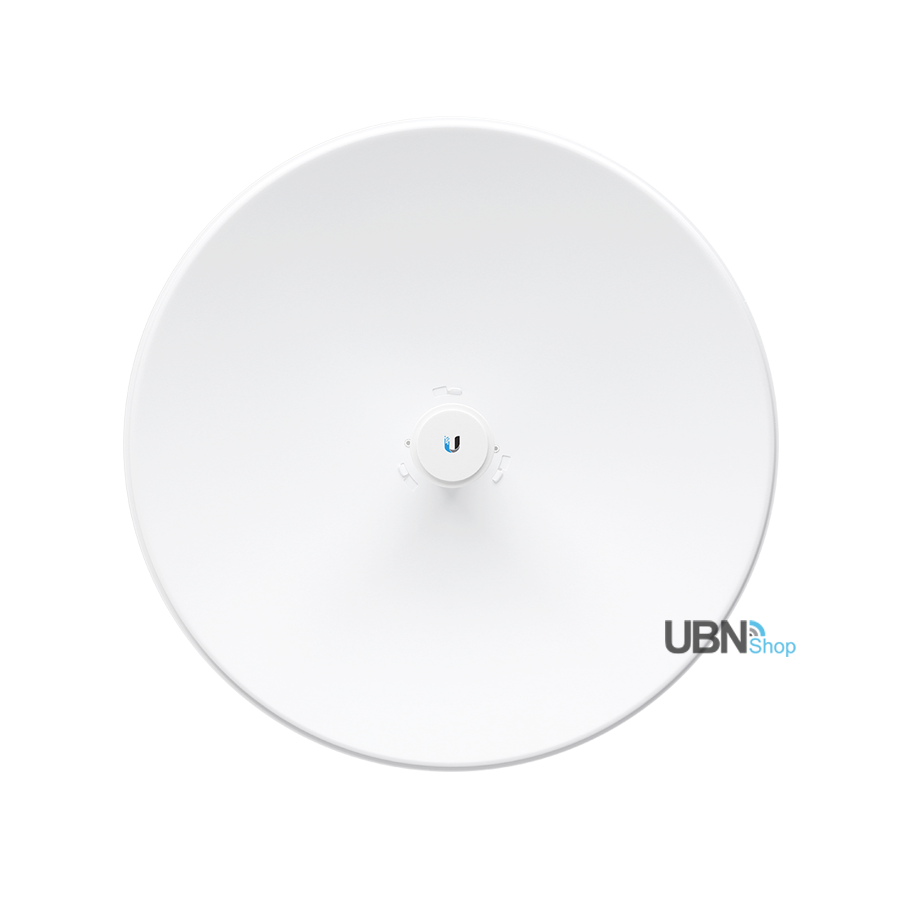

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

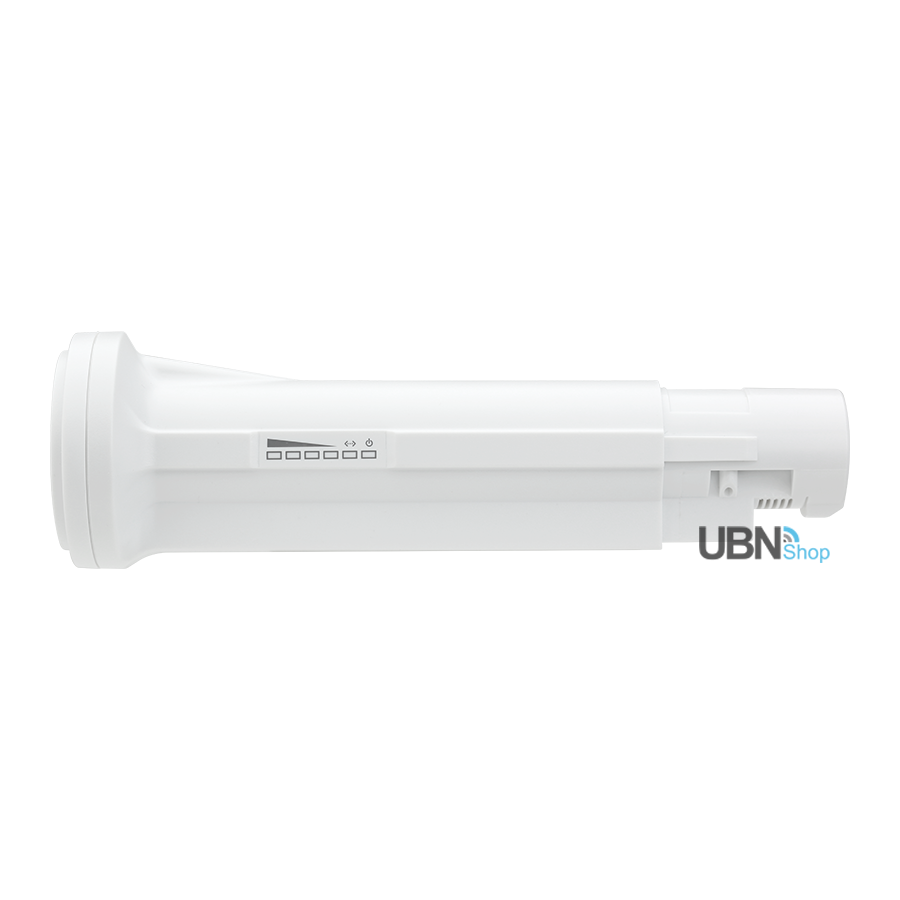

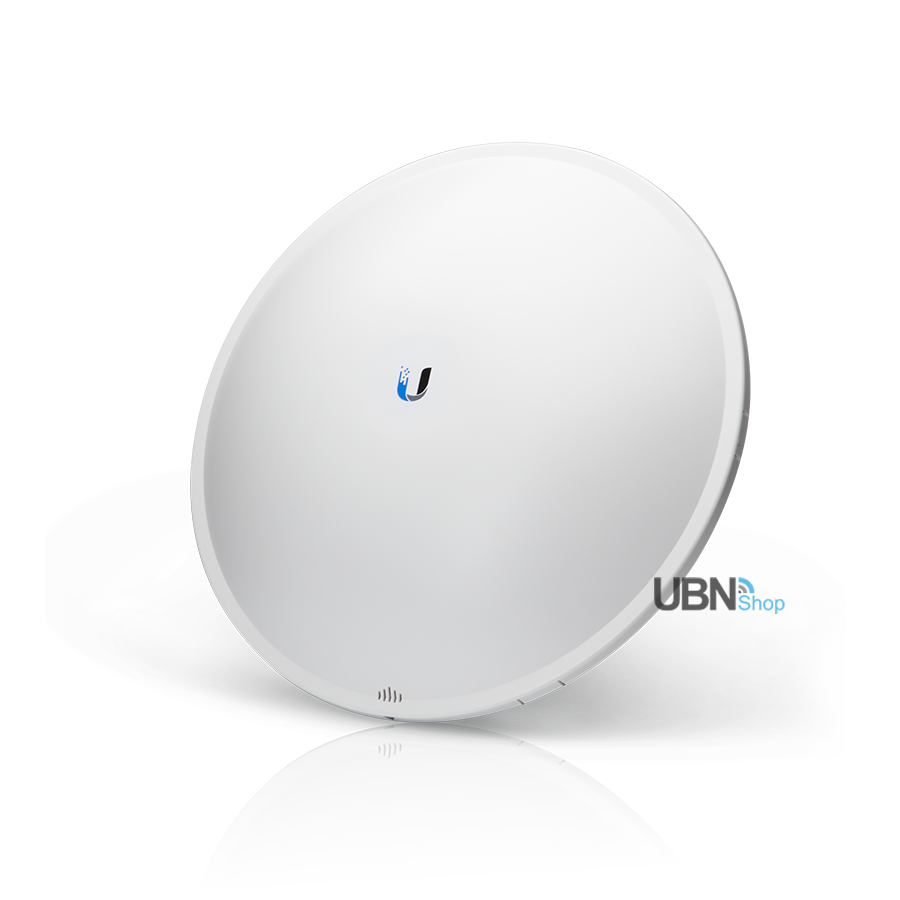

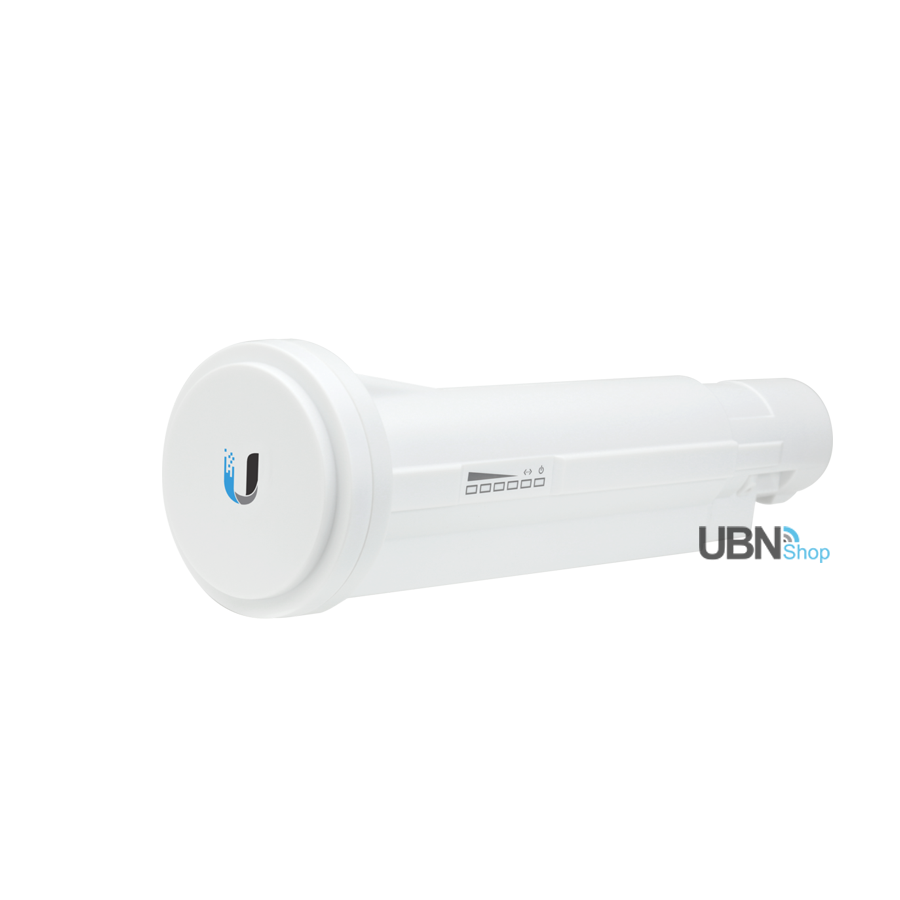

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses. The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

(39013)

PowerBeam 5AC 500

Package Includes

  • 1 x Dish Reflector
  • 1 x Radome
  • 1 x Antenna Feed
  • 1 x Rear Housing
  • 1 x Adjustment Bracket
  • 1 x Mounting Bracket
  • 4 x Hex Bolts with Washers (M8x20)
  • 2 x Pole Clamp
  • 4 x Long Carriage Bolts (M8x135)
  • 4 x Flange Nuts
  • 4 x Screws with Washers (M4x12)
  • 4 x Washers (M4)
  • 4 x Nylon Insert Lock Nuts (M4)
  • 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
  • 1 x Power Cord
  • Quick Start Guide

PowerBeam 5AC 500 - Specifications

POWERBEAM PBE-5AC-500
Dimensions
Radome Excluded
Radome Included

520 x 520 x 308 mm (20.47 x 20.47 x 12.13")
525 x 525 x 315 mm (20.67 x 20.67 x 12.40")
Weight
Radome Excluded
Radome Included

2.35 kg (5.18 lb)
3.15 kg (6.95 lb)
Operating Frequency Worldwide: 5150-5875 MHz
USA: 5725-5850 MHz
Gain 27 dBi

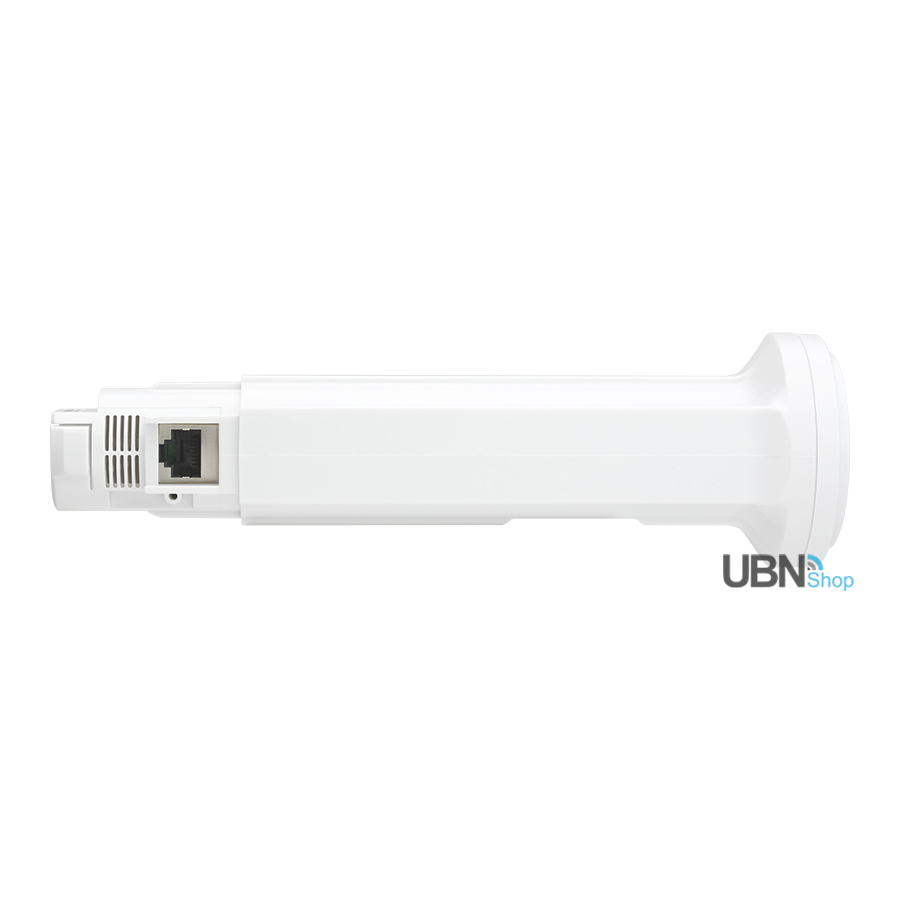

Networking Interface (1) 10/100/1000 Ethernet Port
Processor MIPS 74Kc
Enclosure Characteristics Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Power Supply 24V, 0.5A Gigabit PoE Supply (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Shock and Vibrations ETSI300-019-1.4
Wind Loading 264.6 N @ 96 km/h (60 lbf @ 60 mph)
Wind Survivability 96 km/h (60 mph)
Certifications CE, FCC, IC
Mounting Pole-Mount (Kit Included)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing

Shipping Specifications

SKU 39013
Brand Ubiquiti
Shipping Weight 4.3000kg
Shipping Width 0.530m
Shipping Height 0.350m
Shipping Length 0.530m
Shipping Cubic 0.098315000m3
Unit Of Measure ea
