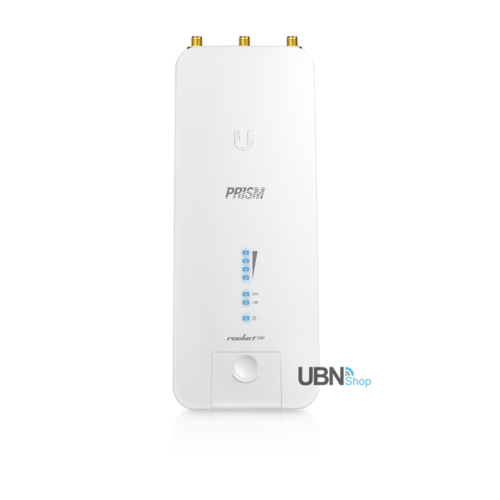

Rocket 2AC PRISM
R2AC
$387.70
In Stock
airMAX® ac BaseStation with airPrism® Technology
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas.
Pair the Rocket 2AC Prism with airMAX ac antennas for optimal performance:
- PtP backhaul RocketDish™ ac Antenna
- PtMP links airMAX ac Sector
2.4 GHz Coverage
Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations).
(39017)
Rocket 2GHz AC Prism
Package Includes
- 1 x Rocket 2 AC
- 1 x GPS Antenna
- 1 x Gigabit PoE Adapter (24V, 0.5A)
- 1 x Power Cord
- Quick Start Guide
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
| Weight | 400 g (14.11 oz) |
| Enclosure Materials | Die-Cast Aluminum with White Powder Coating |
| Hardware | |

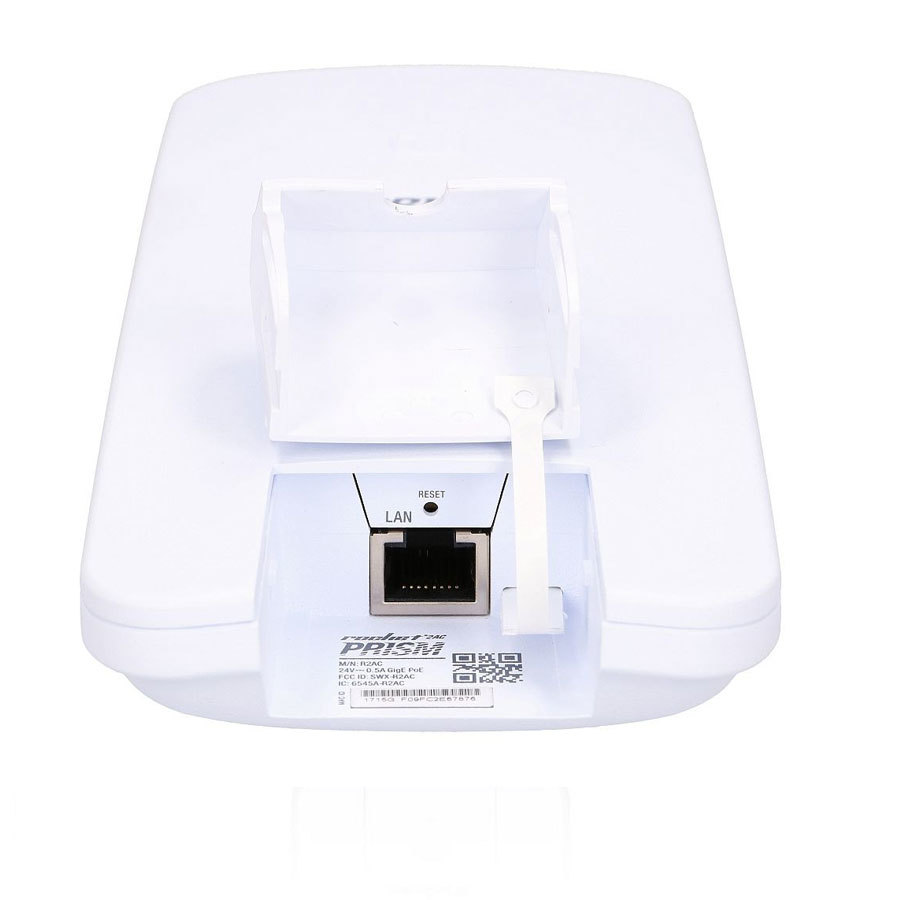

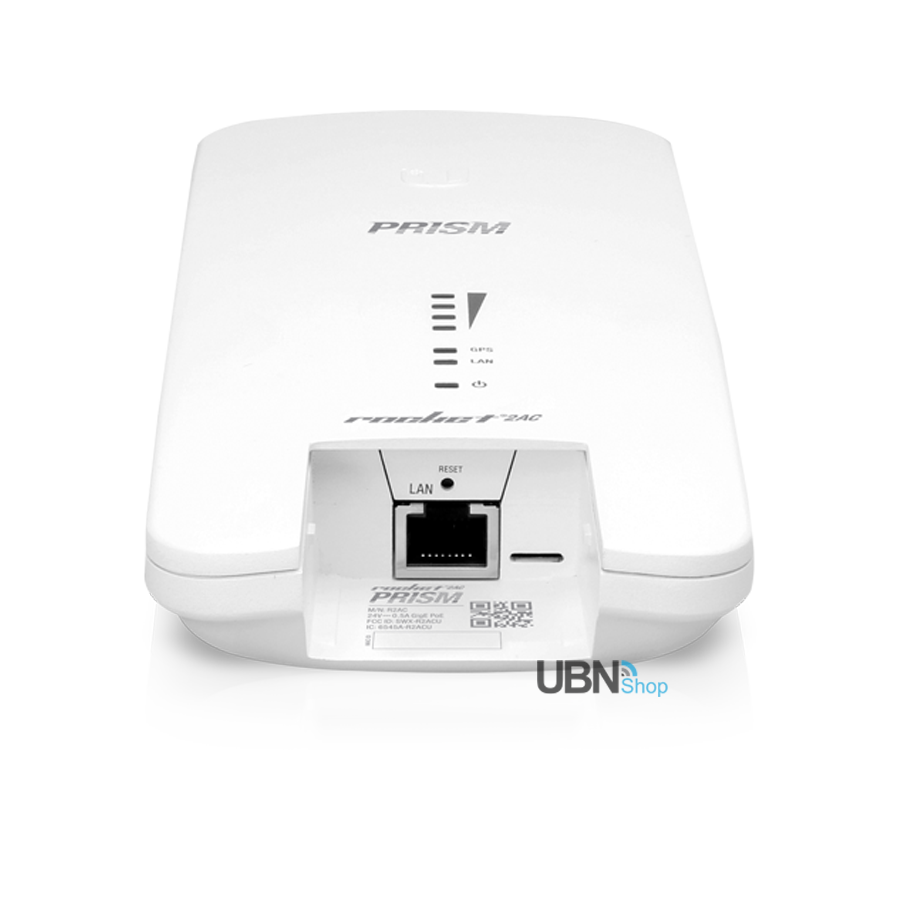

| Networking Interface | (1) 10/100/1000 Ethernet Port |

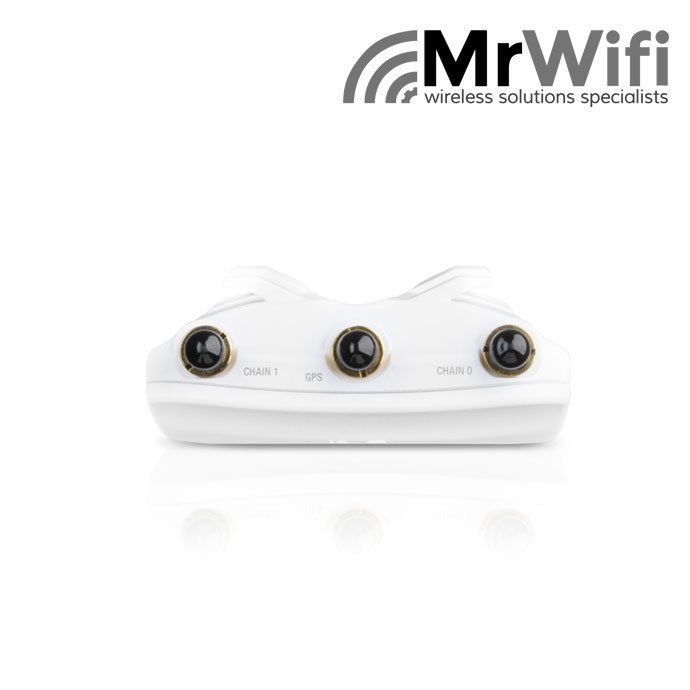

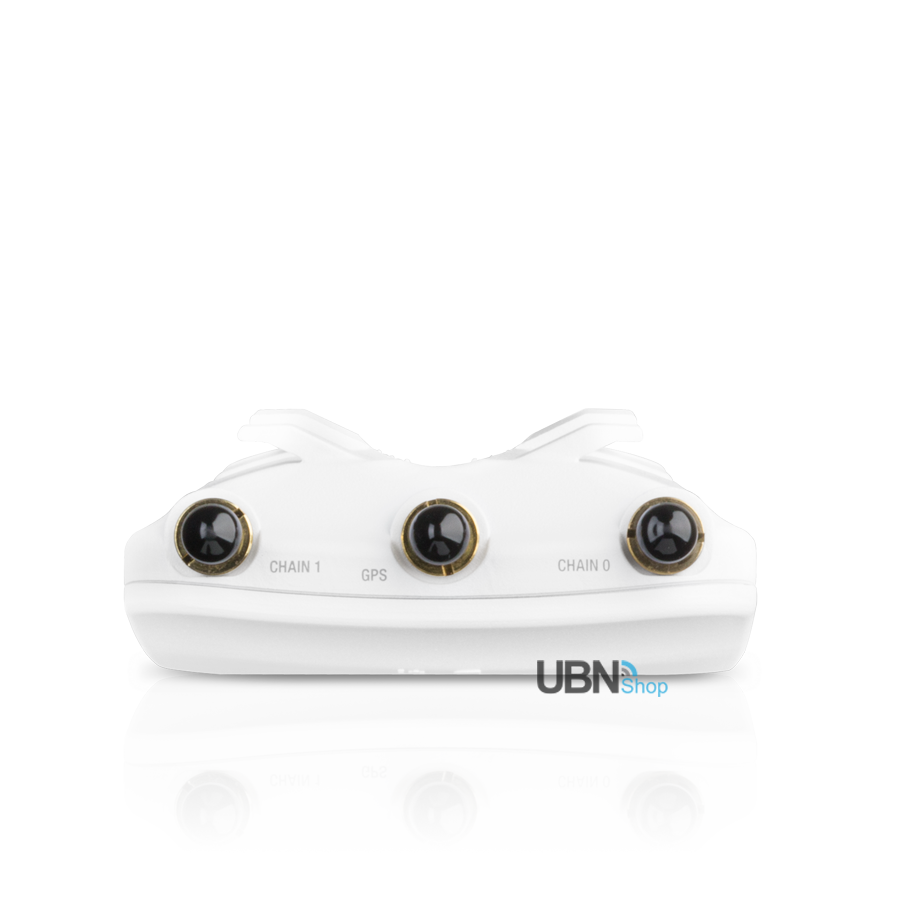

| RF Connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |

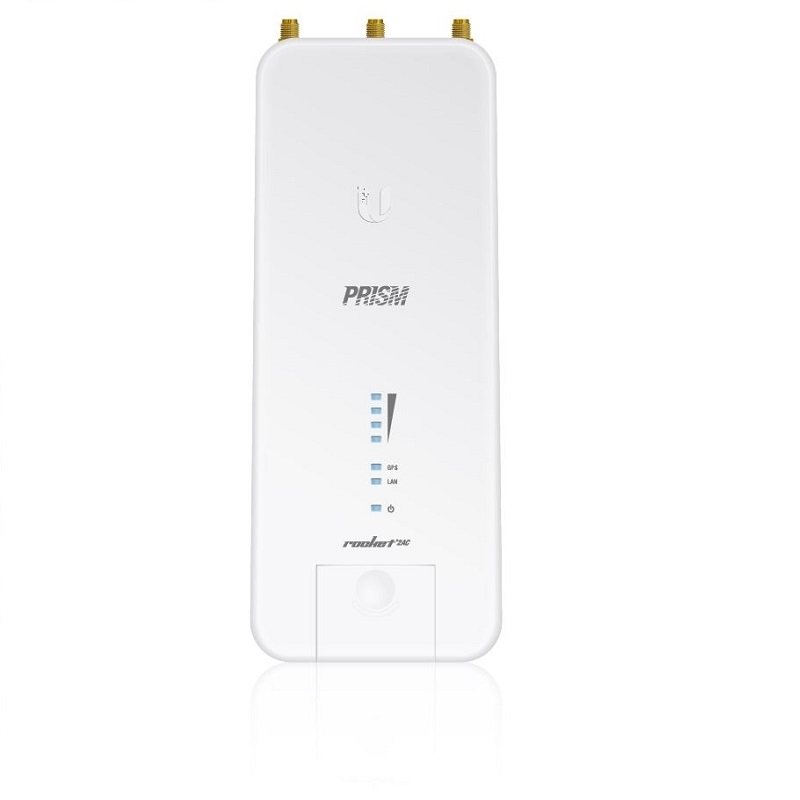

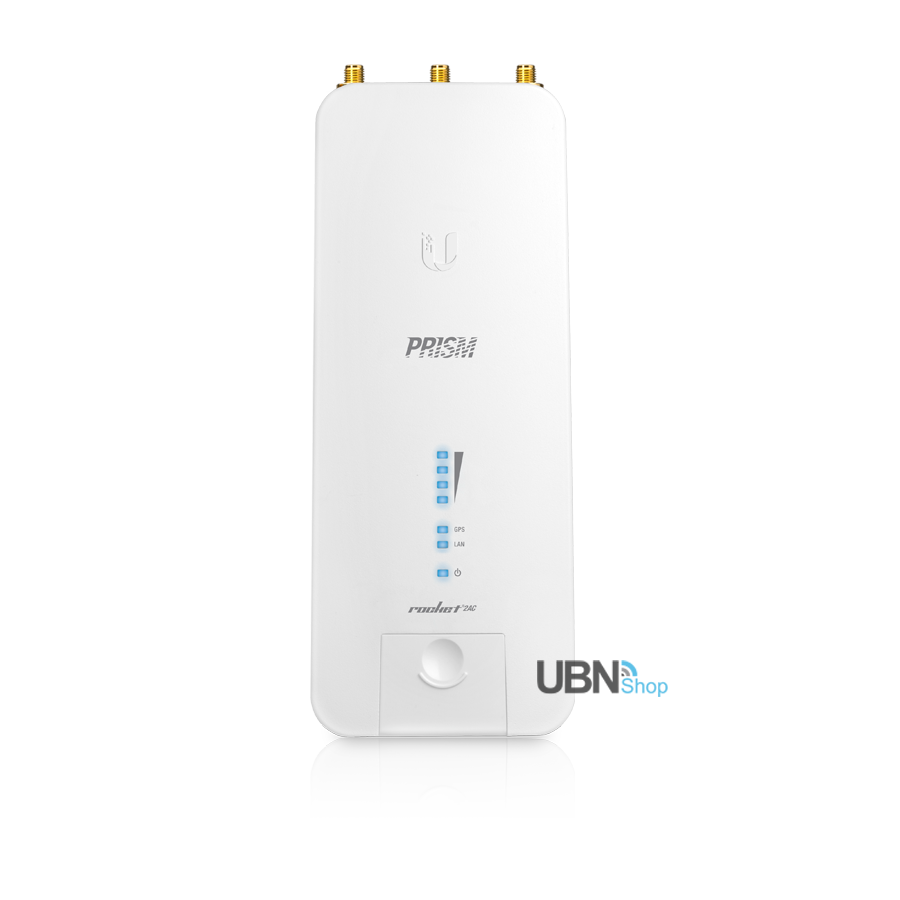

| LEDs | Power, LAN, (4) Signal Strength |
| Max. Power Consumption | 9.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| ESD/EMP Protection | ± 24kV Contact / Air for Ethernet |
| Shock and Vibrations | ETSI300-019-1.4 |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 2412 - 2472 |
| US/CA | 2412 - 2462 |
| Management Radio (MHz) | |
| Worldwide | 5150 - 5250 |
| US/CA | U-NII-3: 5725 - 5850 |
| SKU | 39017 |
| Model # | R2AC |
| Barcode # | 817882027274 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4800kg |
| Shipping Width | 0.040m |
| Shipping Height | 0.090m |
| Shipping Length | 0.280m |
| Shipping Cubic | 0.001008000m3 |
| Unit Of Measure | ea |
