PrismStation 5AC Radio (No Antenna)


In Stock
PowerBeam 5AC 500 27dBi Gain 500mm With Radome

In Stock: YES

Shielded airMAX® ac BaseStation with airPrism® Technology

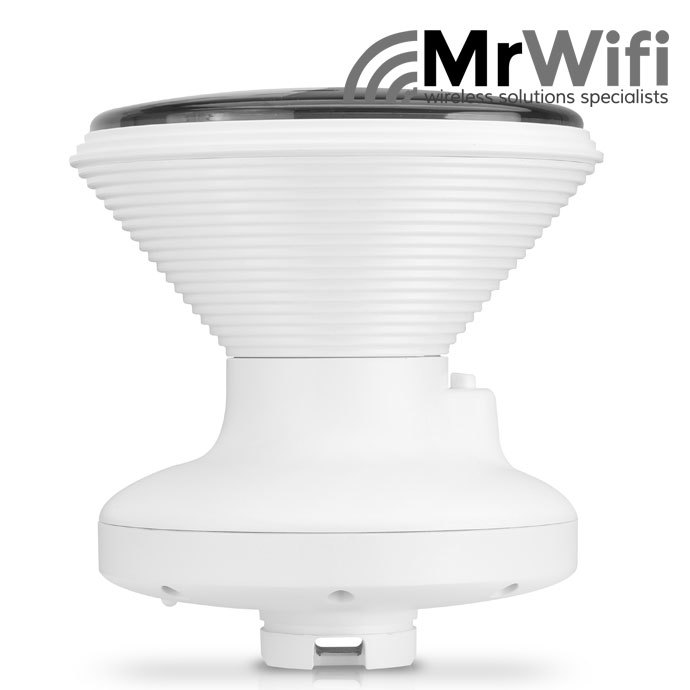

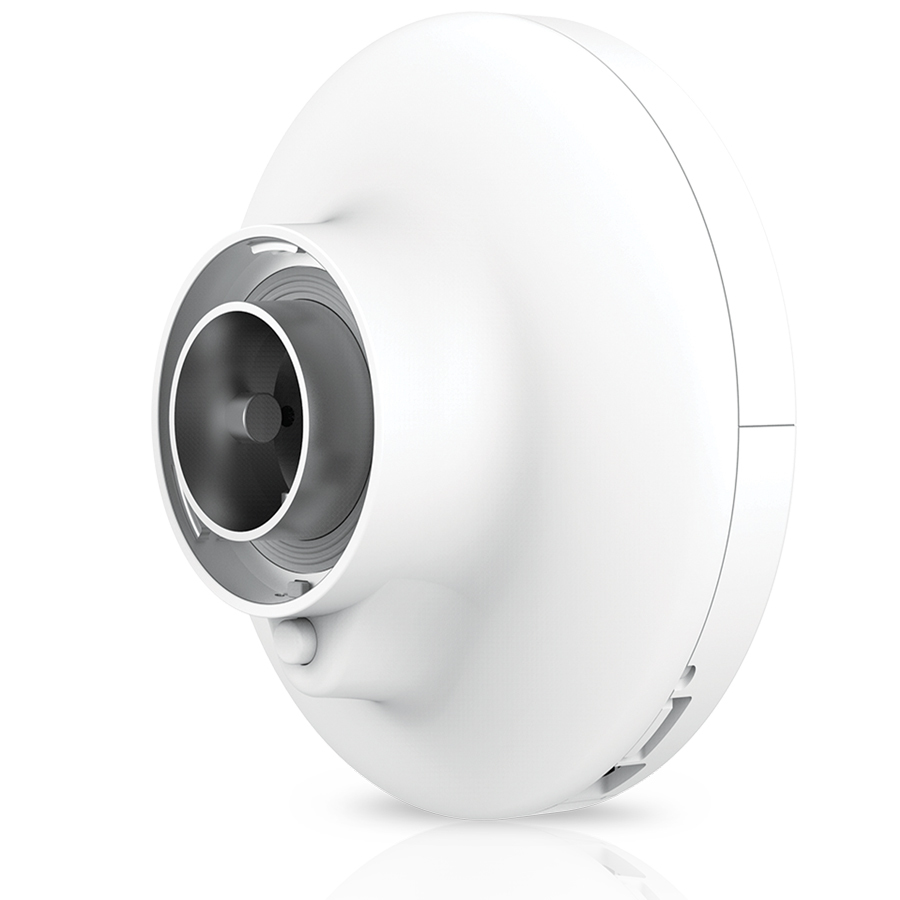

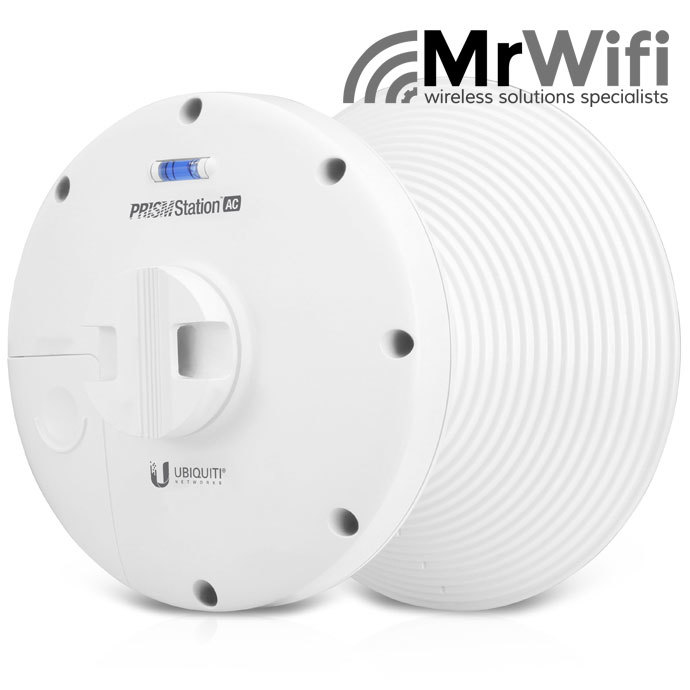

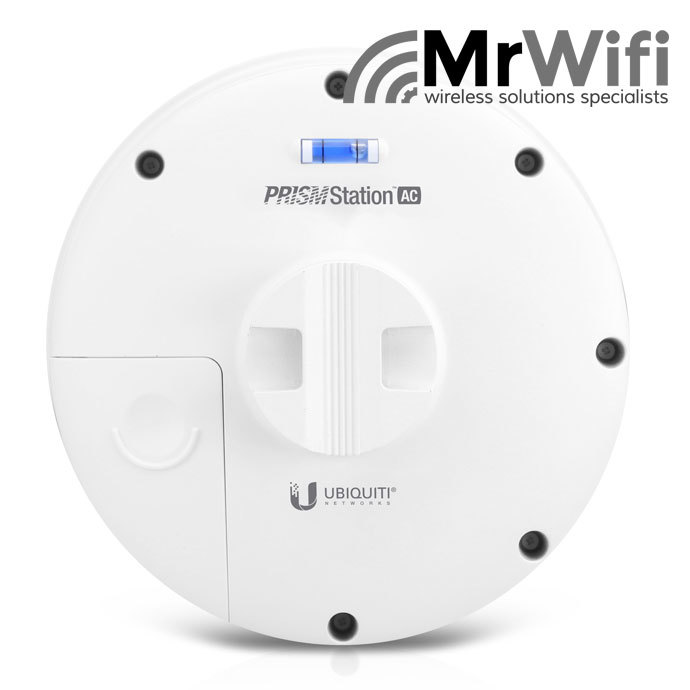

With a die-cast aluminum base and interchangeable antenna, the PrismStationTM AC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilizing Ubiquiti's advanced airMAX® ac processor, the PrismStationTM delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles).

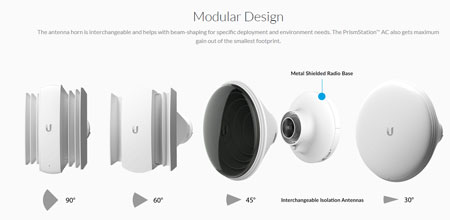

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The PrismStationTM AC also gets maximum gain out of the smallest footprint.

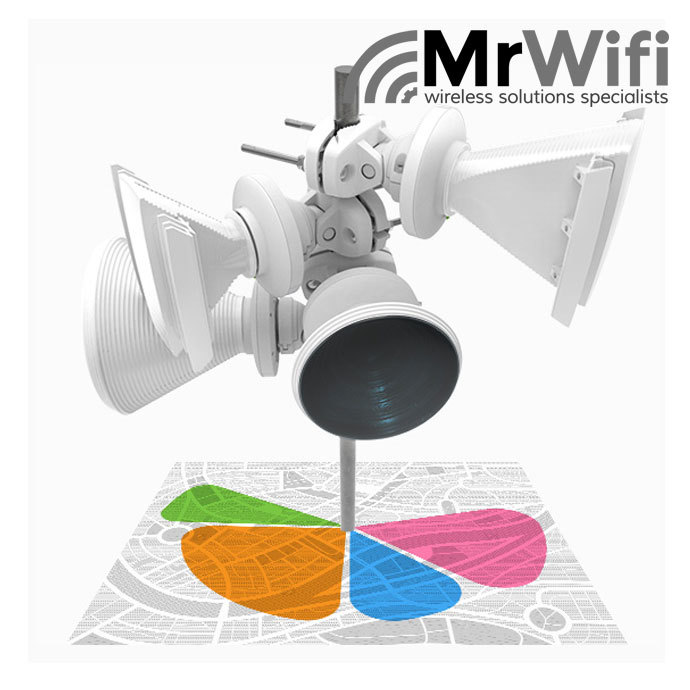

The PrismStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

PrismStationTM AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity
The PrismStation 5AC directs RF energy in a tighter beamwidth using one of these compatible antennas*:

  • Horn-5-30
  • Horn-5-45
  • Horn-5-60
  • Horn-5-90
  • U-OMT-Dish

With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

NOTE: Does not Include Antennas. Radio Only





PrismStation 5AC

Package Includes

  • 1 x PrismStation AC
  • 1 x GPS Antenna
  • 1 x Metal Strap
  • 1 x Mounting Bracket
  • 1 x Pole Clamp
  • 2 x Carriage Bolts
  • 2 x Flange Nuts
  • 1 x Allen Wrench
  • 1 x Gigabit PoE (24V, 1A) with Mounting Bracket
  • 1 x Power Cord
  • Quick Start Guide

PrismStation 5AC - Specifications

PrismStation - 5AC
Without Horn Antenna
Mounting Hardware* Only
174 x 174 x 184 mm (6.85 x 6.85 x 7.24")
155 x 155 x 104 mm (5.16 x 5.16 x 4.09")
83 x 117 x 69 mm (3.27 x 4.61 x 2.72")
Without Horn Antenna
Mounting Hardware* Only
1.07 kg (2.36 lb)
0.77 kg (1.70 lb)
0.79 kg (1.74 lb)
Gain 14 dBi
Beamwidth 45° (Default Horn)
Networking Interface (1) 10/100/1000 Ethernet Port
RF Connector (1) GPS
LEDs Power
Max. Power Consumption 10W
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Wind Loading 31 N @ 200 km/h (7 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Operating Temperature 40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Mounting Pole-Mount (Kit Included)
ESD/EMP Protection ± 24kV Contact/Air
Certifications CE, FCC, IC

Shipping Specifications

Barcode # 817882022668
Brand Ubiquiti
Shipping Weight 1.9000kg
Shipping Width 0.215m
Shipping Height 0.137m
Shipping Length 0.294m
Shipping Cubic 0.008660000m3
Unit Of Measure ea
