LiteBeam 5AC Gen2

LBE‑5AC‑Gen2

$140.25
In Stock

2x2 MIMO airMAX® ac CPE

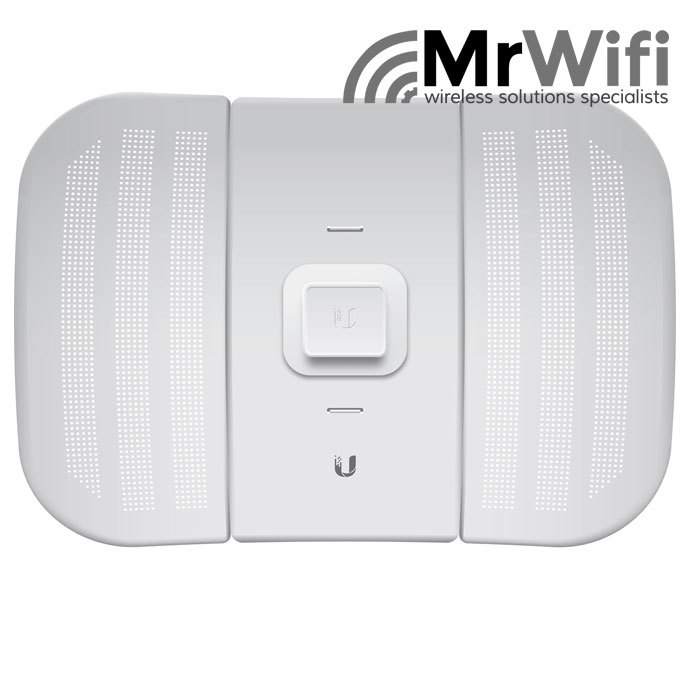

The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing. It also offers the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting. A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.

High-Gain, Directional, 2x2 MIMO Antenna -
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Improved Mounting and Surge Protection -
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.

Management Wi-Fi Radio -
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

High-Gain, Directional, 2x2 MIMO Antenna -
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.







Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

(LBE-5AC-GEN2)

LiteBeam 5AC Gen2 - Specifications

Package Includes

  • 1 x Antenna Feed
  • 1 x Center Reflector Panel
  • 2 x Side Reflector Panels
  • 1 x Feed Receiver
  • 1 x Azimuth Mount
  • 1 x Elevation Mount
  • 1 x Metal Strap
  • 1 x Knob Kit
  • 1 x Gigabit PoE (24V, 0.3A) with Mounting Bracket
  • 1 x Power Cord
  • Quick Start Guide

LiteBeam 5AC Gen2 - Specifications

LITEBEAM LBE-5AC-GEN2
Dimensions 358 x 271.95 x 272.50 mm (14.09 x 10.71 x 10.73")
Weight Without Mount: 800 g (1.76 lb), With Mount 980 g (2.16 lb)
Networking Interface (1) 10/100/1000 Ethernet Port
Gain 23 dBi
Max. Power Output 25 dBm
Max. Power Consumption 7W
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Wind Survivability 200 km/h (125 mph)
Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Operating Frequency Worldwide: 5150-5875 MHz
USA: U-NII-1: 5150-5250 MHz, U-NII-2-A: 5250-5350 MHz, U-NII-2C: 5470-5725 MHz, U-NII-3: 5725-5850 MHz



Shipping Specifications



SKU LBE-5AC-GEN2
Model # LBE‑5AC‑Gen2
Barcode # 817882023399
Brand Ubiquiti
Shipping Weight 1.2000kg
Shipping Width 0.170m
Shipping Height 0.126m
Shipping Length 0.312m
Shipping Cubic 0.006683000m3
Unit Of Measure ea
