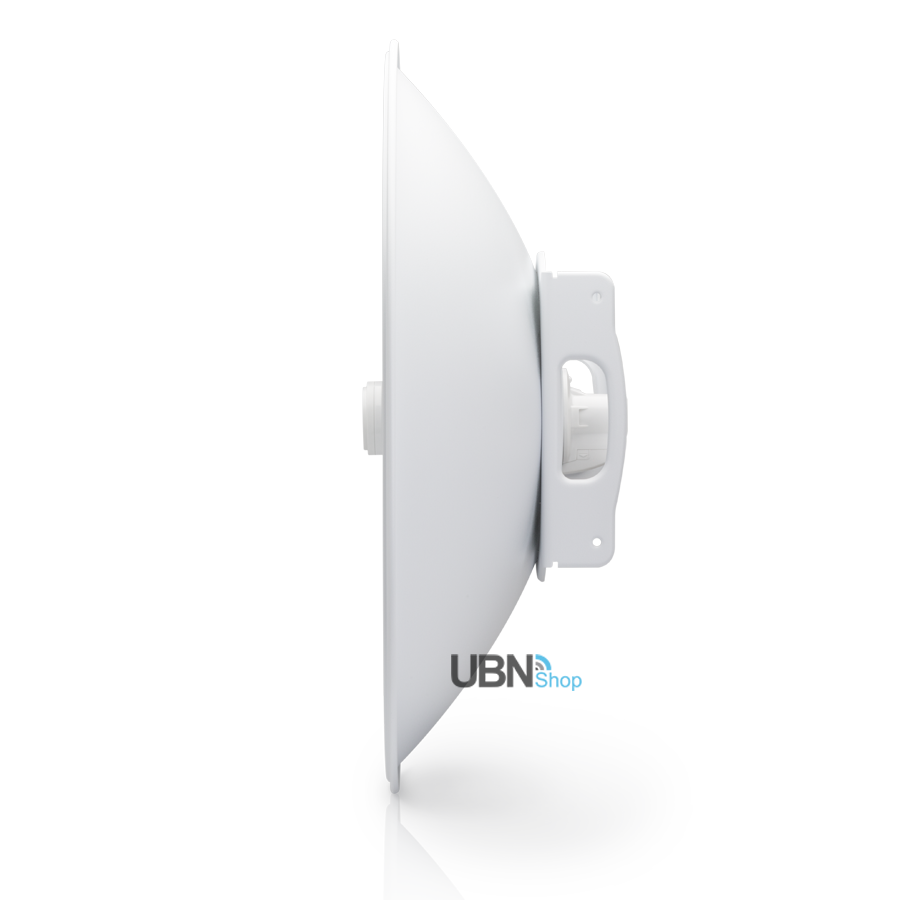

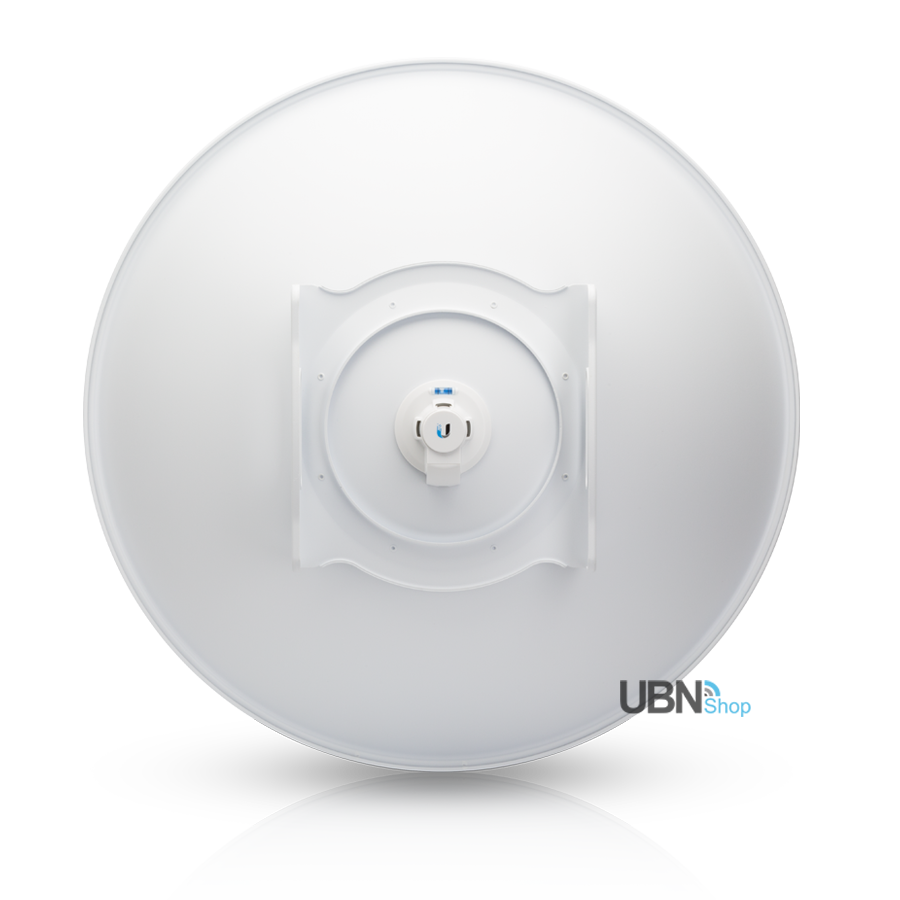

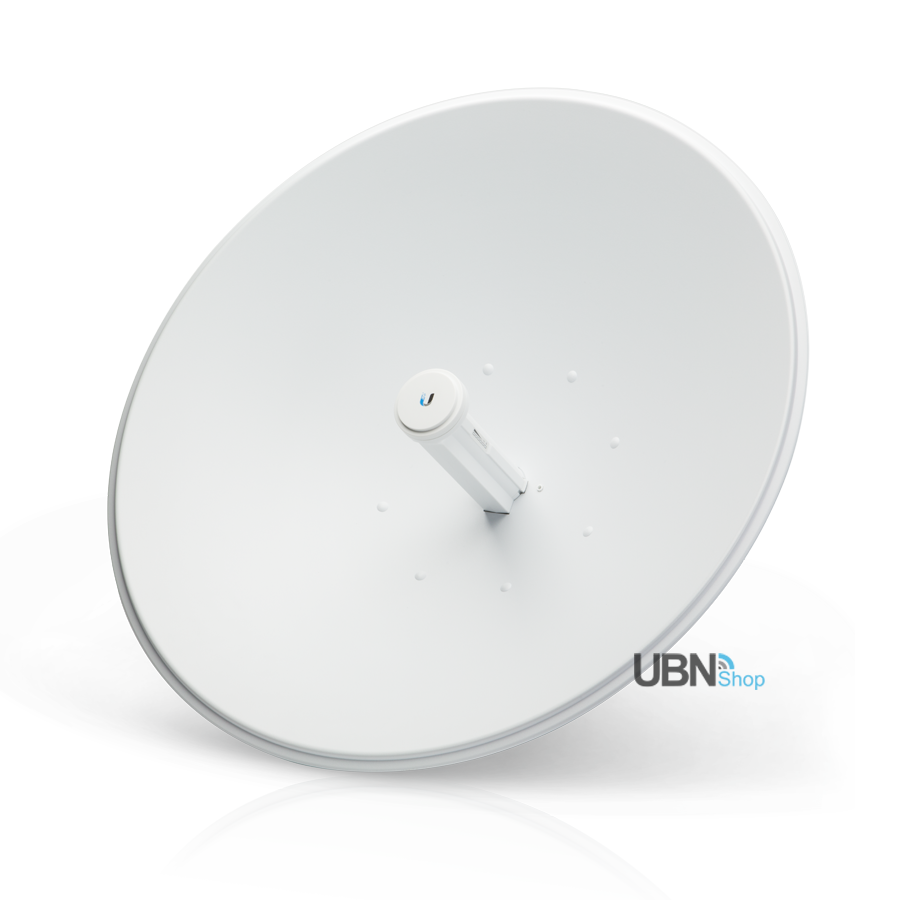

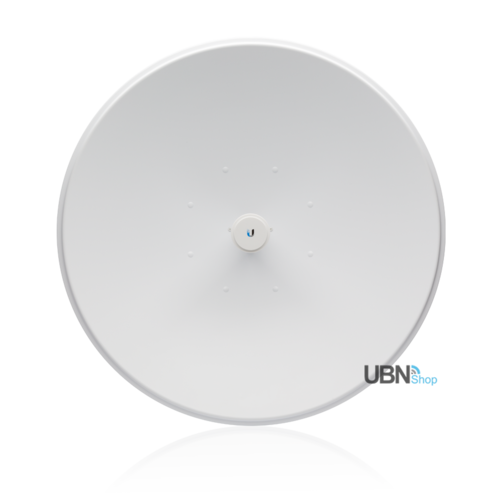

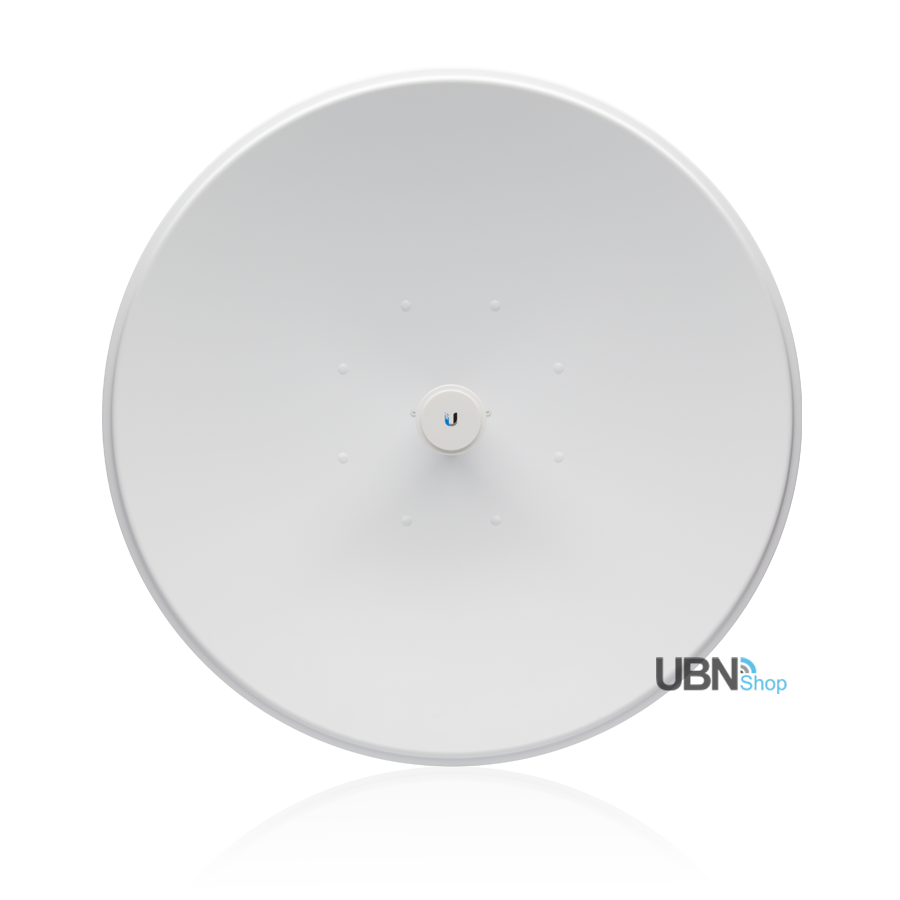

PowerBeam 5AC 620mm Bridge
PBE‑5AC‑620
High-Performance airMAX® ac Bridge
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
(39010)
PowerBeam® 5GHz 620mm ac Bridge
Package Includes
- 1 x Dish Reflector with Mounting Bracket
- 1 x Antenna Feed
- 1 x Rear Housing
- 1 x Support Arm
- 1 x Upper Pole Bracket Assembly
- 1 x Lower Pole Bracket
- 1 x Brace
- 4 x Screws
- 5 x Hex Head Bolts
- 5 x Lock Washers
- 5 x Flat Washers
- 2 x Stabilizer Brackets
- 2 x M10x100 Bolts
- 2 x M10 Flange Nuts
- 4 x M8 Flange Nuts
- 1 x Mounting Bracket
- 2 x Pole Clamp
- 4 x Long Carriage Bolts (M8x150)
- 1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
- 1 x Power Cord
- Quick Start Guide
PowerBeam® 5GHz 620mm ac Bridge - Specifications
| POWERBEAM PBE-5AC-620 | |
|---|---|
| Dimensions | 620 x 620 x 386 mm (24.41 x 24.41 x 15.2") |
| Weight | 6.4 kg (14.11 lbs) |
| Operating Frequency | Worldwide: 5150-5875 MHz USA: 5725-5850 MHz |
| Gain | 29 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 16 MB Flash |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.6:1 |
| Channel Sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Shock and Vibrations | ETSI300-019-1.4 |
| Wind Loading Radome Excluded Radome Included |
1510 N @ 200 km/h (340 lbf @ 125 mph) 1830 N @ 200 km/h (411 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
Shipping Specifications
| SKU | 39010 |
| Model # | PBE-5AC-620 |
| Brand | Ubiquiti |
PowerBeam® 5GHz 620mm ac Bridge - Documents
