4G LTE Antenna Magnetic Base Omni Directional Antenna 698-2700MHz NMO. The "FAT BOY" Online Australia

ANT-OA-FAT-O4G-MAG-SMA-M


OMNI ANTENNA 360° Vehicle Outdoor, The "FAT BOY" SMA Male Connector | Gain 4.5dBi, 698-2700MHz

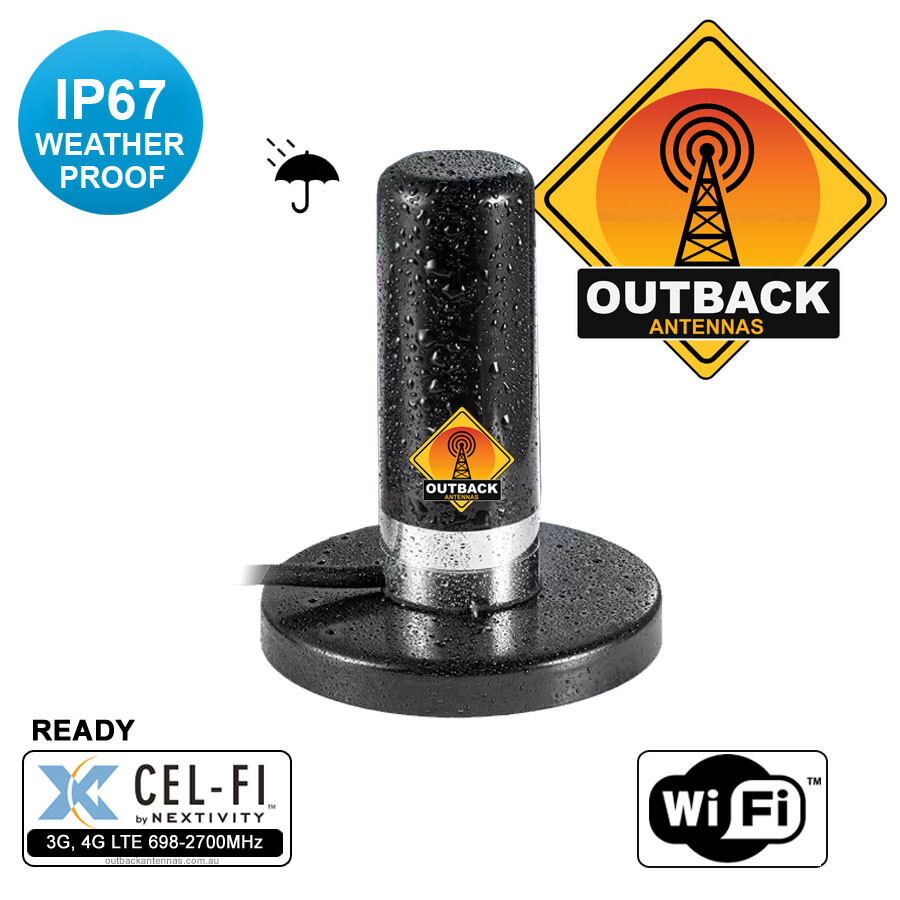

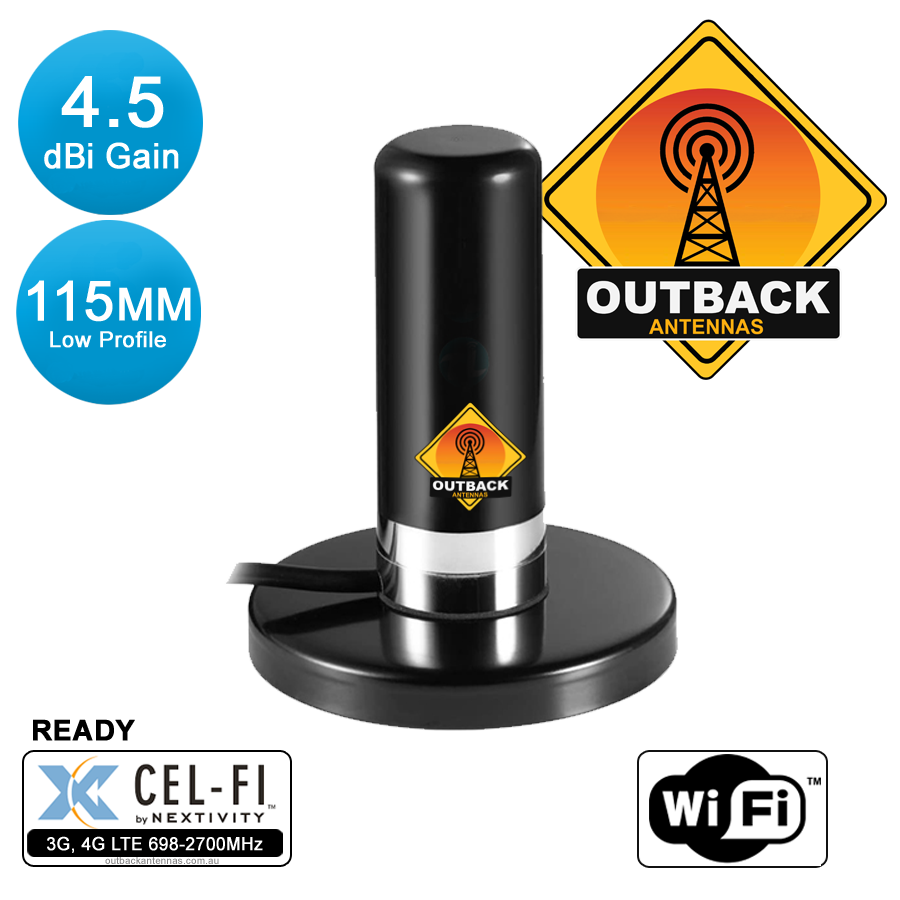

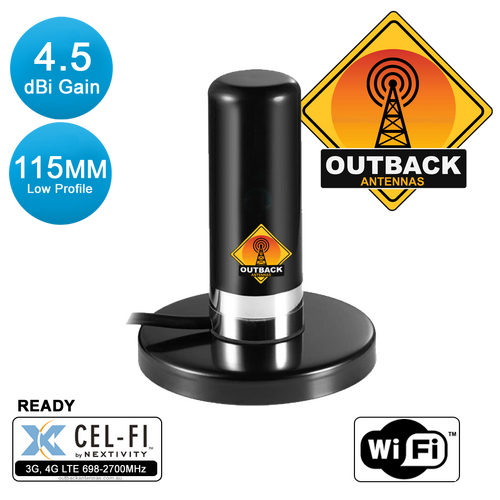

The FAT BOY Outdoor Omni Directional Antenna by Outback Antennas

The "FAT BOY" Outdoor Omni Vehicle antenna is a low profile vehicle antenna, whilst it is pleasing to the eye it's designed to operate on the cellular network with all Australian mobile carriers, operating between 698-2700MHz 3G, 4G LTE, 4GX and 2.4GHz Wi-Fi. The "FAT BOY" comes with the NMO Magnetic Base making it simple to position for maximum efficacy.

Whilst it is a low profile antenna it offers a 4.5dBi gain and is suitable as an outdoor antenna with a weather rating of IP66. Perfect for outdoor mobile repeater applications.

Features

  • Suitable for all mobile carriers
  • NMO Magnetic Base Antenna
  • Provides a 4.5dbi gain for 698-2700MHz
  • Includes RG58 cable x 5m Length
  • Short cable tail with SMA Male connector
  • Magnetic Mountable
  • Weather rating IP66
  • Ideal for Cel-Fi GO repeater applications for Vehicles. RV's, Marine and Caravan
  • or 2.4Ghz Wi-Fi Applications

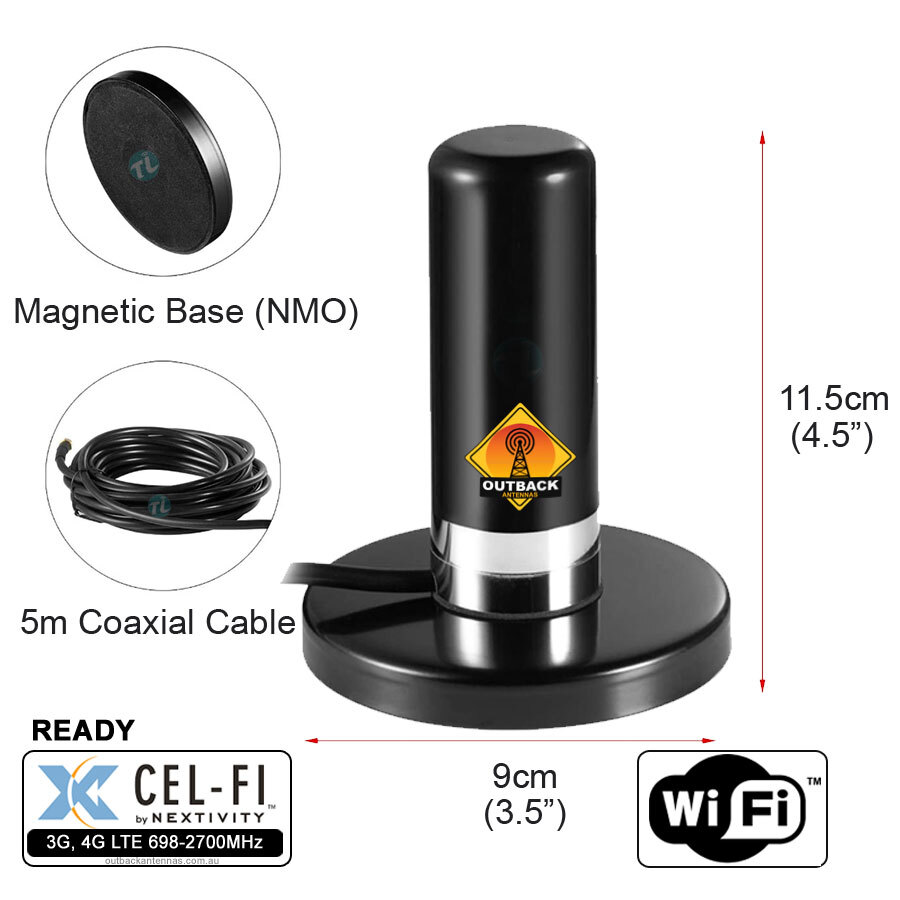

Dimensions: 90mm Ø x 115mm L

Weight: 500g

(ANT-OA-FAT-O4G-MAG-SMA-M)

The "FAT BOY" 4G LTE Antenna Omni Directional Antenna 698-2700MHz

Pack Includes:

  • 1 x The THE "FAT BOY" 4G LTE Antenna Omni Directional Antenna 698-2700MHz
  • 1 x Magnetic Mount Bracket



The "FAT BOY" 4G LTE Antenna Omni Directional Antenna 698-2700MHz - SPECIFICATIONS



Electrical Characteristics
Frequency Range (MHz) 698-2700MHz
Polarization Vertical
Gain (dBi) 4.5
3dB Beamwidth H: 360°       E: 60°
VSWR   ≤1.5
Input Impedance   (Ω) 50
Maximum Power   (W) 100
Lightning Protection DC grounding
Mechanical Characteristics

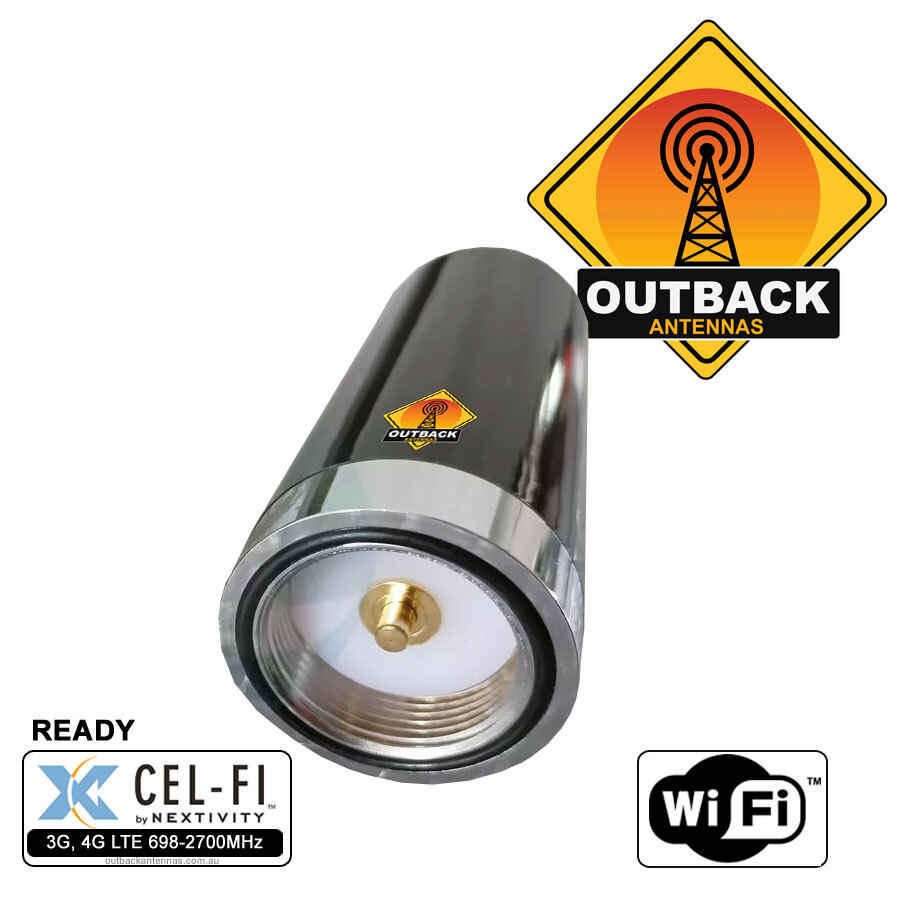

Connector type Type SMA Male
Mount Type Magnetic Mount
Cable length (Meter) 5M
Radome material UV-ABS, Stainless Steel
Mount way Magnetic NMO
Reflector material Brass
Dimensions (mm) 90mm Ø x 115mm L
Weight (g) 500g
Environmental Characteristics
Noise Factor (dBi) ≤1.5
Waterproof IP66
Operating Temperature (℃) -30-+60°C
Relative Humidity Up to 95%
ROHS Compliant yes



SHIPPING SPECIFICATIONS

SKU ANT-OA-FAT-O4G-MAG-SMA-M
Model # ANT-OA-FAT-O4G-MAG-SMA-M
Barcode # 4.81E+11
Brand OUTBACK ANTENNAS
Shipping Weight 0.5000kg
Shipping Width 0.090m
Shipping Height 0.090m
Shipping Length 0.115m
Shipping Cubic 0.000932000m3
Unit Of Measure ea
