10-Port Gigabit Router with PoE Passthrough and 2 SFP Ports

The EdgeRouter 12 is a high-performance Gigabit Router with PoE flexibility. With increased performance over the previous generation of routers, the EdgeRouter 12 delivers up to 3.4 million pps for 64-byte packets. Ten Gigabit Ethernet ports offer copper connectivity, while two SFP ports offer fiber connectivity. The EdgeRouter 12 supports Layer-2 switching and scalable configuration using EdgeOS or the Ubiquiti Network Management System (UNMS).



Compatible with RackMount (ER-RMKit) - Sold separately

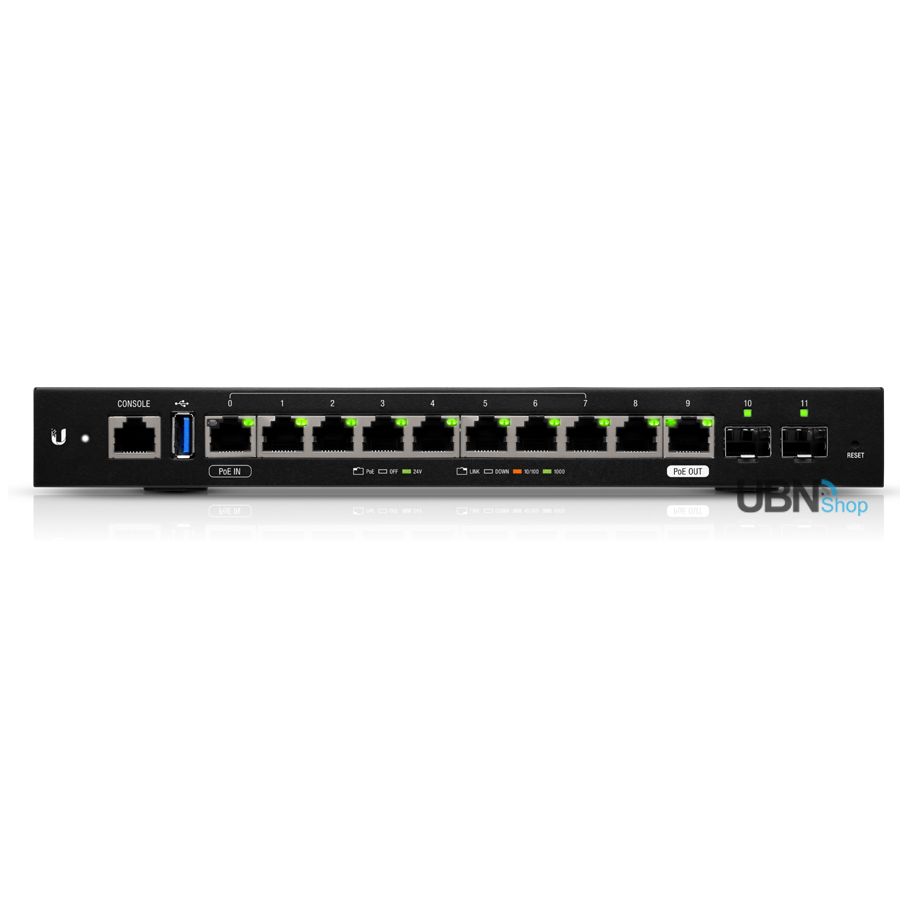

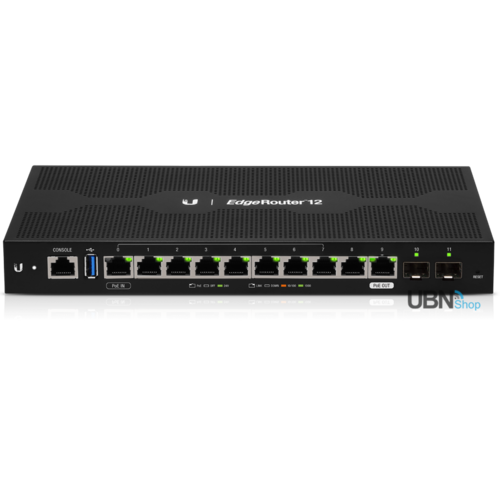

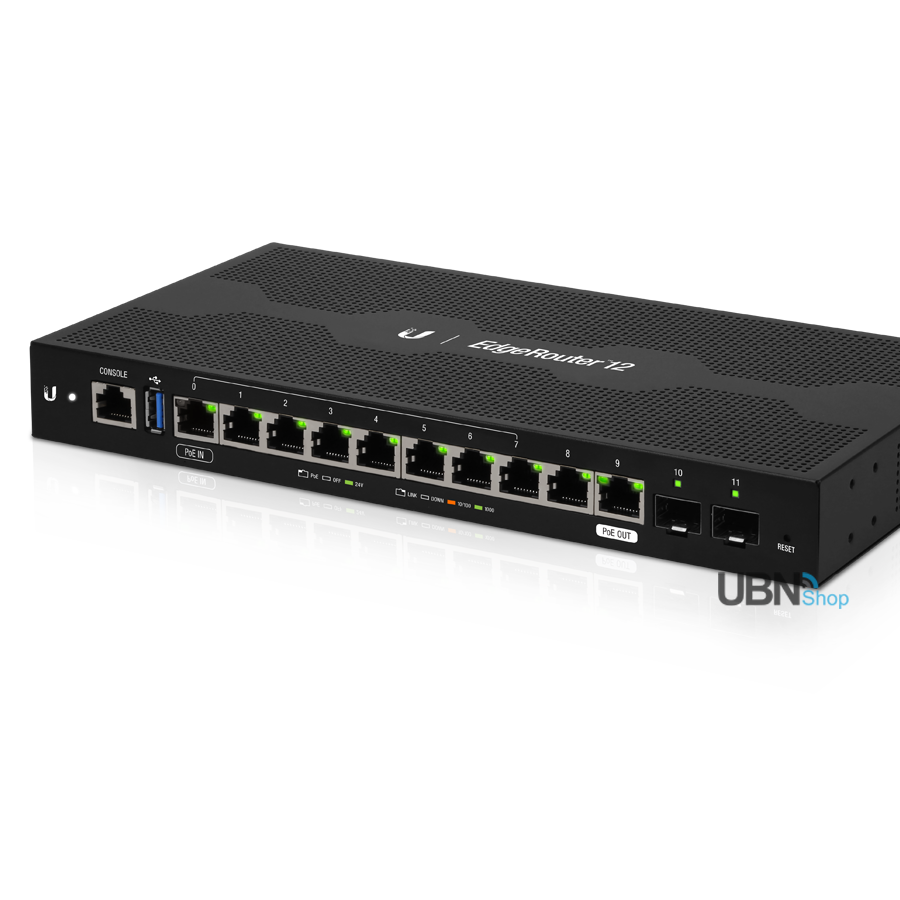

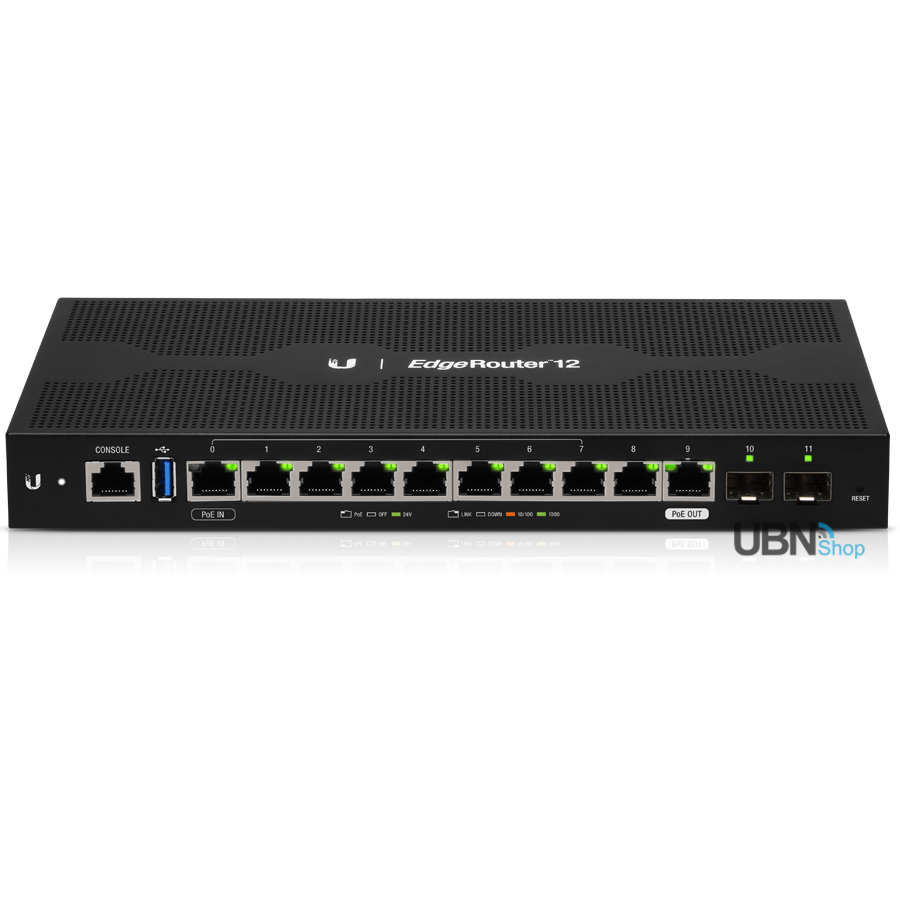

EdgeRouter 12 (Model: ER-12)

  • (10) Gigabit RJ45 routing ports
  • 24V PoE input on port 0
  • 24V PoE passthrough option on port 9
  • Ports 0-7 can be configured for line-rate Layer 2 switching
  • (2) Gigabit SFP ports
  • 3.4 million packets per second for 64-byte packets
  • 6.8 Gbps for packets 1518 bytes or larger in size
  • Silent, fanless operation
  • Compact, durable metal case



EdgeRouter 12

Package Includes

  • 1 x EdgeRouter 12
  • 2 x Mounting Screws
  • 2 x Wall Mount Anchors
  • 1 x Ground Screw
  • 1 x Power Adapter (24V, 2.5A)
  • 1 x Cable Clip
  • 1 x Quick Start Guide

EdgeRouter 12 - Specifications

EDGEROUTER ER 12
Dimensions 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
Weight 700 g (1.54 lb)
Max. Power Consumption 20W (Excludes PoE Output)
Power External AC Power Adapter, 24W (24V, 1A) (Included)
24V Passive PoE
Power Input
AC
24V Passive PoE
110 - 240VAC, 50/60 Hz
20 - 30V
Button Reset
LEDs
Data Ports
SFP Data Port
Speed/Link/Activity, PoE (Ports 0 and 9 only)
Link/Activity
Networking Interfaces
Management

Networking
(1) RJ45 Serial Port
(10) Ethernet Ports (Default Port 0)
(10) 10/100/1000 RJ45 Ports
(2) 1 Gbps SFP Ports
Layer 3 Forwarding Performance
Packet Size: 64 Bytes
Packet Size: 1518 Bytes or Larger
3,400,000 pps
6.8 Gbps (Line Rate)
Processor 4-Core 1 GHz, MIPS64
System Memory 1 GB DDR3 RAM
On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
Mounting Rack*
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
*With use of Rack Mount Kit, model ER-RMKIT
POE
PoE Interfaces
PoE In
PoE Out		 (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
(1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
Passive PoE Max. Wattage Per Port 20W (24V, 0.83A)
Passive PoE Output DC/PoE Passthrough

Shipping Specifications

SKU ER-12
Model # ER-12
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 1.0000kg
Shipping Width 0.140m
Shipping Height 0.050m
Shipping Length 0.320m
Shipping Cubic 0.002240000m3
Unit Of Measure ea
