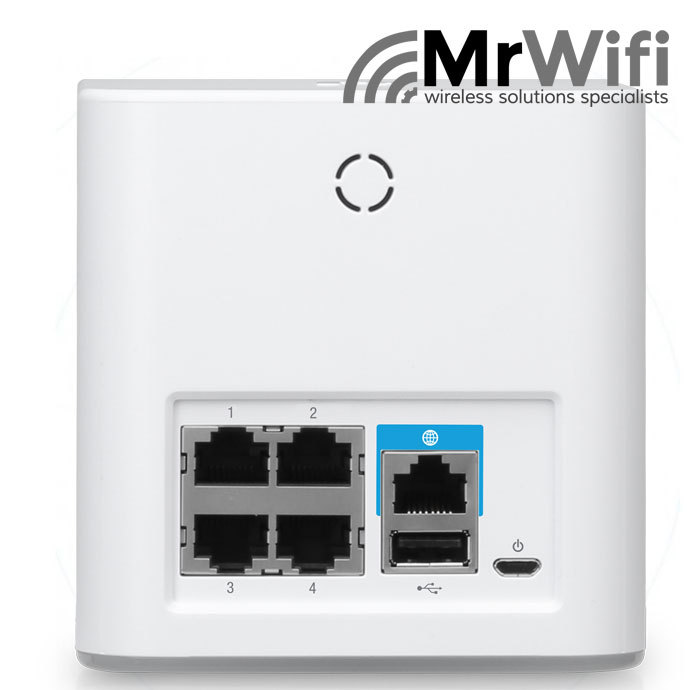

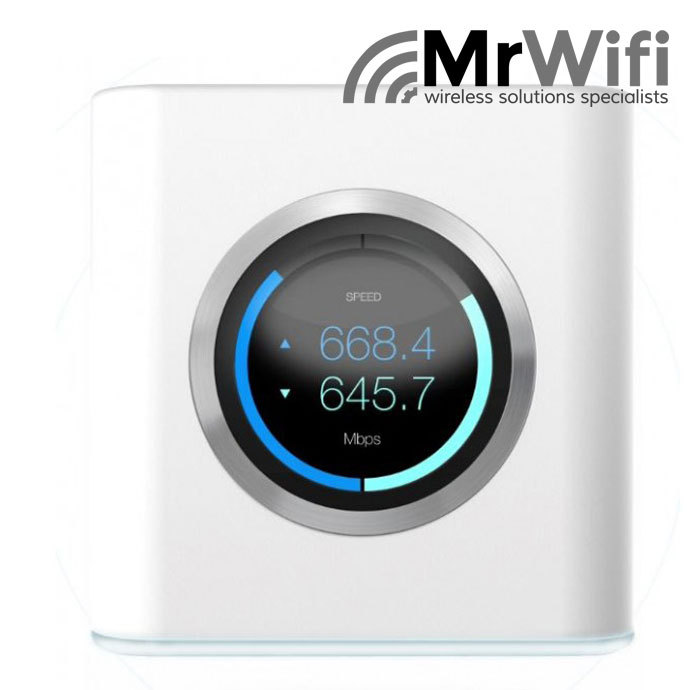

AmpliFi HD Mesh Router
AFi-R
Not Just a Wi-Fi Router, It's a Mesh Wi-Fi System
AmpliFi is more than a common home router: it’s the ultimate Wi-Fi system. With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced antenna technology to bring ubiquitous Wi-Fi coverage to any home.
This is Ubiquiti’s first foray into home networking and it’s an out-of-the-ballpark success. The AmpliFi HD is a beautiful mesh networking system ... with enough performance and range to shatter every speed record we have on the books.
Beautifully Designed:
AmpliFi’s uncompromising industrial design is meant to complement your home. Show it off proudly; your router is no longer something to hide.

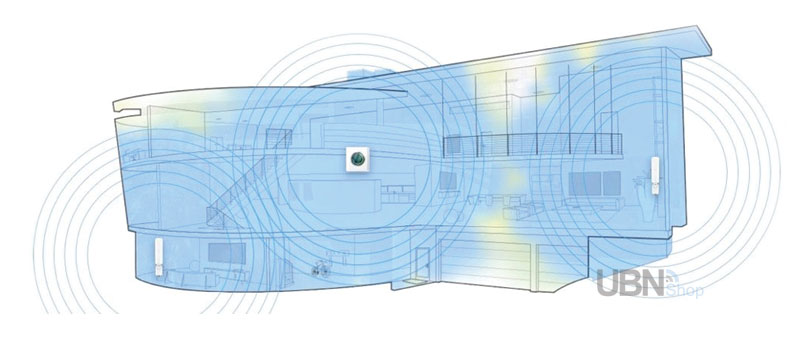

Home Wi-Fi Mesh Technology
AmpliFi’s multi-radio Wi-Fi system eliminates dead spots utilizing mesh point technology to provide premium, ubiquitous Wi-Fi coverage throughout your home.

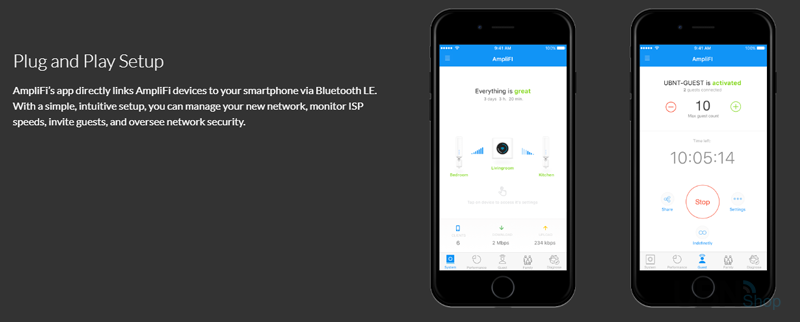

AMPLIFI PLUG and PLAY
(AFi-R)
AmpliFi HD Mesh Router
Package Includes
- 1 x AmpliFI HD Mesh Router
- 1 x Power Adapter
- 1 x Ethernet Cable
- Quick Start Guide
AmpliFi HD Mesh Router - Specifications
AmpliFi Specifications |
Max TX Power | 26 dBm |
| Radios | 2 | |
| MIMO Chains | 6 | |
| Speed | 1,750 Mbps | |
Common Specifications |
||
| Dimensions | 99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92") | |
| Weight | 410 g (14.46 oz) | |
| Networking Interface | Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN | |
| Maximum Power Consumption | 11W | |
| Buttons | Reset | |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity | |
| Display | 1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color | |
| Wi-Fi Standards | 802.11b/g/a/n/ac | |
| Power Save | Supported | |
| Wireless Security | WPA2-PSK AES/TKIP | |
| Operating Temperature | 14 to 131° F (-10 to 55° C) | |
| Operating Humidity | 95% Noncondensing | |
| Certifications | FCC / CE / IC | |
Supported Data Rates |
802.11ac | 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Shipping Specifications
| SKU | AFi-R |
| Model # | AFi-R |
| Barcode # | 8.18E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.210m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.012075000m3 |
| Unit Of Measure | ea |
AmpliFi HD Mesh Router - Documents
Datasheet AmpliFi HD Mesh RouterBe The First To Review This Product!
