AmpliFi Alien Router WiFi 6 with Alien Mesh Point

AFI-ALN

$1,608.75
In Stock

Tri-Band Wi–Fi 6 Router with Alien Mesh Point. Polished Performance.



Ubiquiti Amplifi Alien Mesh System - Wi-Fi 6 - Includes 1x Alien Mesh Point, 4x Gigabit Ethernet Ports on Router, Touch Screen Display

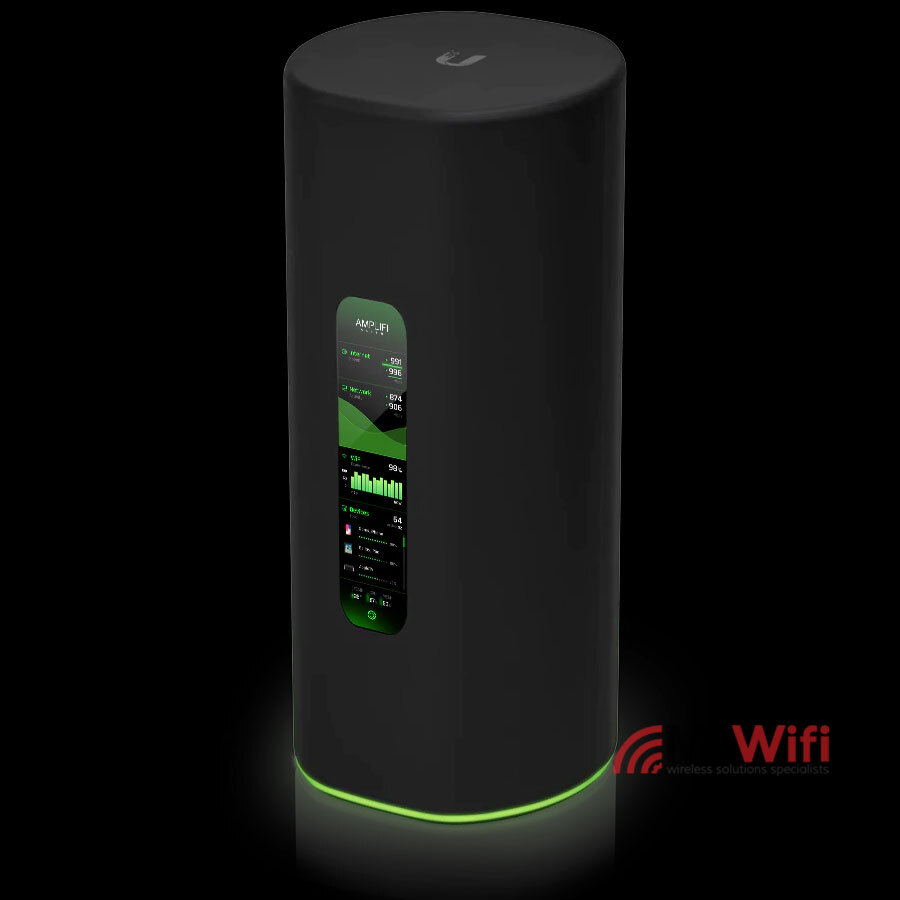

AmpliFi Alien Mesh Router

With the latest 802.11ax Wi-Fi 6 technology, AmpliFi Alien delivers 4x the overall network capacity and 2x the coverage while reaching true gigabit speeds. It features a tri-band radio with 2.4 GHz and 5 GHz 802.11ax radios optimized for Wi-Fi 6 performance. The dual 5 GHz radio configuration with a dedicated 5 GHz mesh link offers superior system performance. This combination pack comprises one AmpliFi Alien Router and one Amplifi Alien MeshPoint. The MeshPoint expands wireless range coverage and includes a Gigabit Ethernet port to extend wired connectivity.

Easily mesh multiple units over the air to build virtually unlimited Wi-Fi capacity in your home.

Features:
WiFi 6 performance
5 GHz 8x8 WiFi 6 radio (Max speed 4804 Mbps)
2.4 GHz 4x4 WiFi 6 radio (Max speed 1148 Mbps)
5 GHz 4x4 WiFi 5 radio (Max speed 1733 Mbps)
160 MHz bandwidth and DFS channel support
4-Port Gigabit Ethernet switch
Touchscreen display
Includes AmpliFi Teleport configuration-free VPN solution

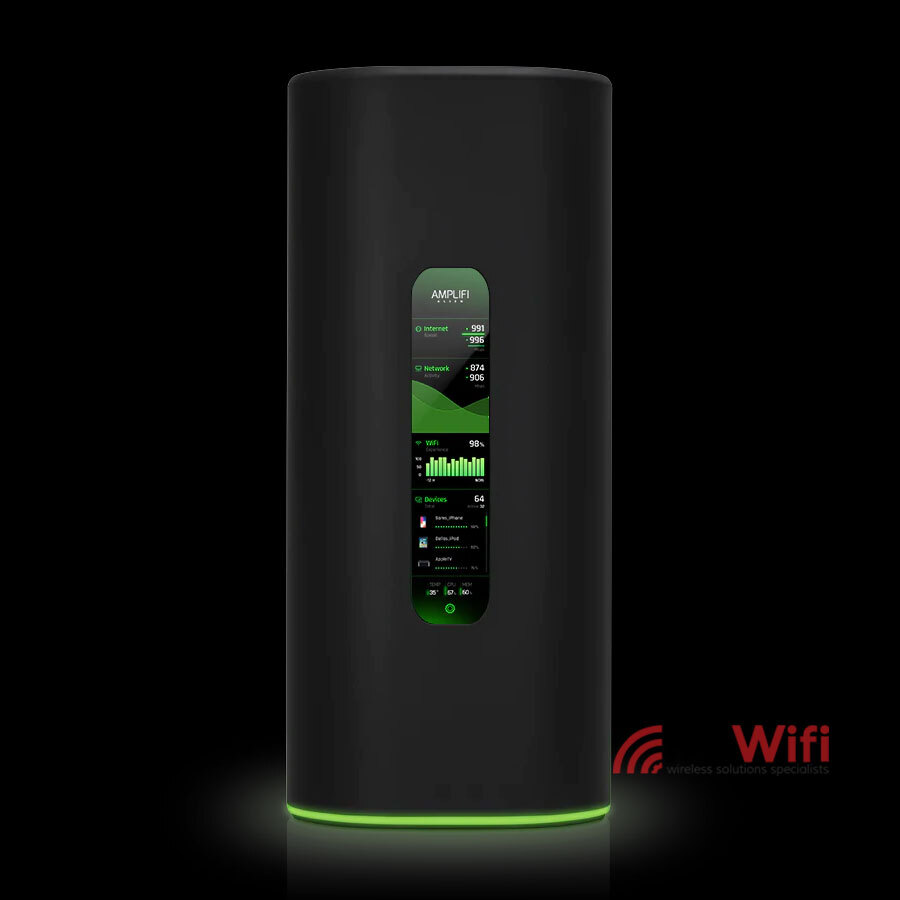

AmpliFi Mesh Router Intuitive Touch Screen

Intuitive Touch Screen

The vibrant touchscreen displays network status and provides instant controls.
For your convenience, set the display and the green LED ring automatically turns off.
Resolution
274 x 1268, 279 ppi
Color
Full Color
Size
4.7-inch (diagonal)
Controls
Touch Controls and Haptics



AmpliFi App. Simple Setup, Rich Controls.

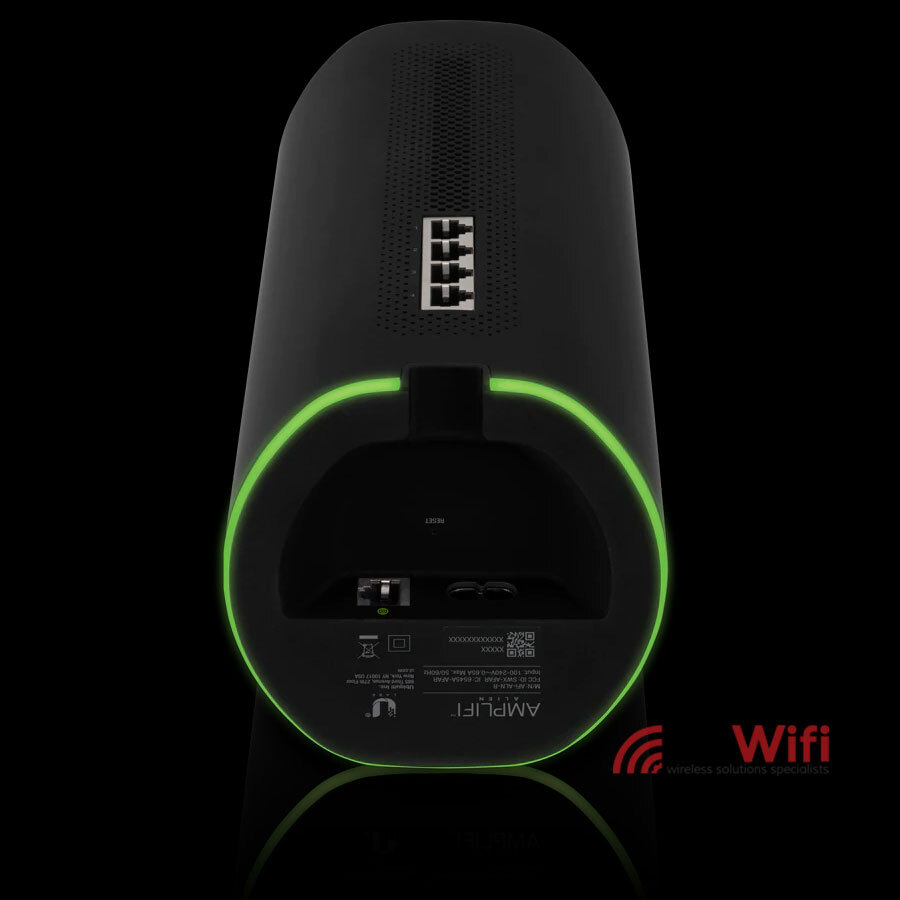

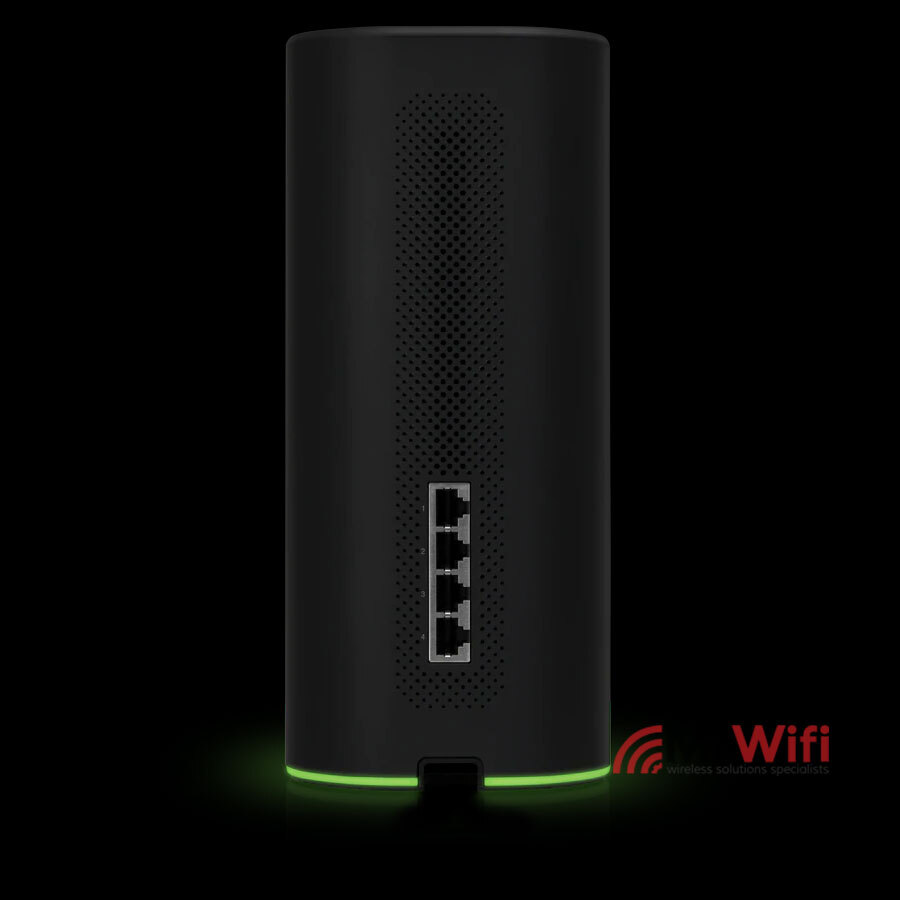

Flexible Interfaces

AmpliFi Alien is a powerful and secure router with a single Gigabit internet interface and internal power supply.
Each Alien router has an integrated LAN switch with 4 Gigabit Ethernet ports.
Bring Gigabit Ethernet into any room without pulling wires. Use Wi-Fi 6 for wireless connectivity and the LAN ports for local wired connectivity.
INTERNET
1 Gigabit WAN Port
LAN
4 Gigabit LAN Ports









AmpliFi Mesh Router Perfomance

Performance

AmpliFi Alien is optimized to provide your home network with the highest possible performance regardless of how many client devices are connected simultaneously. Utilizing MU-MIMO and OFDMA for communication across twelve Wi-Fi 6 spatial streams, Alien eliminates dead spots and increases total home network capacity by four times.

Alien also offers a separate 5 GHz radio with Wi-Fi 5 (802.11ac) speeds which you can dedicate to performance-critical devices and avoid competing for bandwidth with other devices on your home network.

Antenna
High-Performance Custom Antenna Array
Processor
2.2 GHz 64-Bit Quad-Core CPU
Wi-Fi 5
5 GHz Radio
Wi-Fi 6
5 GHz and 2.4 GHz Radios



AmpliFi App. Simple Setup, Rich Controls.

AmpliFi App.
Simple Setup, Rich Controls.

Set up your AmpliFi network in a minute with the included AmpliFi app.
User-friendly, yet feature-rich controls and statistics let you configure the AmpliFi Alien for your environment.
Always Know Who Is Using Your Network
Track ISP and System Performance
Guest Access, Simplified











Scalable Mesh Wi-Fi Technology - AmpliFi Alien Router

Scalable Mesh
Wi-Fi Technology

Simple and powerful Wi-FI 6 standard Mesh system that easily covers any home providing simultaneous 4K/8K UHD streaming and online gaming to multiple clients from any room.
8x8 Wi-Fi 6 connection between Router and Mesh
True wireless gigabit speeds without noticeable latency between Router and Mesh point
No limitations to expand your network with additional AmpliFi Alien routers
Zero configuration efforts, fast installation and speed test from router screen
Gigabit LAN port located on dedicated MeshPoint for wired connection





Buying AmpliFi Alien

Buy the most advanced Wi-Fi router available today and enjoy unmatched performance.
Double the coverage with a Mesh system comprising an AmpliFi Alien Router and Alien MeshPoint.

AmpliFi Alien Mesh Router Combinations

(AFI-ALN)

AmpliFi Alien Mesh Router WiFi 6

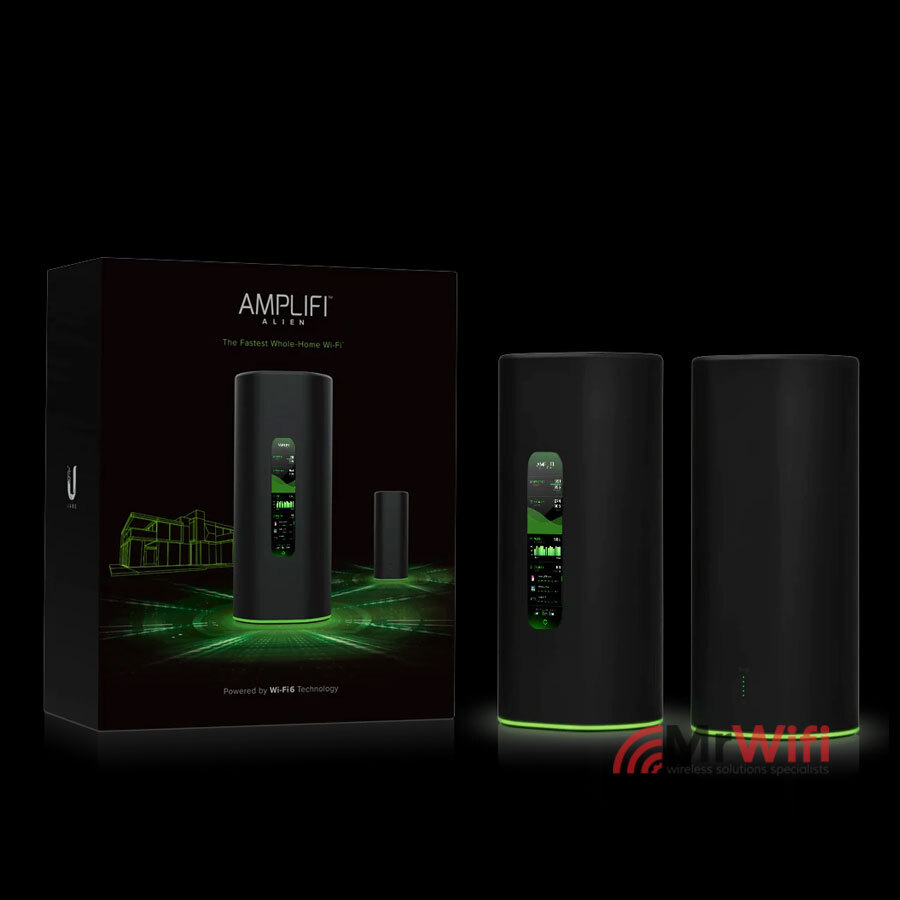

Package Includes

  • 1 x AmpliFi Alien Mesh Router WiFi 6
  • 1 x AmpliFi Alien Mesh Point
  • 1 x Power Adapter
  • 1 x Ethernet Cable
  • Quick Start Guide

AmpliFi Alien Mesh Router WiFi 6 - Specifications

AmpliFi Alien Router Specifications
Alien-Mesh-Router-Specifications
































Dimensions
110 x 110 x 250 mm (4.33 x 4.33 x 9.84")
Weight
1.2 kg ( 2.65 lb)
Max. TX Power
2.4 GHz: 23 dBm per chain, 5 GHz: 19 dBm per Chain (low-band)/ 20 dBm per Chain (high-band)
MIMO
2.4 GHz: 4x4 5 GHz: 4x4 (low-band) + 8x8 (high-band)
Speed
2.4 GHz: 1148 Mbps, 5 GHz: 1733 Mbps (low-band)/ 4804 Mbps (high-band)
Supported Bandwidths
20, 40, 80, 160 Mhz (5GHz)
20, 20/40 MHz (2.4Ghz)
Networking Interface
Wi-Fi; Gigabit Ethernet: (1) WAN, (4) LAN
Max. Power Consumption
35W
ESD/EMP Protection
± 24kV Air/Contact
Buttons
Reset
Antennas
(1) Internal Dual-Band Metal Stamp with 12 Polarity
Display
110.38 mm (4.7") Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Color
Wi-Fi Standards
Up to Wi-Fi 6
Power Save
Supported
Wireless Security
WPA2
Operating Temperature
14 to 113° F (-10 to 45° C)
Operating Humidity
5 to 95% Noncondensing
Certifications
FCC / IC
Supported Data Rates
802.11a
54 Mbps
802.11b
11 Mbps
802.11g
54 Mbps
802.11n
600 Mbps + 600 Mbps
802.11ac
1733 Mbps + 3466 Mbps
802.11ax (Available to Clients)
1148 Mbps + 4804 Mbps
Ports
LAN
(4) 1 Gbps LAN Ports
Internet
(1) 1 Gbps WAN Port
Power
(1) Power Port (Supports 100-224VAC)
What Comes in the Package?
1 Amplifi Alien Router
1 Power Cable (6.5 ft)
1 Ethernet Cable (4.9 ft)
Additional Data
Max. Client Count
120
Max. MeshPoint Count
Unlimited

AmpliFi Alien Mesh System Specification
Alien-Mesh-Router-Specifications
Alien-Mesh-System-Specifications
































Dimensions
110 x 110 x 250 mm (4.33 x 4.33 x 9.84")
Weight
1.2 kg (2.65 lb) + 1.12 kg (2.47 lb)
Max. TX Power
2.4 GHz: 23 dBm per chain, 5 GHz: 19 dBm per Chain (low-band)/ 20 dBm per Chain (high-band)
MIMO
2.4 GHz: 4x4 5 GHz: 4x4 (low-band) + 8x8 (high-band)
Speed
2.4 GHz: 1150 Mbps, 5 GHz: 1700 Mbps (low-band)/ 4800 Mbps (high-band)
Supported Bandwidths
20, 40, 80, 160 Mhz (5GHz)
20, 20/40 MHz (2.4Ghz)
Networking Interface
Wi-Fi; Gigabit Ethernet: (1) WAN, (4+1) LAN
Max. Power Consumption
70W
ESD/EMP Protection
± 24kV Air/Contact
Buttons
Reset
Antennas
(1+1) Internal Dual-Band Metal Stamp with 12 Polarity
Display
Router - 110.38 mm (4.7") Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Color; MeshPoint - No Display
Wi-Fi Standards
Up to Wi-Fi 6
Power Save
Supported
Wireless Security
WPA2
Operating Temperature
14 to 113° F (-10 to 45° C)
Operating Humidity
5 to 95% Noncondensing
Certifications
FCC / IC
Supported Data Rates
802.11a
54 Mbps
802.11b
11 Mbps
802.11g
54 Mbps
802.11n
600 Mbps + 600 Mbps
802.11ac
1733 Mbps + 3466 Mbps
802.11ax (Available to Clients)
1148 Mbps + 4804 Mbps
Ports
LAN
(4+1) 1 Gbps LAN Ports
Internet
(1) 1 Gbps WAN Port
Power
(1+1) Power Port (Supports 100-224VAC)
What Comes in the Package?
1 Amplifi Alien Router
1 AmpliFi Alien MeshPoint
2 Power Cable (6.5 ft)
1 Ethernet Cable (4.9 ft)
Additional Data
Max. Client Count
120
Max. MeshPoint Count
Unlimited

Shipping Specifications

SKU AFI-ALN
Model # AFI-ALN
Barcode # 810010075901
Brand Ubiquiti
Shipping Weight 1.3000kg
Shipping Width 0.262m
Shipping Height 0.138m
Shipping Length 0.314m
Shipping Cubic 0.011353000m3
Unit Of Measure ea
