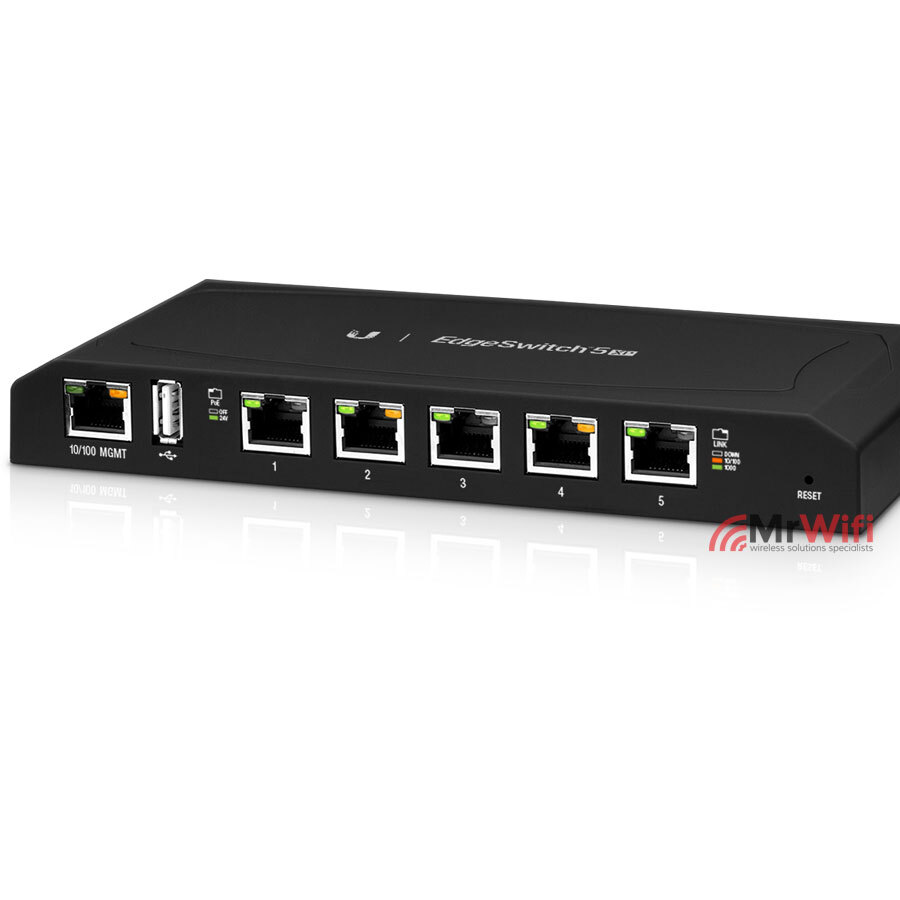

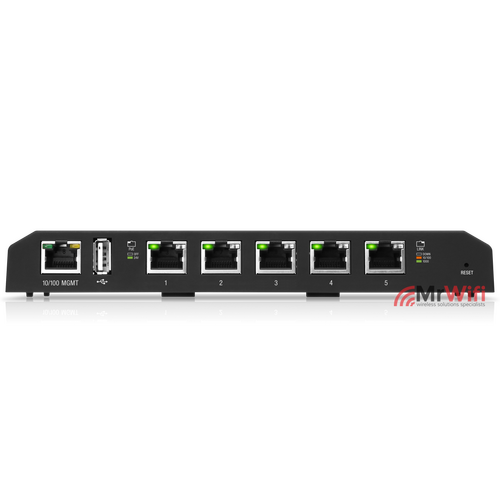

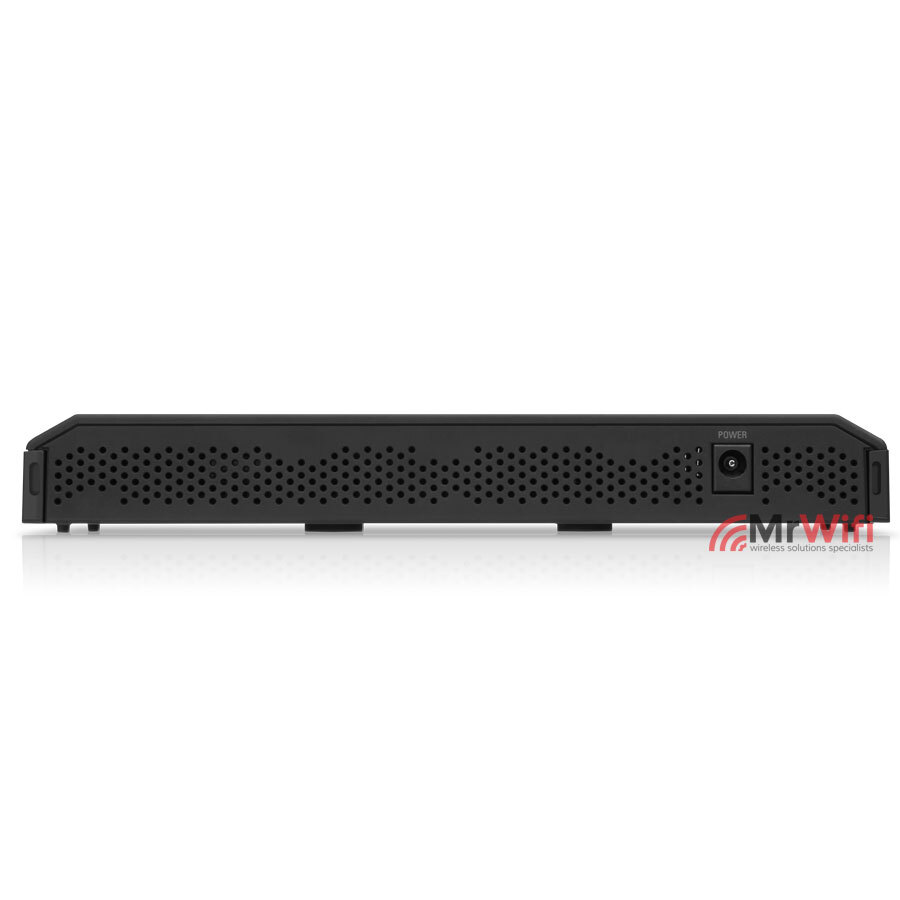

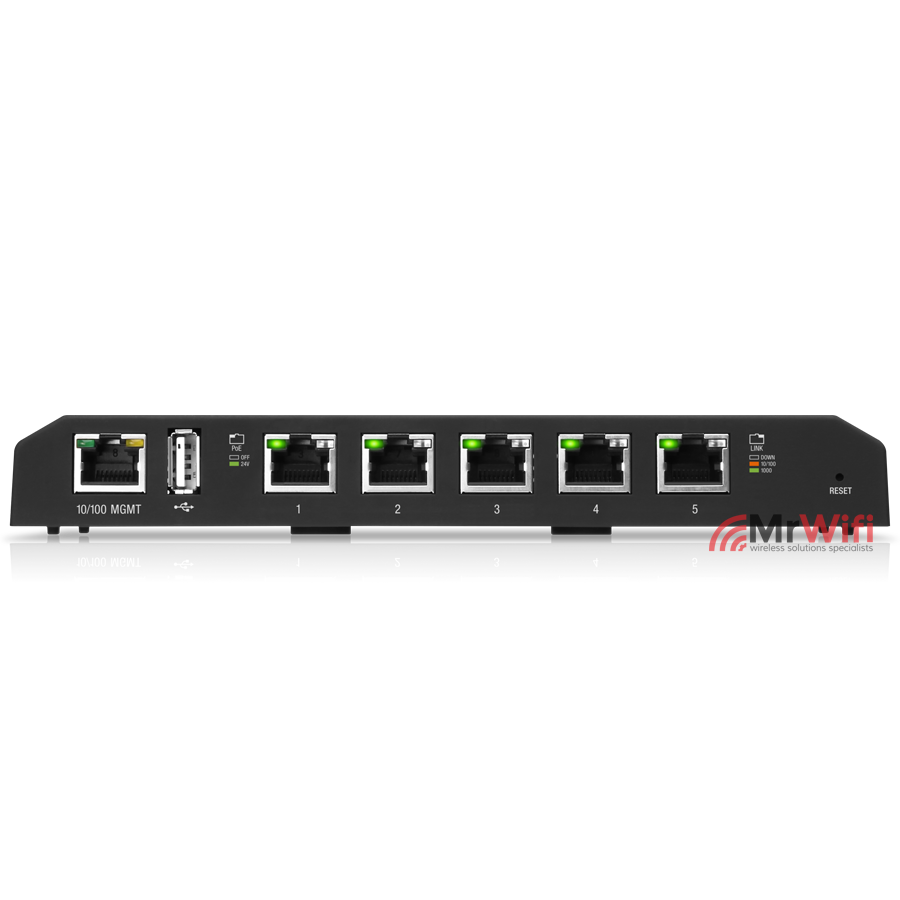

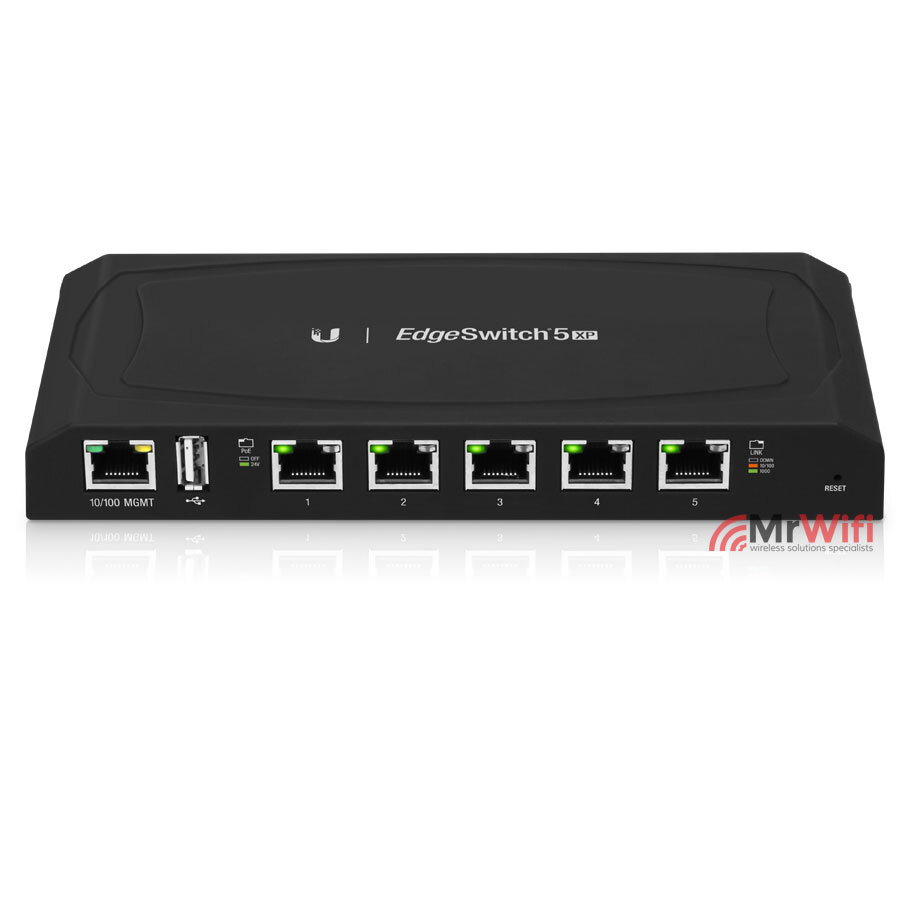

EdgeSwitch 5 XP 24V PoE
UISP Switch Gigabit PoE switch for MicroPoP applications
In Stock: YES
EdgeSwitch 5XP 24V PoE - Advanced Power over Ethernet Switches
The EdgeSwitch® XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non‑PoE devices can be connected. EdgeSwitch XP is available in multiple versions to meet your deployment needs.
- EdgeSwitch 5XP is a cost‑effective, 5-port Gigabit switch with 24V PoE support.
- EdgeSwitch 8XP is an industrial strength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. Output voltage is controlled by the software.
- EdgeSwitch 16XP features dual EdgeSwitch 8XP systems in a rack‑mountable, 1U form factor with 300 watts of power supporting up to 16 devices.
EdgeSwitch 5 XP
- 1 x EdgeSwitch 5XP
- 2 x Screws
- 2 x Anchors
- 1 x Power Adapter (24V, 2.5A)
- 1 x Power Cord
- Quick Start Guide
EdgeSwitch 5 XP - Specifications
|Dimensions||197 x 87.5 x 27.3 mm|
|Power Output||24VDC, 2.5A Power Adapter (Included)|
|Max. Power Consumption||60 W|
|PoE Out Voltage Range||22-24VDC|
|Max. PoE Wattage Per Data Port||11.5 W|
|ESD Rating||24 kV Air / 24 kV Contact|
|USB Port||2.0 Type A (Reserved for Future Use)|
|Processor||MIPS 24K, 400 MHz|
|System Memory||64 MB|
|Code Storage||8 MB|
|Certifications||CE, FCC, IC|
|Operating Temperature||-25 to 55°C (-13 to 131° F)|
|Operating Humidity||90% Non-Condensing|
|PoE Configurable Per Port|
|LEDs Per Port|
|Data Ports||PoE, Speed/Link/Activity|
|Management Port||(1) 10/100 Ethernet Port|
|Data Ports||(5) 10/100/1000 Ethernet Ports|
|Unit Of Measure||ea|
