Ubiquiti UniFi Switch Flex Utlility

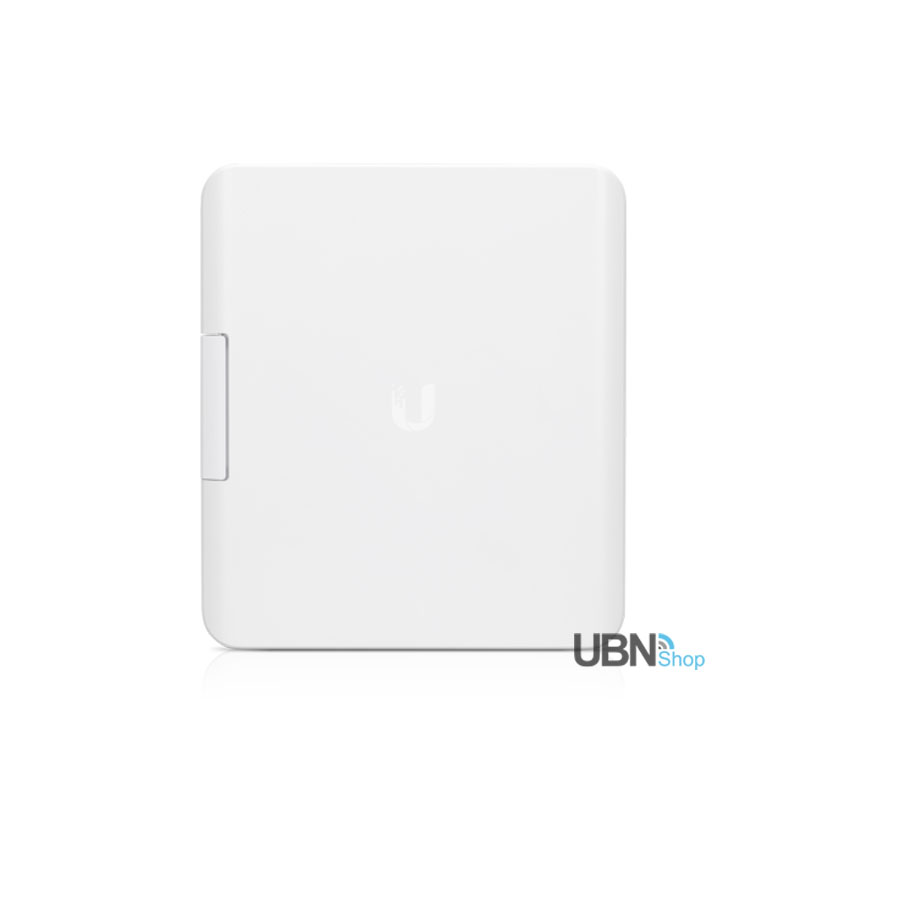

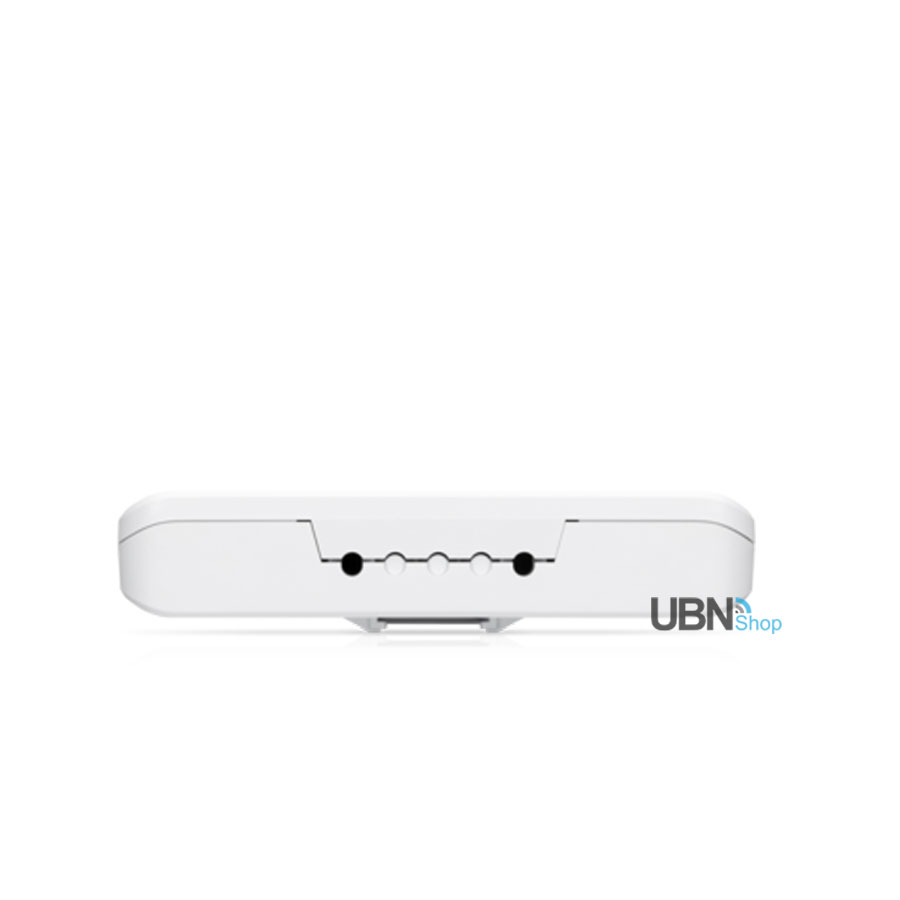

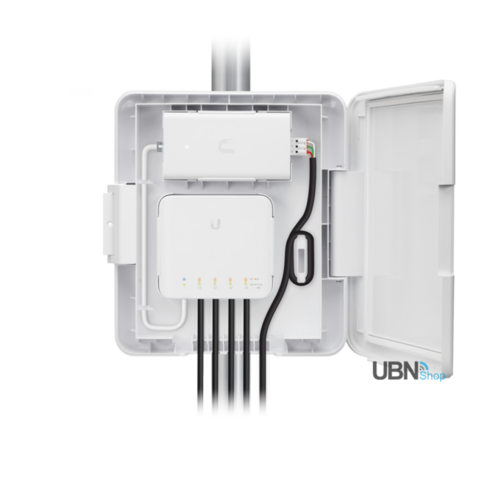

The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.

Note:
UniFi Switch Flex, USW-Flex, sold separately



UniFi USW Switch Flex Utility

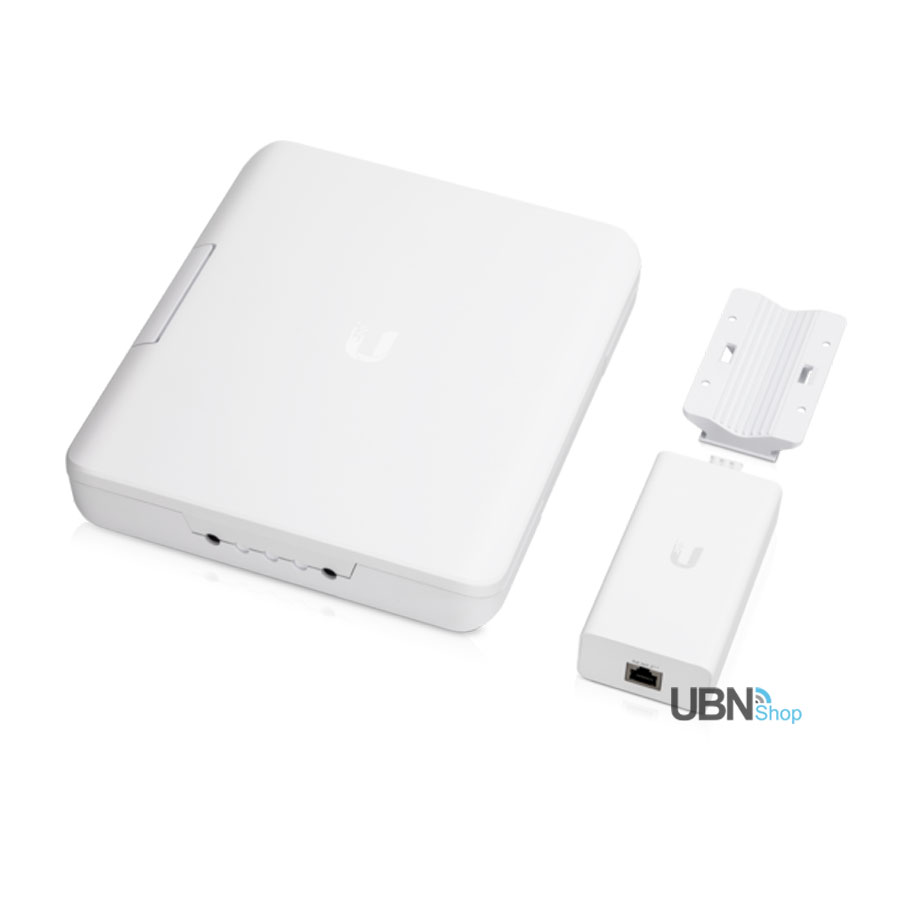

Package Includes

  • 1 x USW-Flex Utility Enclosure
  • 1 x 60W PoE Adapter
  • 1 x Ethernet Patch Cable
  • Quick Start Guide

UniFi USW Flex - Specifications



USW-Flex

Dimensions

122.5 x 107.1 x 28.0 mm
(4.82 x 4.22 x 1.10")

Weight

230 g (8.11 oz)

Networking Interfaces

(5) 10/100/1000 Mbps RJ45 Ports

Management Interface

Ethernet In-Band

Power Method (Port 1)


PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-)
PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
PoE Mode 3: 54V / 1.1A PoE Adapter

PoE Out (Ports 2-5)

802.3af (Pins 1, 2+; 3, 6-)

Max. Power Consumption

(Excluding PoE Output)

7W

Supported Voltage Range


802.3af Mode 44V - 57V
802.3at/bt Mode 50V - 57V

LEDs


System Status
RJ45 Data Ports PoE; Link/Speed/Activity

ESD/EMP Protection

± 16kV Air, ± 16kV Contact

Operating Temperature

-40 to 55° C (-40 to 131° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC



Shipping Specifications

SKU USW-FLEX-UTILITY
Model # USW-FLEX-UTILITY
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.090m
Shipping Length 0.300m
Shipping Cubic 0.008100000m3
Unit Of Measure ea
