802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology
Simultaneous, dual-band, 3x3 MIMO technology, 802.11AC dual-band access point, capable of speeds of up to 1750 Mbps. Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Pro Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3x3 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1750 Mbps. It features a propietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.
Compact Form Factor
The UAP-AC-M discreetly integrates into any environment.
Built-in dual-band omnidirectional antennas deliver expanded range coverage outdoors.
Weather-Resistant Form Factor
The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.

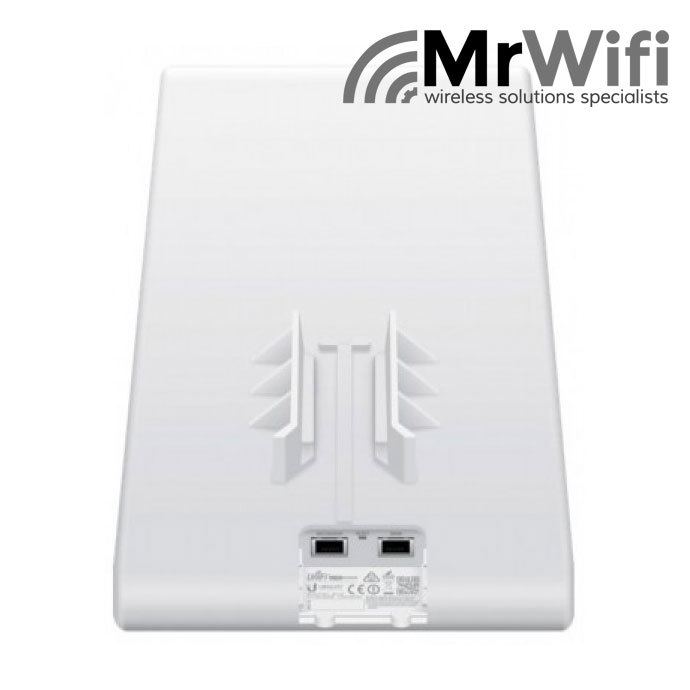

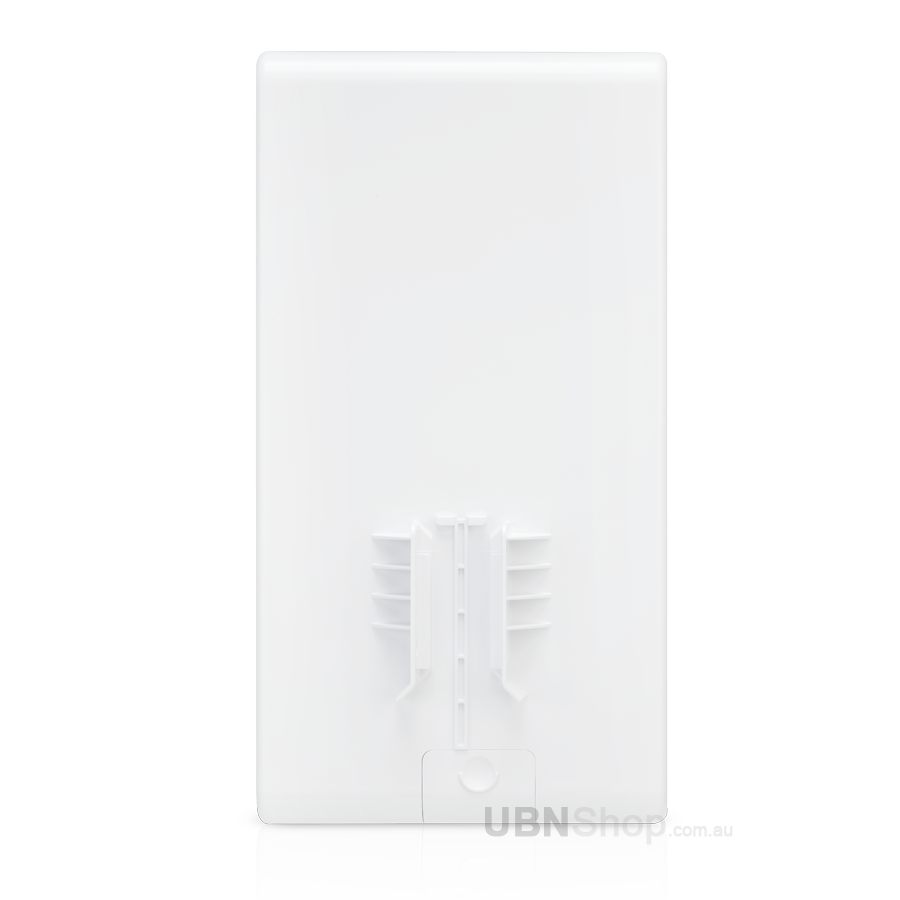

The UAP-AC-M-PRO can be mounted on a wall, pole, or fast-mount of an optional Ubiquiti® high-gain antenna2. (All accessories are included.)

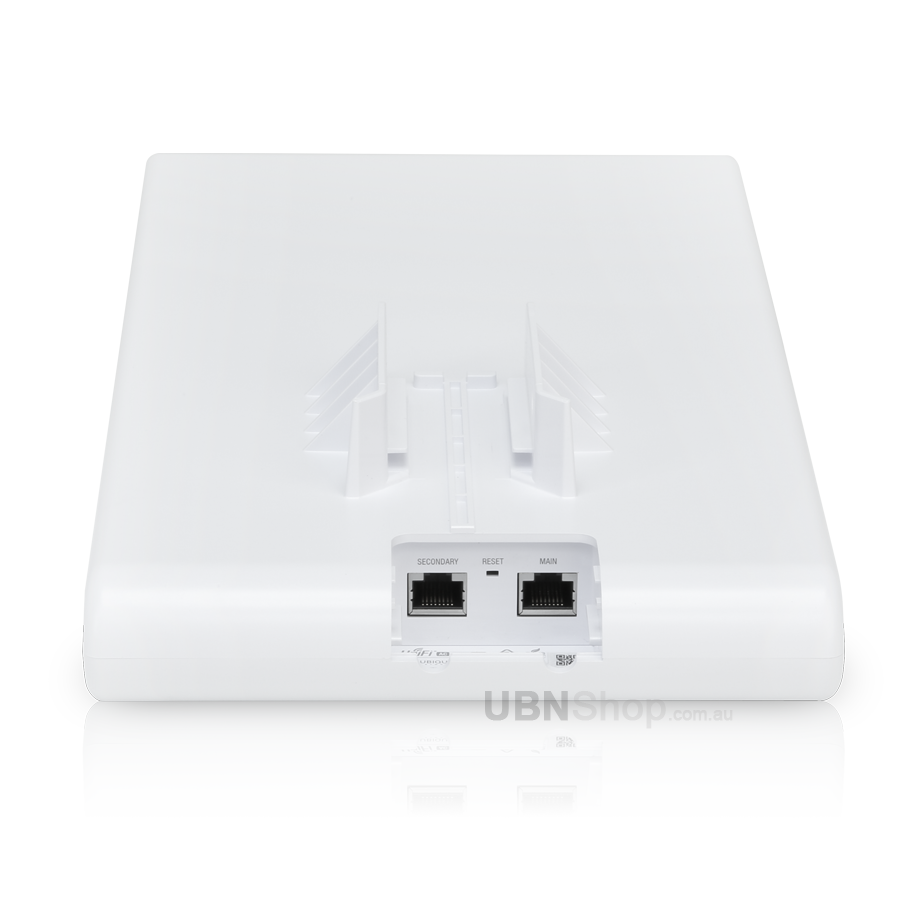

Dual Gigabit Ethernet Ports
The primary port is for data and PoE; the secondary port is for bridging.
Multiple Power Options
You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter*.
UniFI AC Mesh PRO
- 1 x UniFi AC Mesh PRO Access Point
- 1 x Mounting Bracket
- 2 x Pole Clamps
- 4 x Carriage Bolts
- 4 x Flange Nuts
- 4 x Screw
- 4 x Screw Anchors
- 1 x Gigabit PoE (48V, 0.5A)*
- 1 x Power Cord*
- Quick Start Guide
* Included only in the single-pack of the UAP-AC-M PRO
UniFI AC Mesh PRO - Specifications
|Dimensions||343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")|
|Weight||633 g (1.40 lb)|
|Networking Interface||(2) 10/100/1000 Ethernet Ports|
|Ports||(2) 10/100/1000 Ethernet|
|Antennas||3 Dualband antennas|
|Power Method||802.3af PoE|
|Power Supply||PoE Injector 48VDC -0.5A Gigabit|
|Maximum Power Consumption||9W|
|Max TX Power||22 dBm|
|BSSID||Up to Four per Radio|
|Wireless Security||WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)|
|Certifications||CE, FCC, IC|
|Mounting||Wall/Pole (Pole Kit Included)|
|Operating Temperature||-40 to 70° C (-40 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|ADVANCED TRAFFIC MANAGEMENT|
|Advanced QoS||Per-User Rate Limiting|
|Guest Traffic Isolation||Supported|
|WMM||Voice, Video, Best Effort, and Background|
|SUPPORTED DATA RATES (MBPS)|
|802.11a||6, 9, 12, 18, 24, 36, 48, 54 Mbps|
|802.11n||6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)|
|802.11ac||6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)|
|802.11b||1, 2, 5.5, 11 Mbps|
|802.11g||6, 9, 12, 18, 24, 36, 48, 54 Mbps|
|Unit Of Measure||ea|
