UniFi AC Pro 5 Pack (No PoE)
UAP-AC-PRO-5
$1,391.50
Sold Out

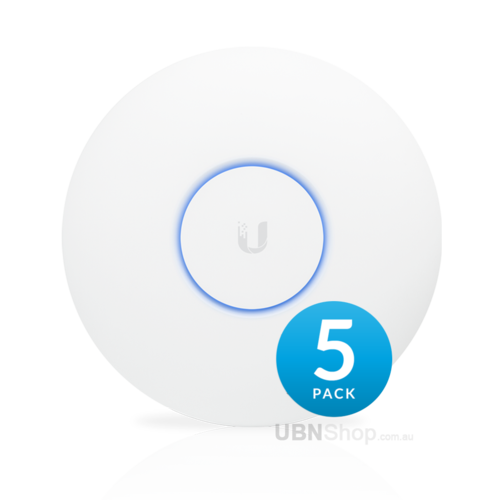

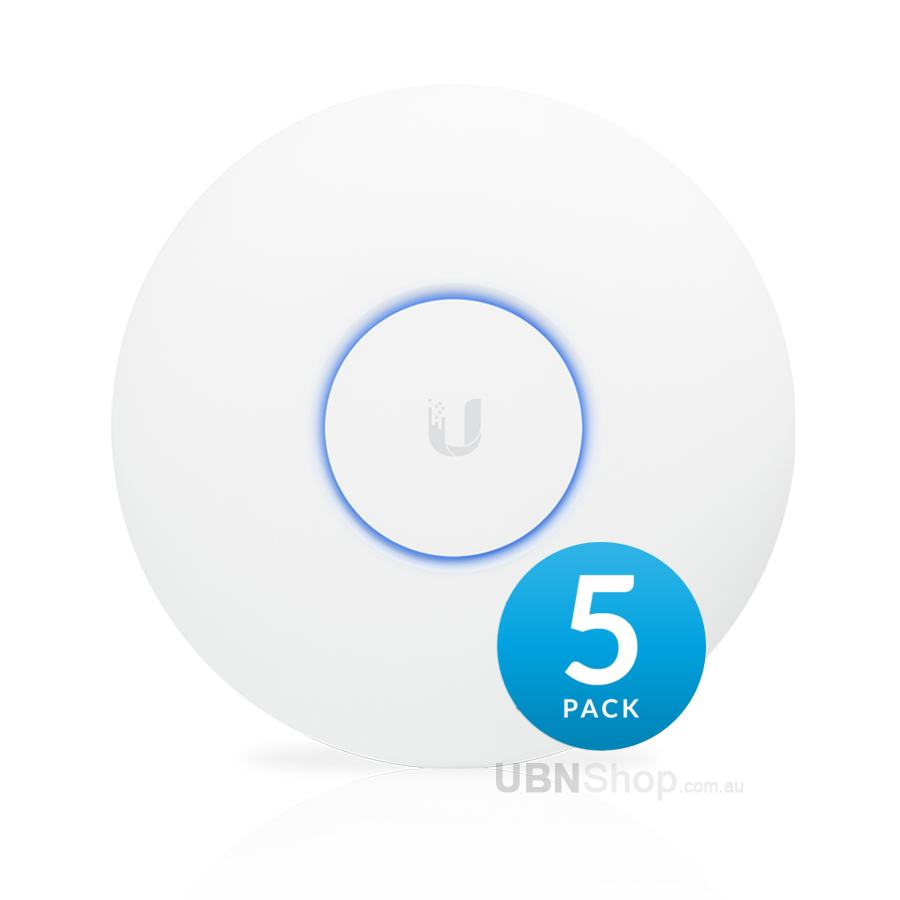

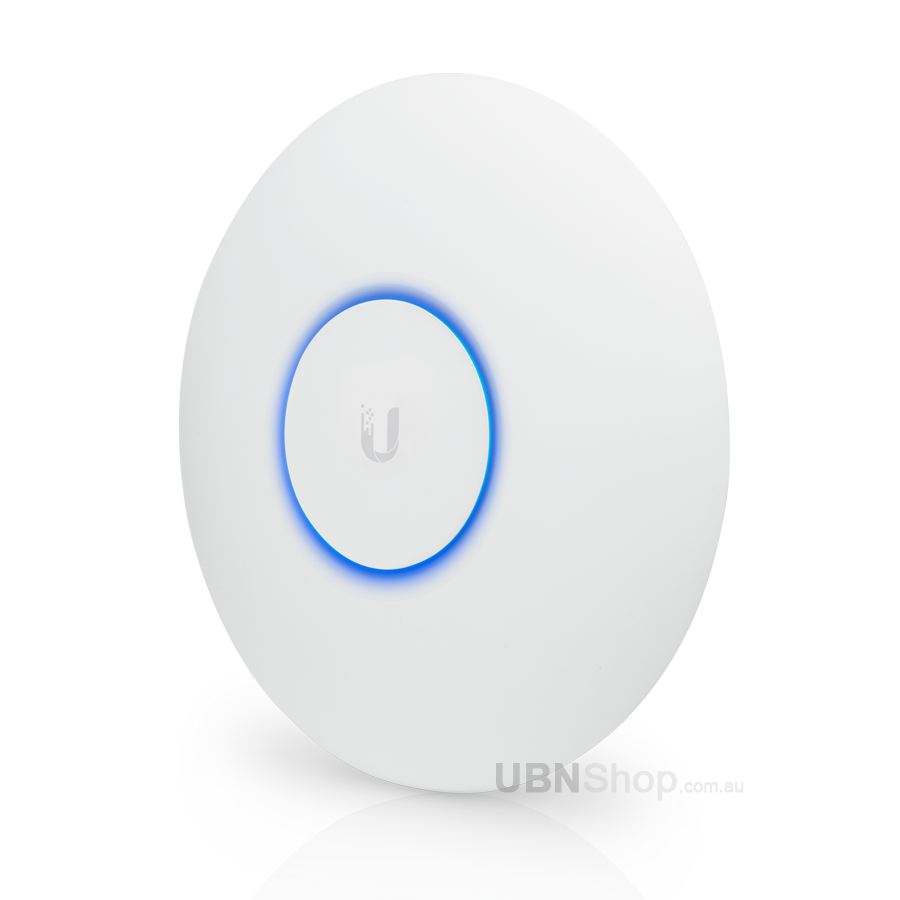

UniFI AC PRO 5 Pack 802.11ac Dual Radio Access Point
The UniFi AC Pro AP features the latest Wi-Fi 802.11ac, 3x3 MIMO technology in a refined industrial design and is ideal for deployment of maximum‑performance wireless networks. The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands. The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.
UniFi AC PRO - Documents
Datasheet UAP AC PROUniFi AC PRO 5 Pack
Pack Includes:

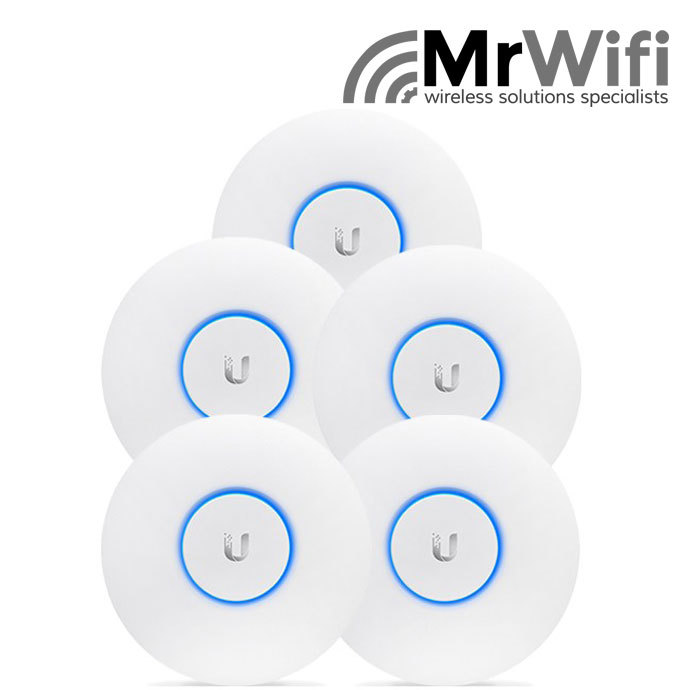

- 5 x UniFi AC PRO Access Point
- 5 x Mounting Plate
- 5 x Ceiling Backing Plate
- 20 x Plate Ceiling Screws
- 20 x Keps Nuts
- 20 x Wall Screws
- 20 x Screw Anchors
- 5 x Power Cord*
- Quick Start Guide
Note: Does not include PoE adapter. Sold Separately
UniFi AC PRO - Specifications
| UNIFI | |
|---|---|

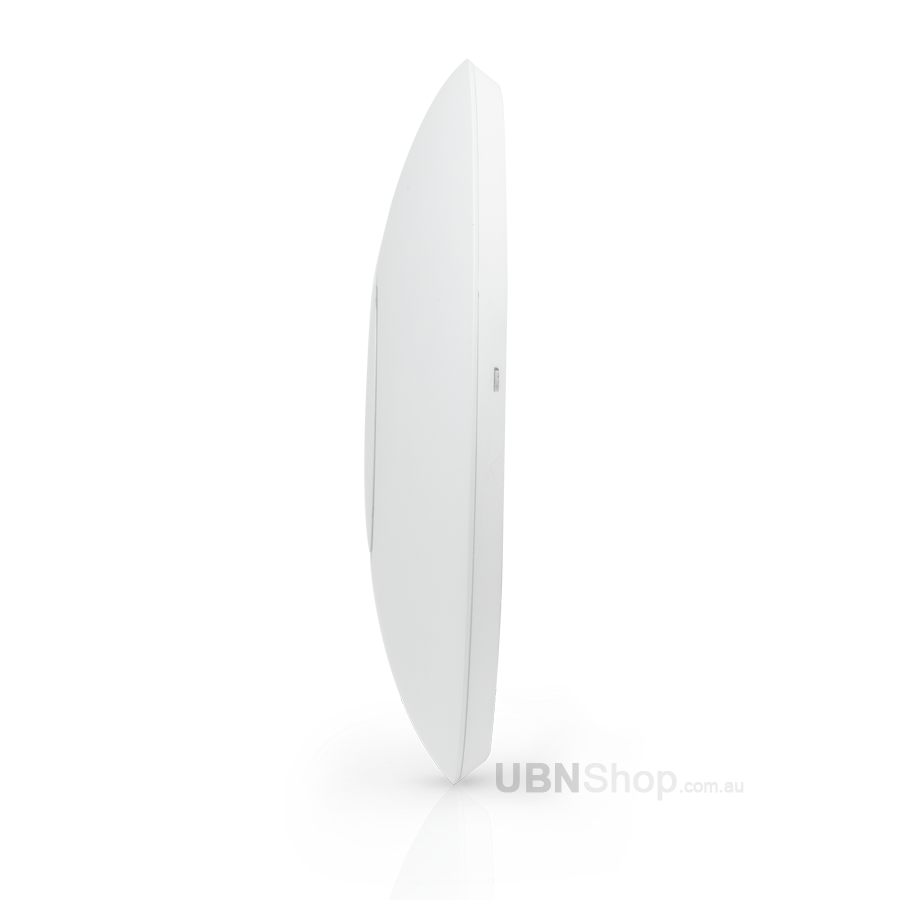

| Dimensions | 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38") |
| Weight | 350 g (12.4 oz), 450 g (15.9 oz) with Mounting Kits |

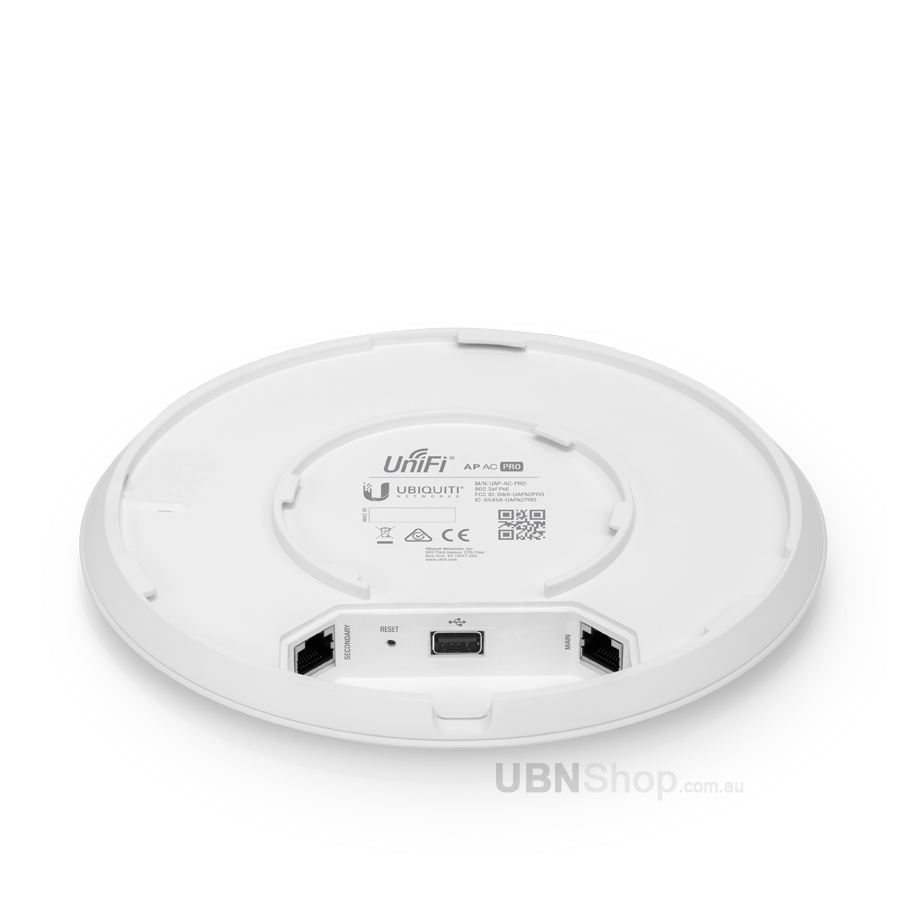

| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (1) USB 2.0 Port |
| Buttons | Reset |
| Antennas | (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC) |
| Power Supply | Not Included |
| Maximum Power Consumption | 9W |
| Max TX Power | 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |

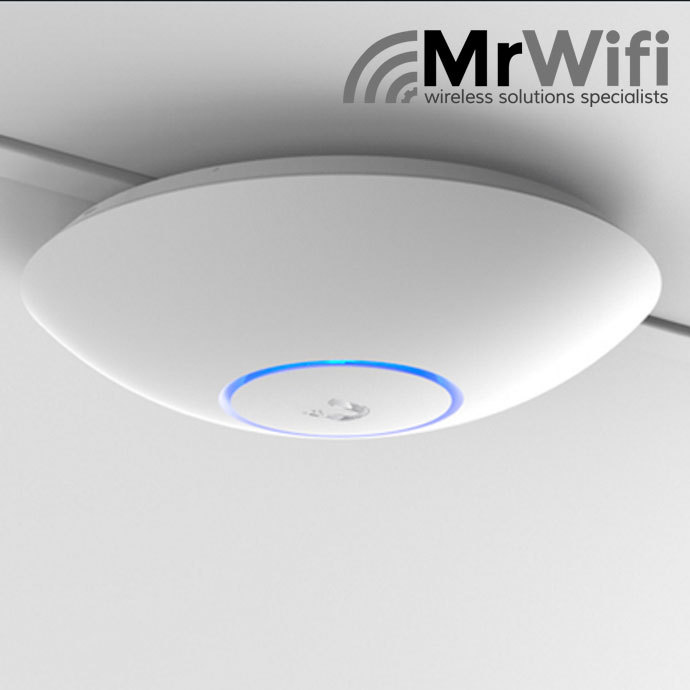

| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ADVANCED TRAFFIC MANAGEMENT | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Shipping Specifications
| SKU | UAP-AC-PRO-5 |
| Model # | UAP-AC-PRO-5 |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 2.4000kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.230m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.011638000m3 |
| Unit Of Measure | ea |
