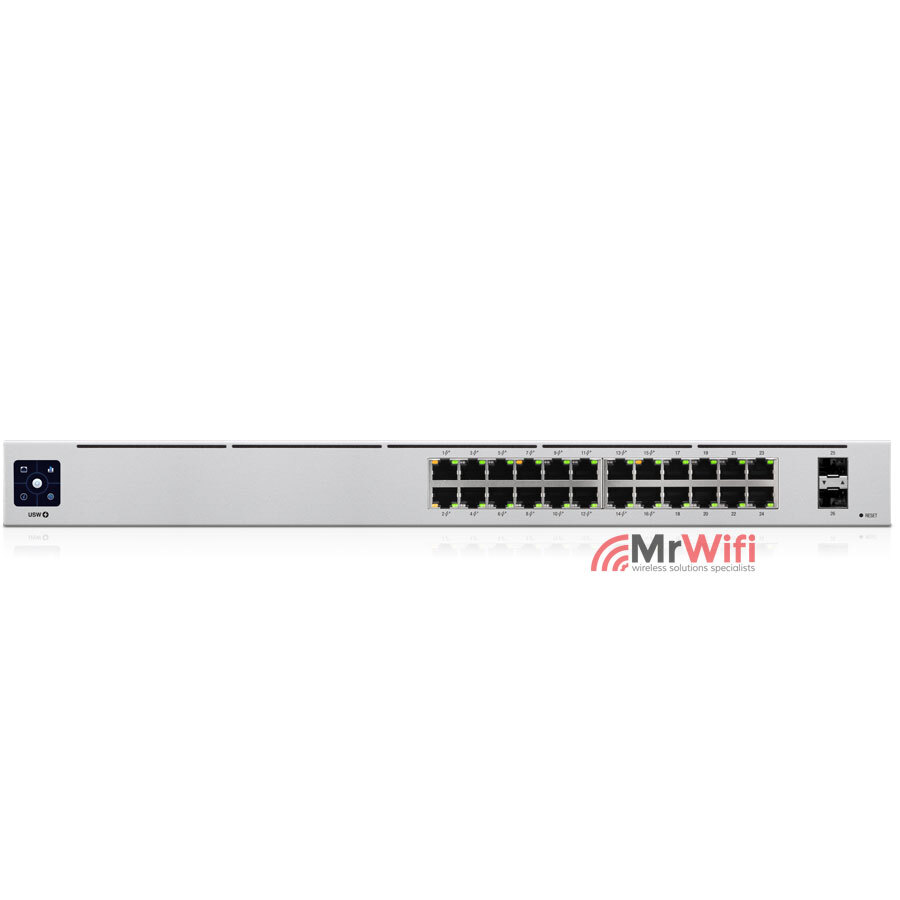

UniFi 24 Port Gigabit Switch Gen2 with PoE and SFP

USW-24-POE

$844.25
In Stock

UniFi 24 Port Gigabit Switch Gen2, with PoE and SFP



The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Overview
Expand and power your network with the UniFi® PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
• USW-16-PoE 16 RJ45 ports with 2 SFP ports
• USW-24-PoE 24 RJ45 ports with 2 SFP ports

Compact Form Factor
Measuring only 7.9" in depth, the UniFi PoE Switch is designed for convenient installation:
• rackmounted in a SOHO rack cabinet
• placed on a desktop

Fiber Connectivity
SFP ports enable network uplinks of up to 1 Gbps.

Fanless, Silent Cooling
The UniFi PoE Switch features fanless, silent thermal cooling*, so it can be deployed in areas where fan noise would be distracting.
* Fanless switches must not be stacked.

Switching Performance
The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

802.3af/at PoE
PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.



  USW-16-PoE USW-24-PoE
Number of PoE Ports 8 16
Total Available PoE 42W 95W
Max. PoE Wattage per Port 32W 32W

UniFi 16-Port PoE Switch
• (16) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports with 802.3bt
• (2) 1G SFP ports
• 1U Rackmountable (hardware included)



Near Silent Cooling

Our new airflow design reduces the need for fan usage.



Powerful Hardware and Software

UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release



Redundant Power System

UniFi SmartPower RPS, USP-RPS, is our PSU failover system.



Touchscreen Display

The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.



Comparison Chart USW-Gen2

Compare the UniFi Gen2 Switches.



(USW-24-POE)

UniFi 24 Port Gigabit Switch Gen2 with PoE and SFP

Package Includes

  • 1 x USW-24-POE Gen2
  • 2 x Rack-Mount Brackets (Qty. 2)
  • 8 x Bracket Screws
  • 4 x Mounting Screws
  • 4 x Cage Nuts
  • 1 x Power Cord
  • 4 x Rubber Feet
  • Quick Start Guide

UniFi 24 Port Gigabit Switch Gen2 with PoE and SFP - Specifications



USW-24-POE

Dimensions

442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72")

Weight

3.00 kg (6.61 lb)

With Rackmount Brackets 3.09 kg (6.81 lb)

Interfaces


Networking (24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Management Ethernet In-Band

Power Method

100-240VAC/50-60 Hz, Universal Input

Power Supply

AC/DC, Internal, 120W

Supported Voltage Range

100 to 240VAC

Max. Power Consumption
(Excluding PoE Output)

25W

LEDs


System Status
RJ45 Data Ports PoE; Speed/Link/Activity
SFP Data Ports Link/Activity

ESD/EMP Protection

Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

PoE

PoE Interfaces


Ports 1-16 POE+ IEEE 802.3af/at
(pins 1, 2+; 3, 6-)

Max. PoE Wattage per Port by PSE


802.3at 32W

Voltage Range 802.3af Mode

44-57V

Voltage Range 802.3at Mode

50-57V



Shipping Specifications

SKU USW-24-POE
Model # USW-24-POE
Barcode # 817882028646
Brand Ubiquiti
Shipping Weight 3.0900kg
Shipping Width 0.443m
Shipping Height 0.044m
Shipping Length 0.200m
Shipping Cubic 0.003898000m3
Unit Of Measure ea
