Sector Antenna 2.4GHz 15dBi HP Aluminium

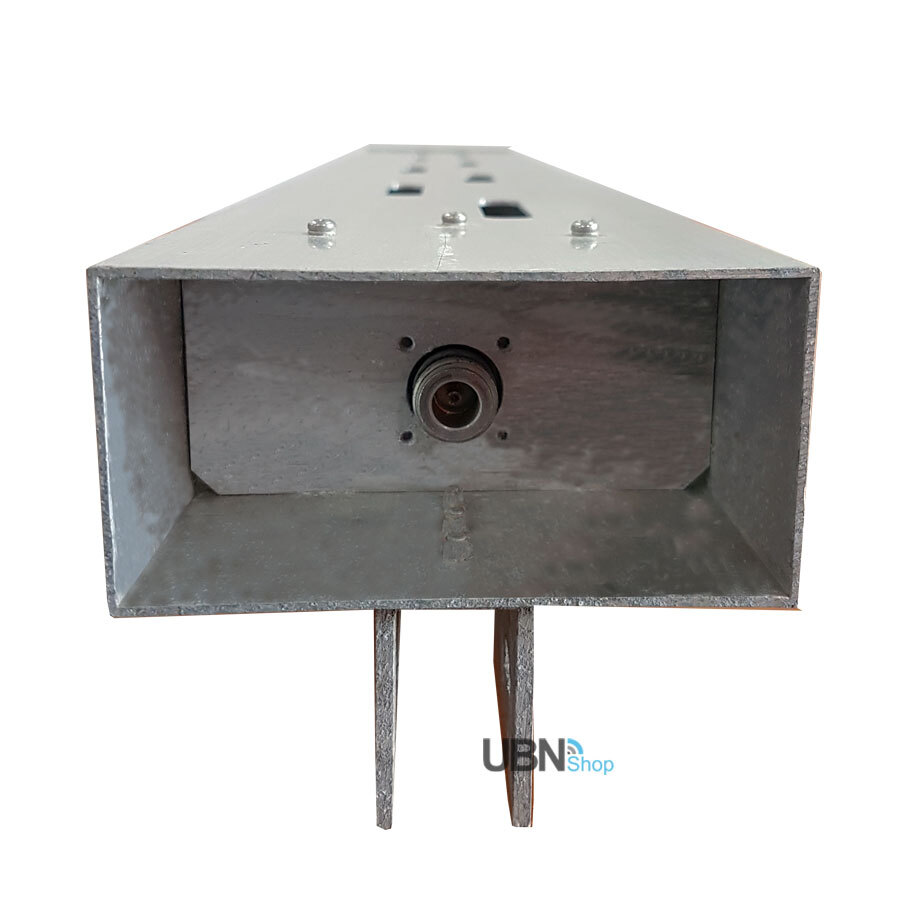

Quality 2.4GHz aluminium sector antenna 15dBi. The end feed on the waveguide gives a DC Ground on coaxial input for lightning protection of attached equipment, and means the coaxial connection is sheltered from rain. Ideal quality antenna for use with the Ubiquiti Bullets.

Features

  • 15.0 dBi gain
  • 2.45GHz frequency antenna
  • HB/VB (deg) 3dB level = 85/14. H pol
  • Size (mm) = 710 x 100 x 50
  • Weight 1.05kg
  • N (fem pin)- type connector
  • Horizontal Polarisation
  • Light Extruded Aluminium Construction
  • Good VSWR (>12 dB ret. loss over 2.42GHz to 2.48GHz)

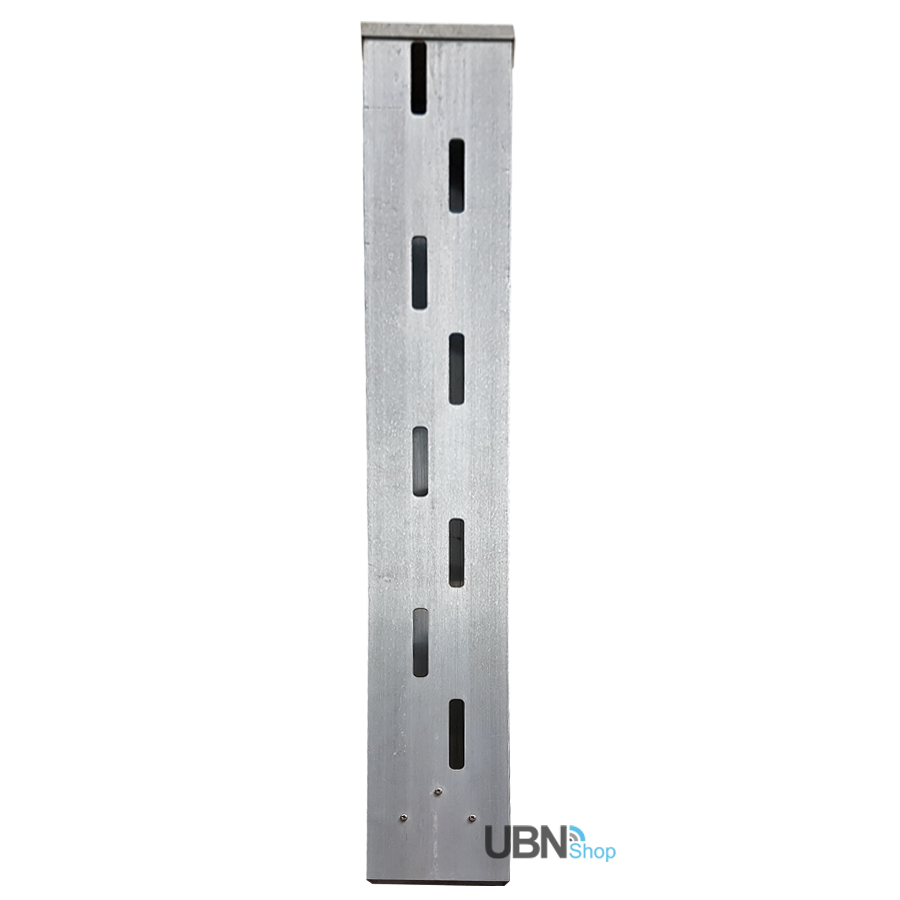

  • 8 slots (2x8)

Sector Antenna 2.4GHz 15dBi HP Aluminium

Pack Includes:

  • 1 x Sector Antenna 2.4GHz 15dBi HP Aluminium



BLACKHAWK TRUCKER MINI ANTENNA 698-2700MHZ - Specifications

Shipping Specifications

SKU RFS-0192A
Model # RFS-0192A
Brand CITA
Shipping Weight 1.0500kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.710m
Shipping Cubic 0.003550000m3
Unit Of Measure ea
