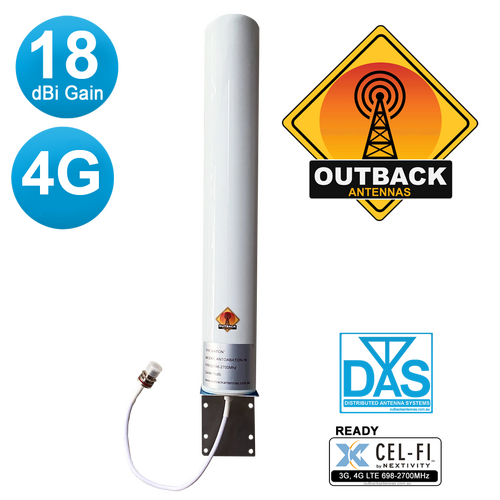

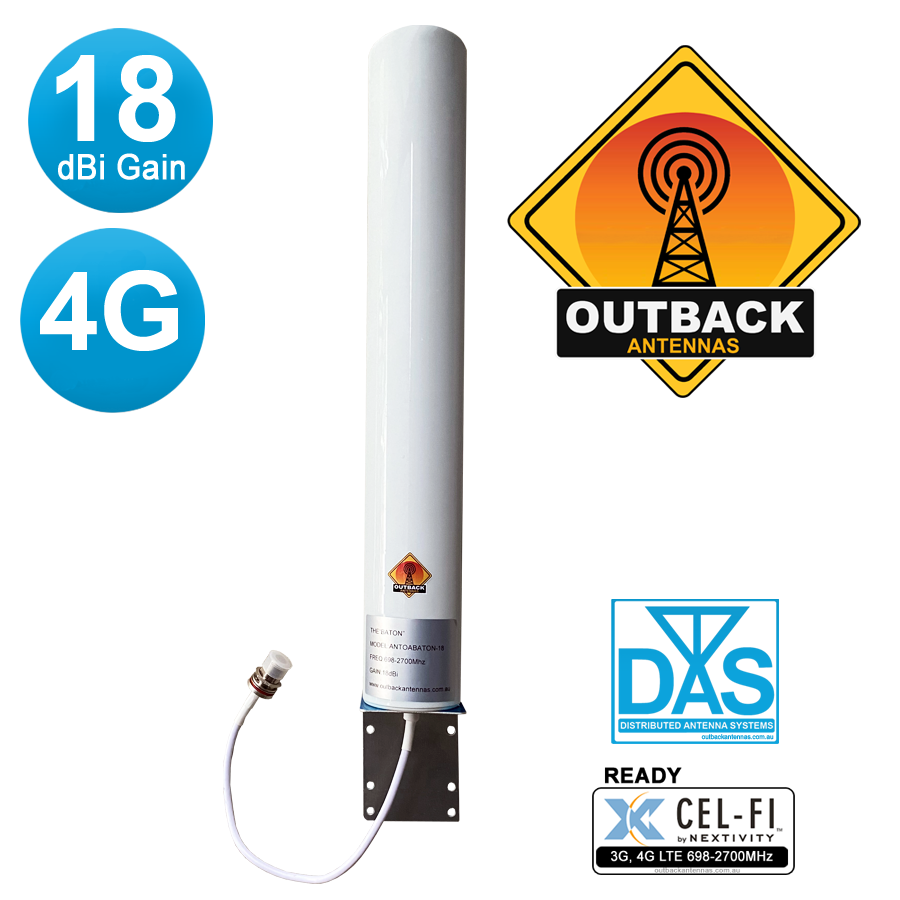

Omni Antenna Outdoor 4G-5G 360° High Gain, 698 to 2700Mhz

Omni Directional Outdoor Antenna 360° 4G-5G High Gain 18dBi, 698 TO 2700 Mhz

Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.

Outback Antennas 4G-5G omnidirectional antennas provide high gain across the full cellular band 698 to 2700Mhz regardless of mounting direction, allowing quick and easy installation with no technical know-how or alignment required.

This is the ideal omni-directional external antenna for Cel-Fi repeater systems. Omni antennas are also great for moving plant and machinery. The antenna’s 18dBi gain is considered a sweet-spot for maximum performance out to the horizon while still maintaining a wide enough vertical beam to tolerate tilting and pitching as equipment moves over rough ground, or deployed on uneven ground. The true wideband performance has been achieved through a clever engineering design utilising multi-sized collinear radiators and microwave-grade combiners, demonstrating consistently high gain with exceptional azimuthal stability.

Features

• No alignment required with 360° coverage
• 18 dBi gain across lower bands 698-960 MHz
• 18 dBi gain across upper bands 1695-2700 MHz
• Ruggedised construction for Australian conditions
• UV-stable PVC construction

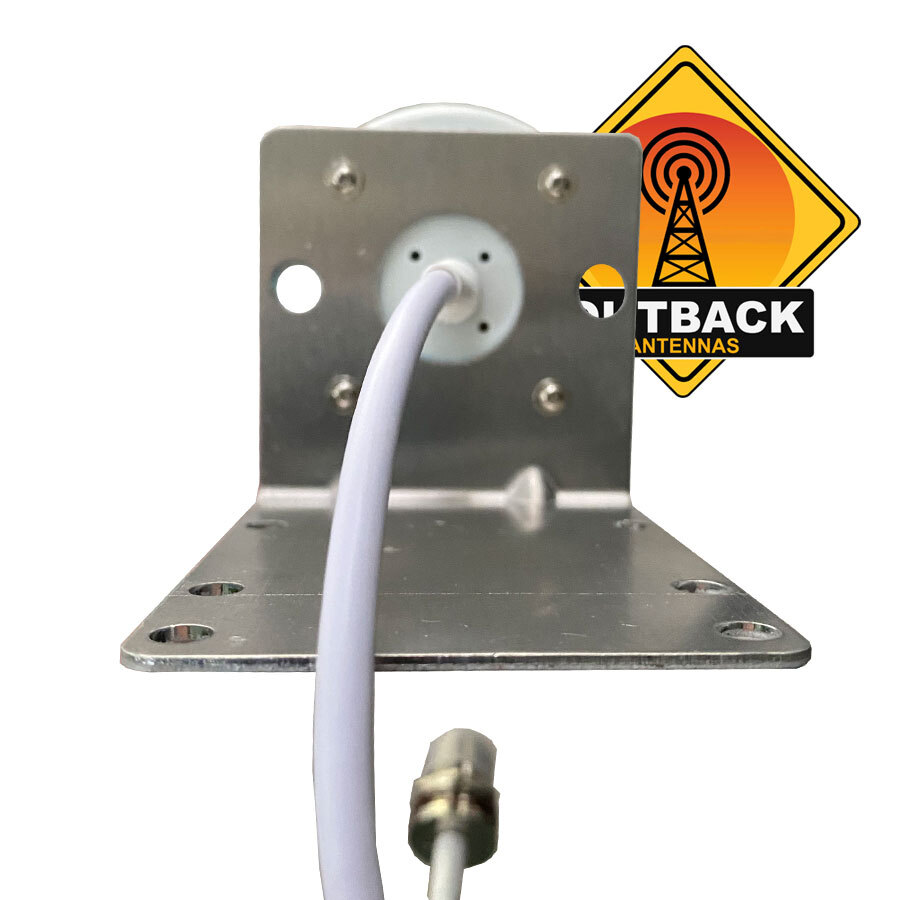

• Stainless steel L-bracket included
• Integrated 30cm cable with N Female waterproof connector

Dimensions:

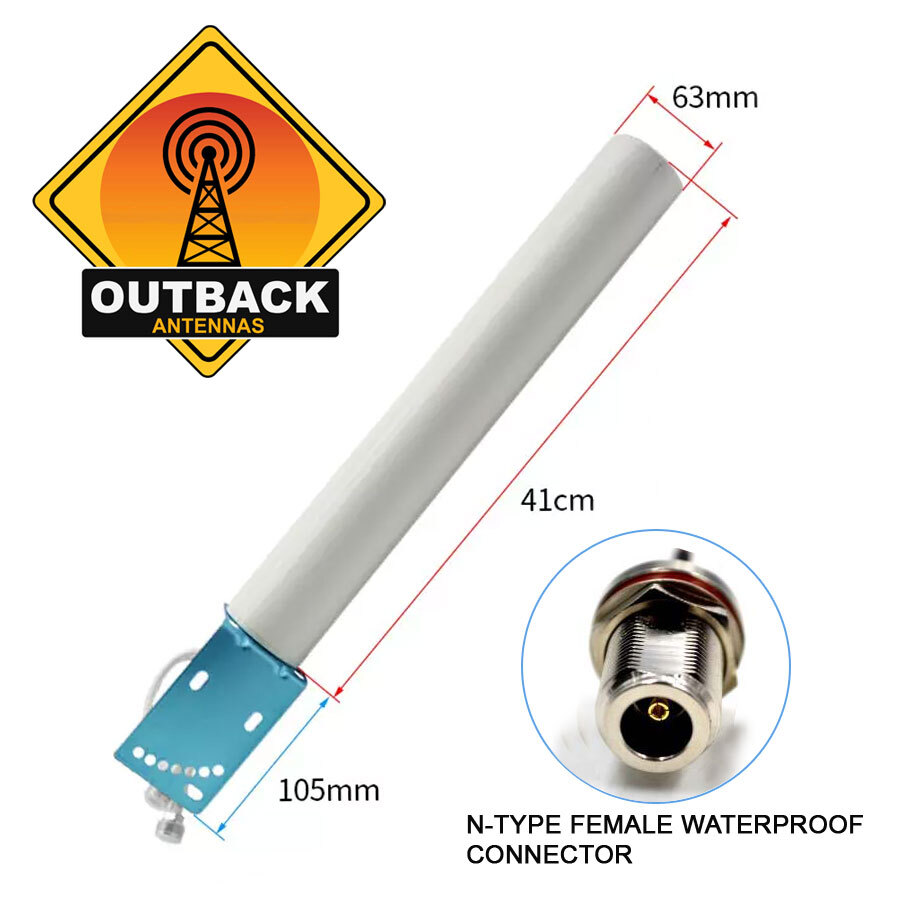

• Without Mount - 420mmL x 63mm⌀
• With Mount - 510mmL x 63mm⌀

Weight:

• Without Mount - 357g
• With Mount - 491g

Recommended Applications:

• Buildings (Roof top)
• Tower
• Machinery
• Vehicles
• Marine (Boats)
• Caravans & Campers, RV's
