LC UPC Connector Field Assembly Kit Optical Singlemode ( 6 PACK)
FS-CON-FAST-SM-LC-6
LC UPC Connector Field Assembly Kit Optical Singlemode ( 6 PACK) by Fibreshop

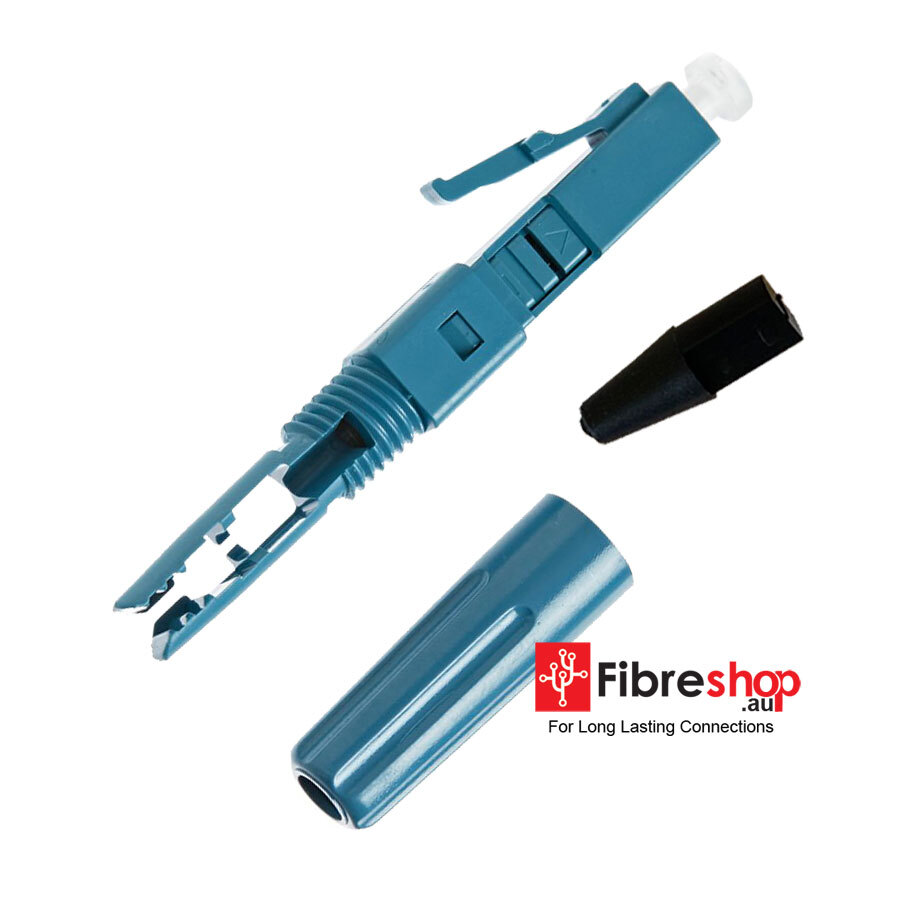

LC/UPC Singlemode.0.9mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector
Field assembly connector or fast connector is an innovative field installable optical fibre connector designed for simple and fast field termination of single fibers. Without using additional assembling tools, field assembly connector can be quickly and easily connected to the drop cable and indoor cable, which saves a lot of required termination time. It is specially designed with the patented mechanical splice body that includes a factory-mounted fibre stub and a pre-polished ceramic ferrule. Field assembly connectors enable fast and on-site installation of 250μ, 900μ, 3.0mm and 1.6mm x 2.0mm, 2.0mm x 3.0mm cable type connectors even when the user has no access to power. The whole installation process only takes about 2 minutes which greatly improves the working efficiency.
FEATURES
- Field-installable, cost-effective, user-friendly
- No requirement for epoxy and polishing
- Quick and easy fibre termination in the field
- No need for fusion splicer, power source and tool for pressure
- Visual indication of proper termination
- Suitable for all standard OS1 and OS2 fibre cables
Description:
|
Item |
Performance |
|
Insertion Loss |
Average ≤ 0.2dB，Max ≤ 0.4dB |
|
Return Loss |
PC：≥45dB，APC：≥55dB |
|
One-time Assembly Rate |
≥ 97% |
|
Assembly Repeatability |
More than 5 times |
|
Average Assembly Time |
≤ 3minutes |
|
Life-time |
≥ 30 years |
|
Tensile Strength |
≥ 30N（2×3）Bow-type drop cable |
|
Operation Temperature |
-40℃ ～ +85℃ |
(FS-CON-FAST-SM-LC-6)
LC UPC Connector Field Assembly Optical Singlemode

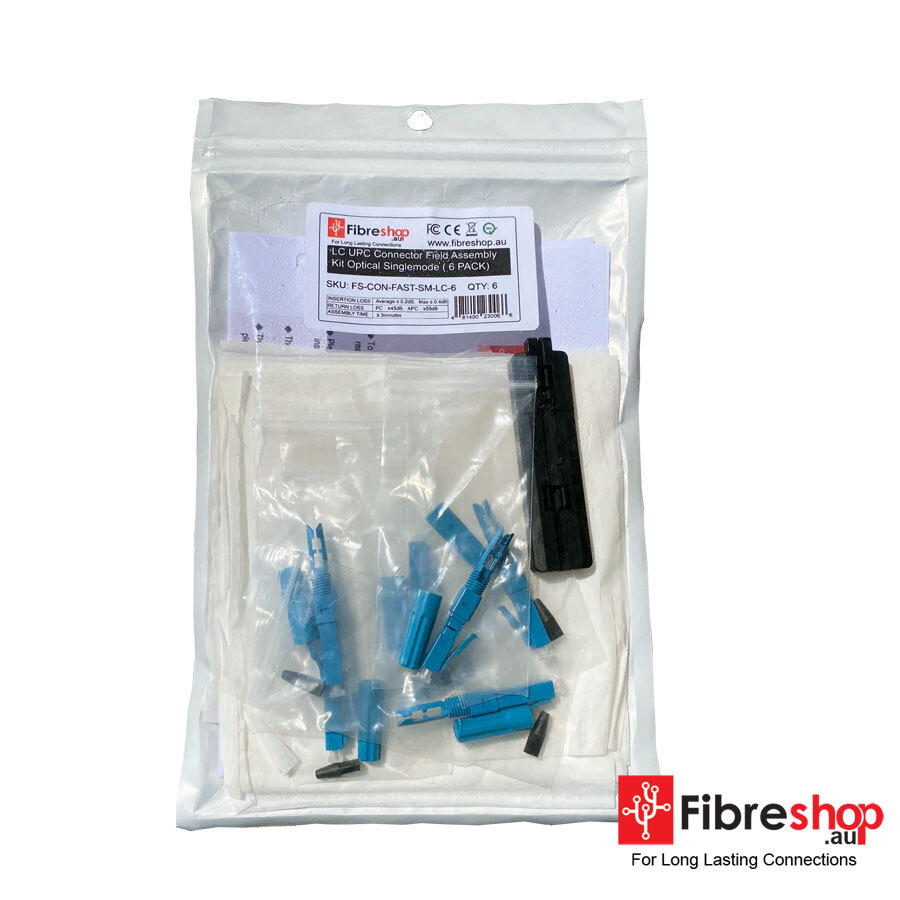

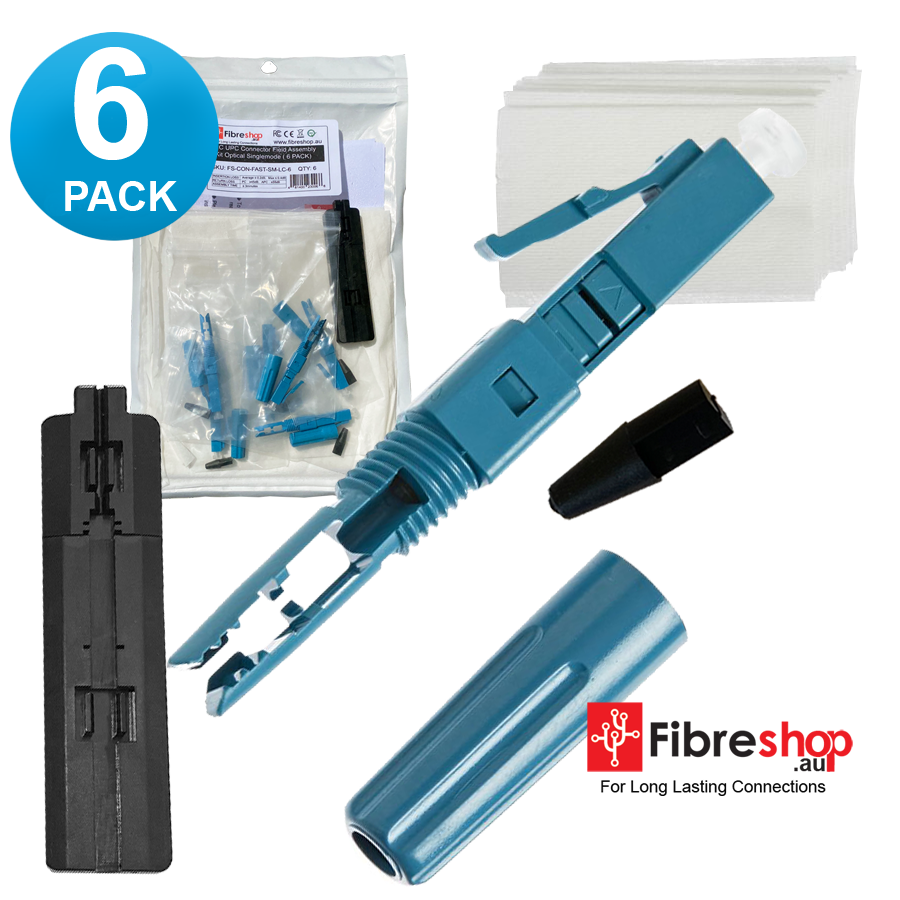

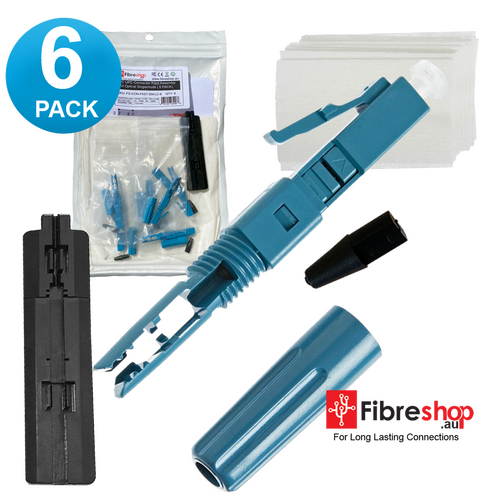

Pack Includes:
- 6 x LC UPC Connector Field Assembly Optical Singlemode by Fibreshop

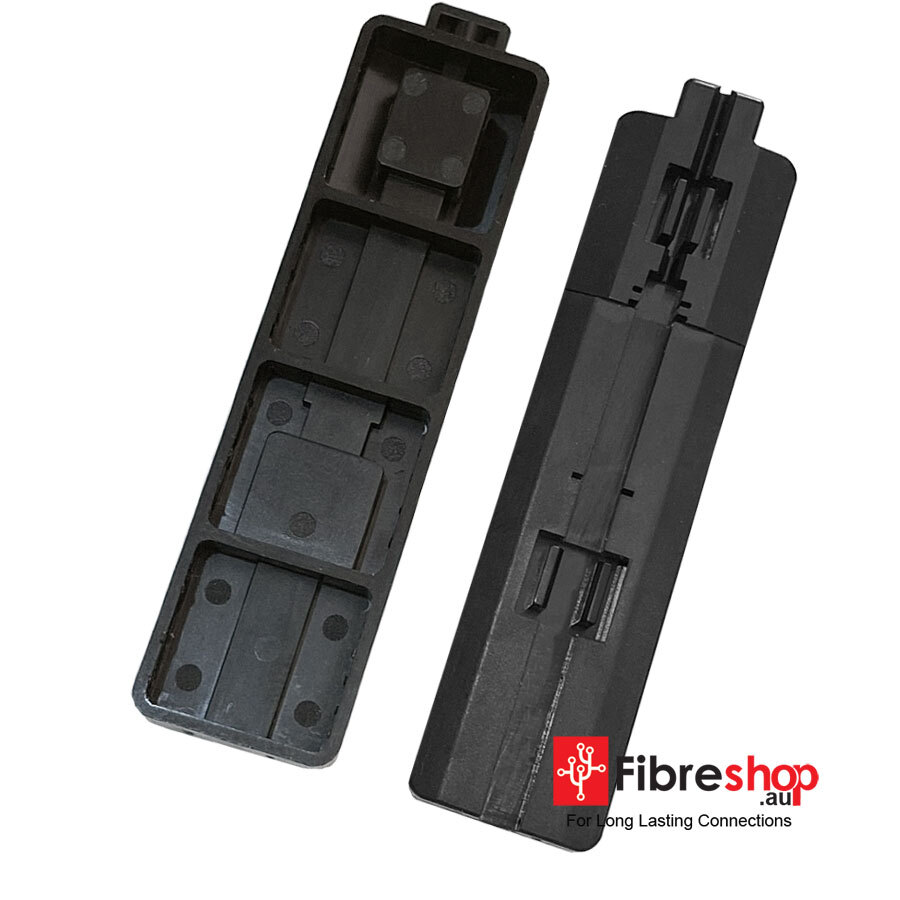

- 1 x Fibre Optic Fixed Cutting Jig

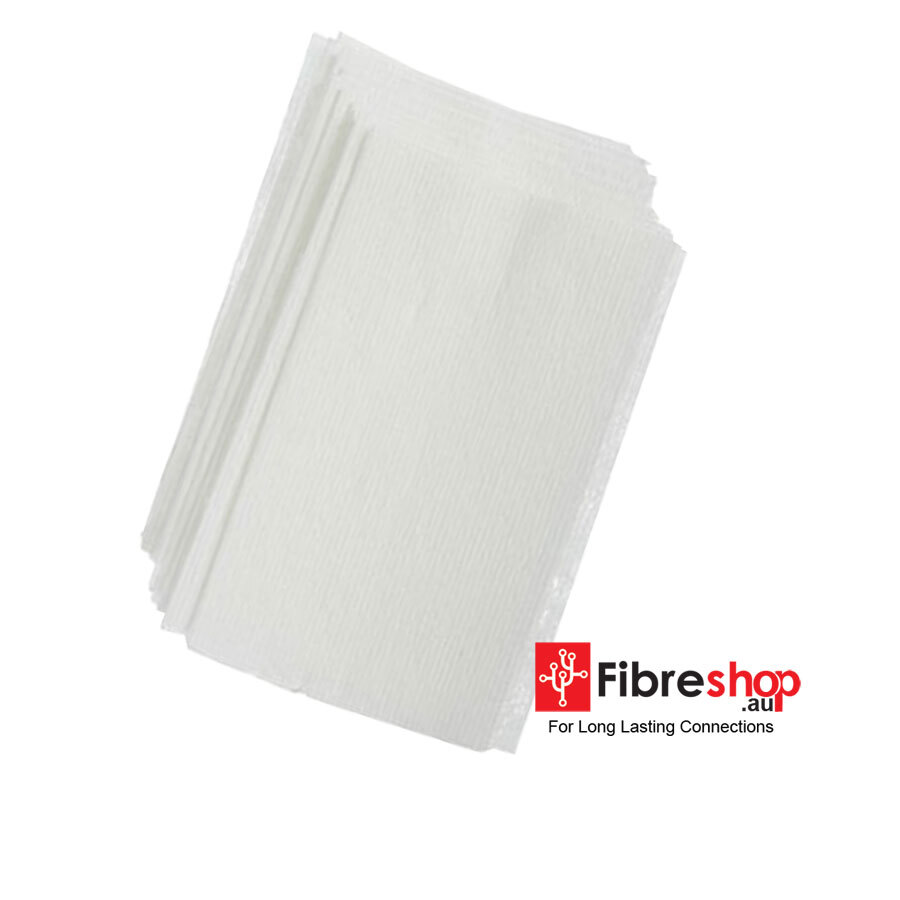

- Qty Dust Free Cleaning Swabs
LC UPC Connector Field Assembly Optical Singlemode - Specifications
Description:
|
Item |
Performance |
|
Insertion Loss |
Average ≤ 0.2dB，Max ≤ 0.4dB |
|
Return Loss |
PC：≥45dB，APC：≥55dB |
|
One-time Assembly Rate |
≥ 97% |
|
Assembly Repeatability |
More than 5 times |
|
Average Assembly Time |
≤ 3minutes |
|
Life-time |
≥ 30 years |
|
Tensile Strength |
≥ 30N（2×3）Bow-type drop cable |
|
Operation Temperature |
-40℃ ～ +85℃ |
| SKU | FS-CON-FAST-SM-LC-6 |
| Model # | FS-CON-FAST-SM-LC-6 |
| Barcode # | 4.81E+11 |
| Brand | FibreShop |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.015m |
| Shipping Height | 0.015m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000011000m3 |
| Unit Of Measure | ea |
