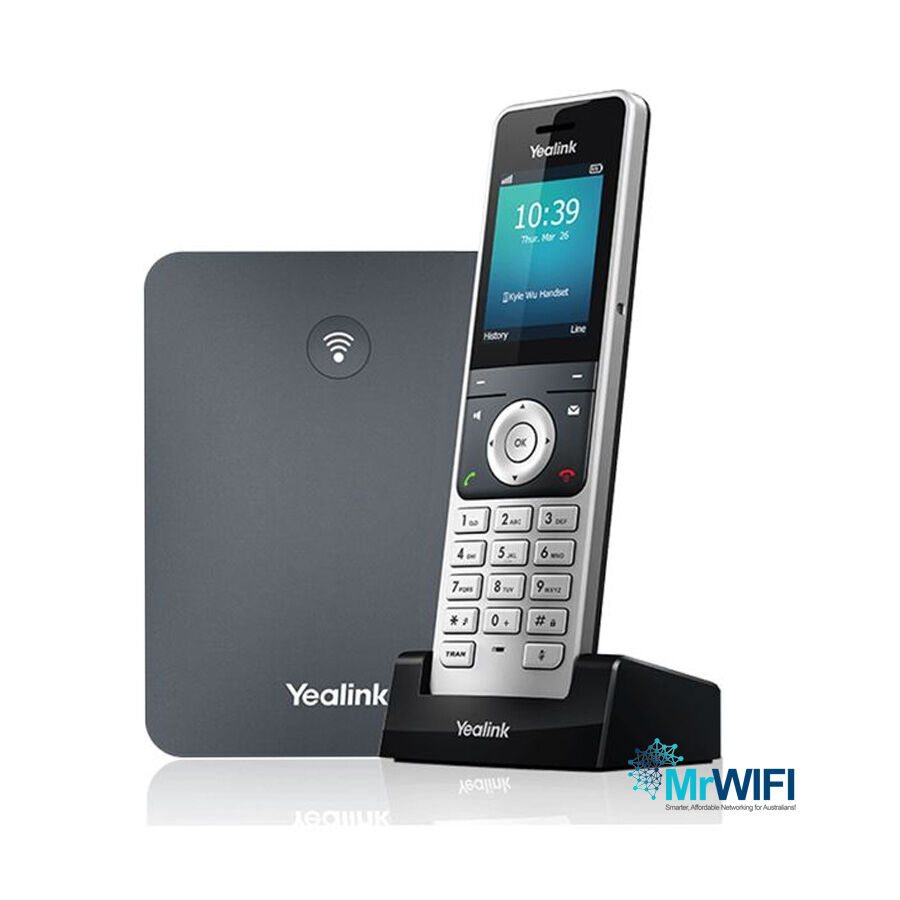

Yealink W76P DECT Phone System

Scalable solution with superior performance

• Optimized wireless communication experience for mobile working

• Easy deployment and efficient management

• Support Microsoft SIP Gateway

• Seamlessly compatible with Yealink full-range DECT endpoints, ideal for small- and medium-sized business

A High-performance Solution with Efficient Communication Network

Supporting registration with up to 10 Yealink W56H DECT handsets, the W76P system is launched with robust processing capacity for up to 10 SIP accounts and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.

Deliver Bright and Clear Voice to Fullfill Effectiveness Across Spaces

Combining the professional handset W56H with Yealink new DECT base station W70B, the W76P delivers superb and stable audio quality in whether high-bandwith or poor network conditions by supporting a series of audio codecs. The Noise Reduction System also ensures the effectiveness of the conversations in complicated environments.

Streamline the Provision and Management, Saving Your Labor and Time Costs

The W76P supports efficient provisioning and effortless mass deployment with Yealink's Redirection and Provisioning Service (RPS) and Boot mechanism to help realize remote deployment, maintenance and upgrade.

Moreover, the new web portal for device management brings clear and intuitive interface to upgrade user experience.

BUILD YOUR UNCRACKABLE PHONE SECURITY

The W76P is shielded with the latest security mechanisms, making your conversations more secure than ever. With TLS 1.3, you benefit from faster and more robust encryption. Learn more enhanced security features in the V87 upgrade.

What's In The Box? YEA-W76P

- W56H Handset
- W70B Base Station
- Charger Cradle
- Rechargeable Battery
- Base Stand
- Ethernet Cable
- Belt Clip
- Quick Start Guide
- Two Power Adapters

Yealink W76P DECT Phone System- Specifications:

Specifications

Specifications	Description
Phone Features	• Up to 20 simultaneous calls • Up to 10 handsets • Up to 10 SIP accounts • Up to 2 simultaneous calls per handset • Up to 6 repeaters per base station (RT30) • Handset selection for receiving a call • Handset and number selection for placing a call • Paging, intercom, auto answer, dial plan • Call hold, call transfer, 3-way conference • Switching between calls • Call waiting, mute, silence, DND • Caller ID with name and number • Anonymous call/Anonymous call rejection • Call forward: Always/Busy/No Answer • Speed dial/Voice mail/Redial • Message Waiting Indication (MWI) • Music on hold (server-based) • Local phonebook for up to 1000 entries (stored in the base) • Remote phonebook/LDAP/XML phonebook • Phonebook search/import/export • 100 call history per handset: All/Placed/Missed/Received • Direct IP call without SIP proxy • Reset to factory, reboot • Keypad lock, emergency call • BroadSoft directory, BroadSoft call log • Broadworks feature key synchronization • Shared Call Appearance (SCA) • XML browser • Action URI
Personalization	• 9 ringer melodies • Screen saver • Multilingual user interface
Management	• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS • Auto-provision with PnP • Handset upgrade: OTA (Over-The-Air)/ No Perception Upgrade • Configuration: browser/phone/auto-provision • Trace package and system log export
Audio Features	• Full-duplex speakerphone • Hearing Aid Compatibility (HAC) compliant • Receiver volume control: 5 steps • Ringer volume control: 5 steps+off • Multiple advisory tones • Acoustic warning for low battery status • DTMF • Wideband codec: AMR-WB (optional), G.722 • Narrowband codec: PCMU, PCMA, G.726, G.729, G.729A, iLBC • VAD, CNG, AGC, PLC, AJB • AEC (supported by W56H) • Support VQ-RTCPXR (RFC6035), RTCP-XR
Network Features	• SIP v1 (RFC2543), v2 (RFC3261) • SNTP/NTP • VLAN (802.1Q and 802.1P) • 802.1x, LLDP • STUN Client (NAT Traversal) • UDP/TCP/TLS • IP assignment: Static/DHCP • Support outbound proxy server backup
Security	• Open VPN • Transport Layer Security (TLS) • HTTPS (server/client), SRTP (RFC3711) • Digest authentication • Secure configuration file via AES encryption • Support SHA256/SHA512/SHA384 • Three-level configuration mode: Admin/Var/User
DECT	• Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
Interface	• 1 x RJ45 10/100M Ethernet port • Power over Ethernet (IEEE 802.3af), Class 1
Physical Features	• Indoor Range: 50 m (in ideal conditions) • Outdoor Range: 300 m (in ideal conditions) • Battery of W56H (V0-V3): - 1460 mAh, Lithium-ion, 3.7 V, 5.4 WH - Up to 30 hours of talk time (in ideal conditions) - Up to 400 hours of standby time (in ideal conditions) • Battery of W56H (V4): - 3 × 3.7 V 350 mAh (1.295 Wh), Lithium-ion - Up to 30 hours of talk time (in ideal conditions) - Up to 350 hours of standby time (in ideal conditions) • 2.4'' 240x320 pixels color display • Desktop or wall mountable • LCD backlight, key backlight • Energy-saving ECO mode/ECO Mode+ • 12-key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys • Three LED indicators on W70B: - 1 x Registration LED - 1 x Network Status LED - 1 x Power Indicator LED • External Yealink AC adapter: AC 100-240 V Input and DC 5 V/600 mA Output • Color: - Handset: Alabaster Silver - Base: Classic Grey • Handset size: 175 mm x 53 mm x 20.3 mm • Base station size: 130 mm x 100 mm x 25.1 mm • Operating humidity: 10-95% • Handset operating temperature: 0 to 40°C (+32 to 104°F) • Handset/Base station storage temperature: -30 to 70°C (-22 to 158°F) • Base station operating temperature: -10 to +45°C (+14 to 113 °F)
Package Features	• Package contents: - W56H Handset - W70B Base Station - Charger Cradle - Rechargeable Battery - Base Stand - Ethernet Cable - Belt Clip - Quick Start Guide - Two Power Adapters • Qty/CTN: 10 PCS • Giftbox size: 495 mm x 406 mm x 223 mm • Carton meas: 205 mm x 196 mm x 95 mm • N.W: 7.5 kg • G.W: 8.3 kg
Compliance

Shipping Specifications
SKU
SKU	YEA-W76P
Model #	W76P
Barcode #	6938818308671
Brand	Yealink
Shipping Weight	1.3000kg
Shipping Width	0.210m
Shipping Height	0.200m
Shipping Length	0.098m
Shipping Cubic	0.004116000m3
Unit Of Measure	ea
