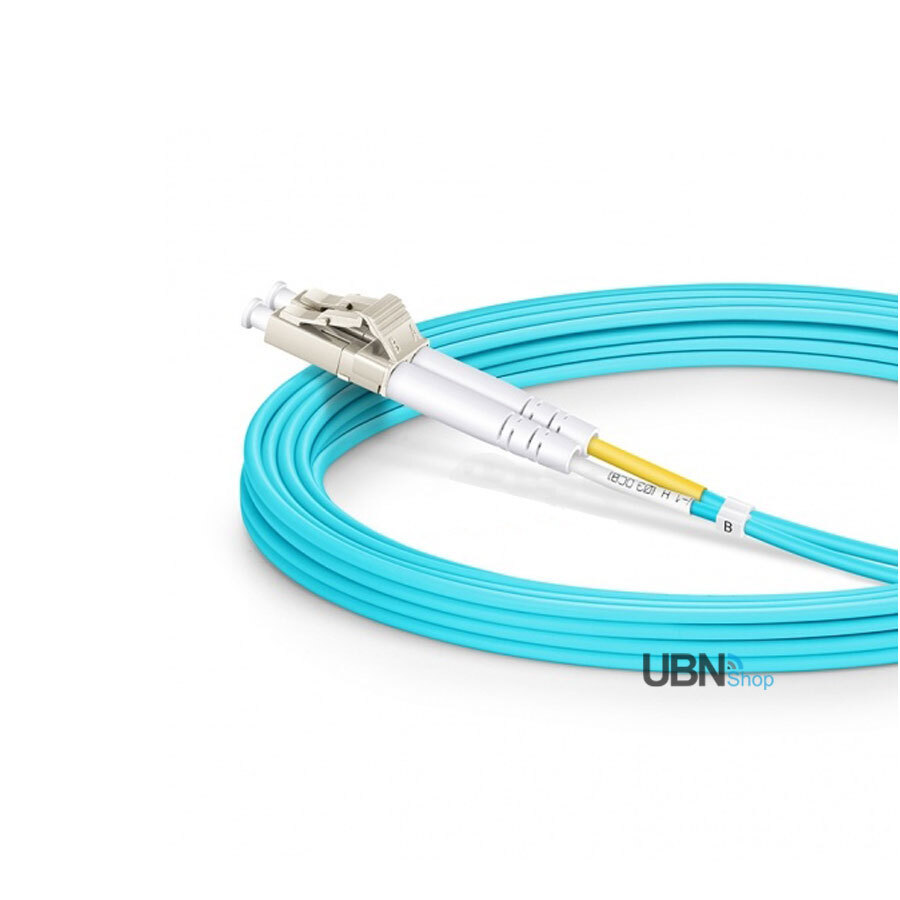

Fibre Optic Patch Lead OM3 LC/SC UPC Duplex MMF LSZH 3M



Industry Standard Fibre Optic Cable

The fibre optic cable has industry standard flammability rating LSZH jacket and duplex fibre connector which meets EIA/TIA 604-2 for high speed cabling networks.

Cost-effective fibre cabling solution for long distance transmission. Our single mode fibre patch leads are 100% tested and certified. They are designed for high speed and legacy networks like Fast Ethernet, Gigabit Ethernet and Fibre Channel, supporting 1G data rates up to 5 km and 10Gb up to 10 km.

Armored Fibre Optic Cable Structure. Fibreshop OM3 Patch Leads



Connector Type LC to SC
Fibre Mode OM3 50/125μm
Insertion Loss ≤0.2dB
Fibre Grade G.657.A1 (Compatible with G.652.D)
Attenuation at 1310 nm 0.36 dB/km
Fibre Count Duplex
Cable Jacket LSZH
Operating Temperature -40~85°C
Polish Type UPC to UPC
Wavelength 850/1300nm
Return Loss ≥35dB
Minimum Bend Radius 10mm
Attenuation at 1550 nm 0.22 dB/km
Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx)
Storage Temperature -40~85°C



Shipping Specifictations

SKU FS-OM3-LC-SC-UPC-DX-3M
Model # FS-OM3-LC-SC-UPC-DX-3M
Brand FibreShop
Shipping Weight 0.0100kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000008000m3
Unit Of Measure ea
