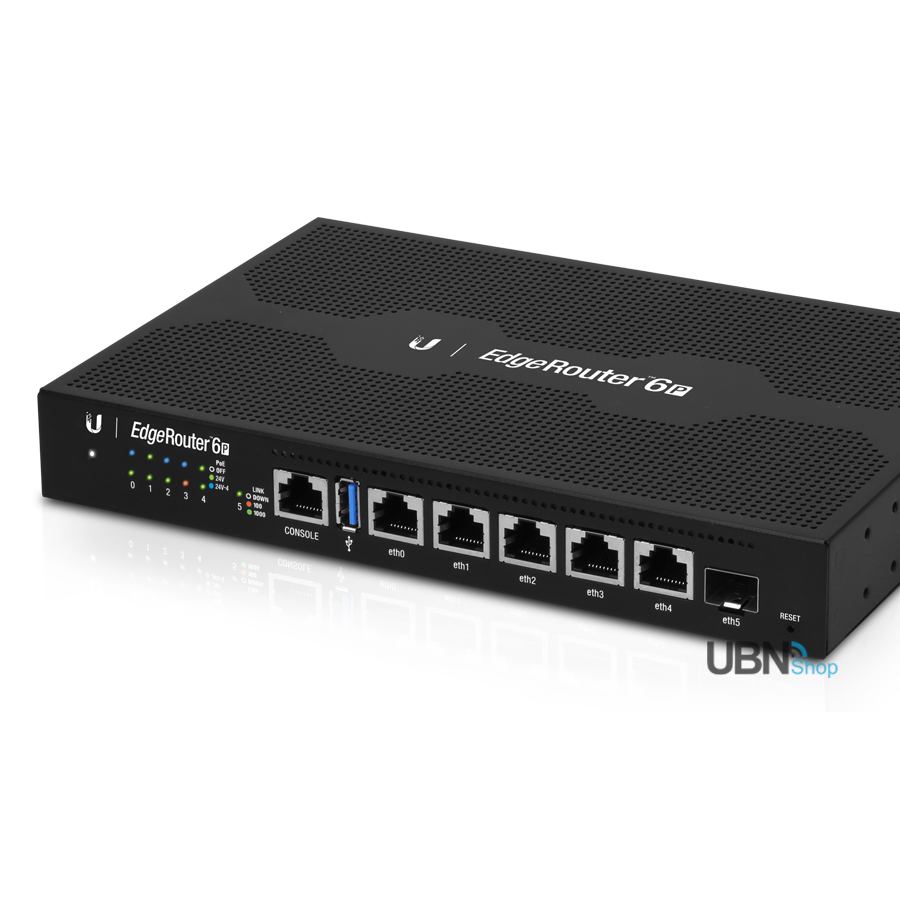

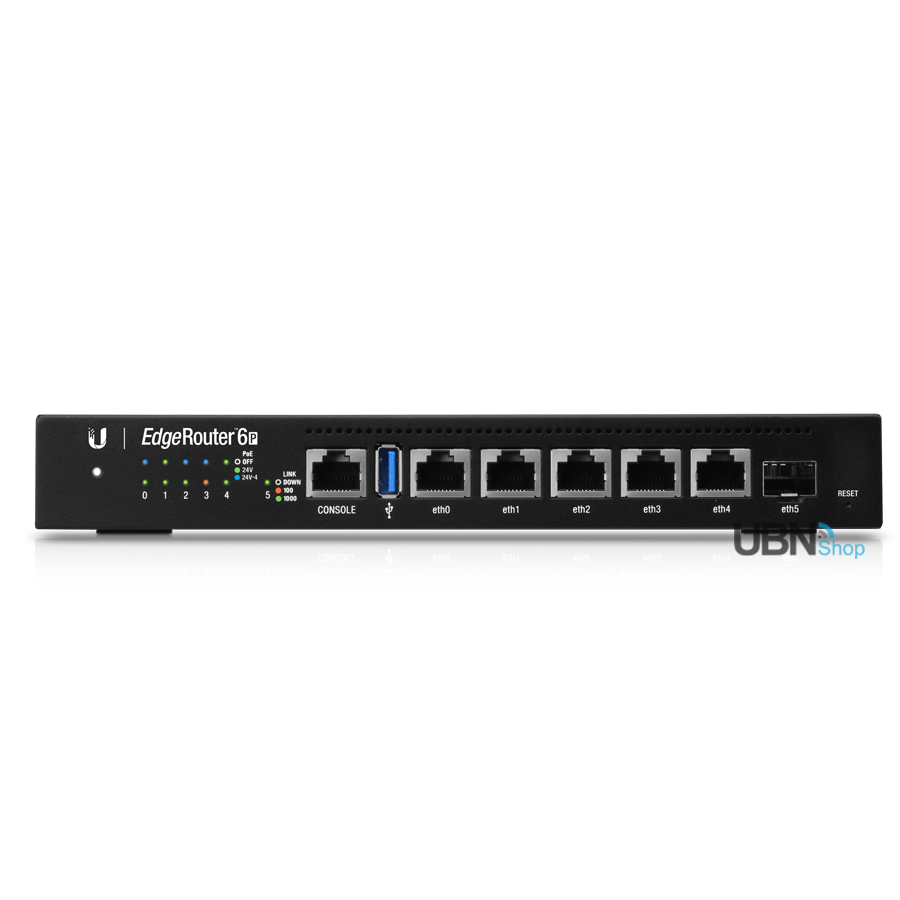

6-Port Gigabit Router with 1 SFP Port



The all-new EdgeRouter 6 brings “high-performance at disruptive pricing” to a new level. With a 50% increase in performance compared to the EdgeRouter Pro, the EdgeRouter 6 delivers the performance your network needs. Paired with our feature-rich EdgeOS makes this a versatile tool in both Carrier-Grade and Enterprise networks. New Design

  • (5) 10/100/1000 Mbps Ethernet Ports and (1) SFP Port
  • Capable of routing up to 3.4 million packets per second.
  • Configurable PoE ports to power airMAX® products.
  • EdgeRouter 6P provide an SFP port for Fiber uplinking
  • 24V PoE Output
  • 4-Core 1GHz MIPS64 Processor
  • External 24V 2.5A power supply
  • Fanless
  • Desk, Wall, and RackMount options*



EdgeRouter 6P

Package Includes

  • 1 x EdgeRouter 6P
  • 2 x Mounting Screws
  • 2 x Wall Mount Anchors
  • 1 x Ground Screws
  • 1 x Power Adapter (24V, 2.5A)
  • 1 x Cable Clip
  • 1 x Power Cord
  • 1 x Quick Start Guide

EdgeRouter 6P - Specifications

EDGEROUTER ER-6P
Dimensions 11.25" x 2.5" x 9.75"
Weight 3.45 lbs
Enclosure Characteristics Metal Housing with Black Powder Coat
HARDWARE
Processor 4-Core 1GHz MIPS64
System Memory 1GB DDR3
On-Board Flash Storage 4GB eMMC, 8MB SPI NOR
Max. Power Consumption 16W
Supported Voltage Range 24V: 27V~21V
Networking Interfaces (1) RJ45 Serial Port
(5) 10/100/1000 Ethernet Router Ports
(1) 1Gbps SFP Ethernet Router Port
(1) USB 3.0 reserved for future
PoE Interfaces (5) 24V Passive PoE ports (2-pair and 4-pair)
Mangement Interface (1) RJ45 Serial Port
(6) Ethernet Ports, (default eth0)

Shipping Specifications

SKU ER-6P
Model # ER-6P
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 1.0000kg
Shipping Width 0.140m
Shipping Height 0.045m
Shipping Length 0.320m
Shipping Cubic 0.002016000m3
Unit Of Measure ea
