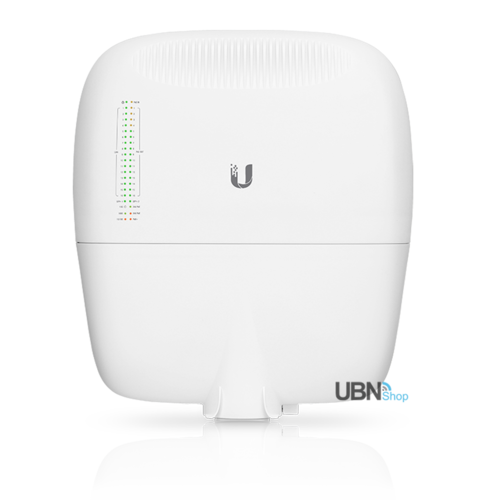

EdgePoint WISP Switch 16 Port

Intelligent WISP Control Point with FiberProtect™



The EdgePoint™ offers an innovative combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform.

The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities. The EdgePoint is available in three models:

• EP-R6 Layer-3 router
• EP-R8 Layer-3 router
• EP-S16 Layer-2 switch with some layer-3 capabilities

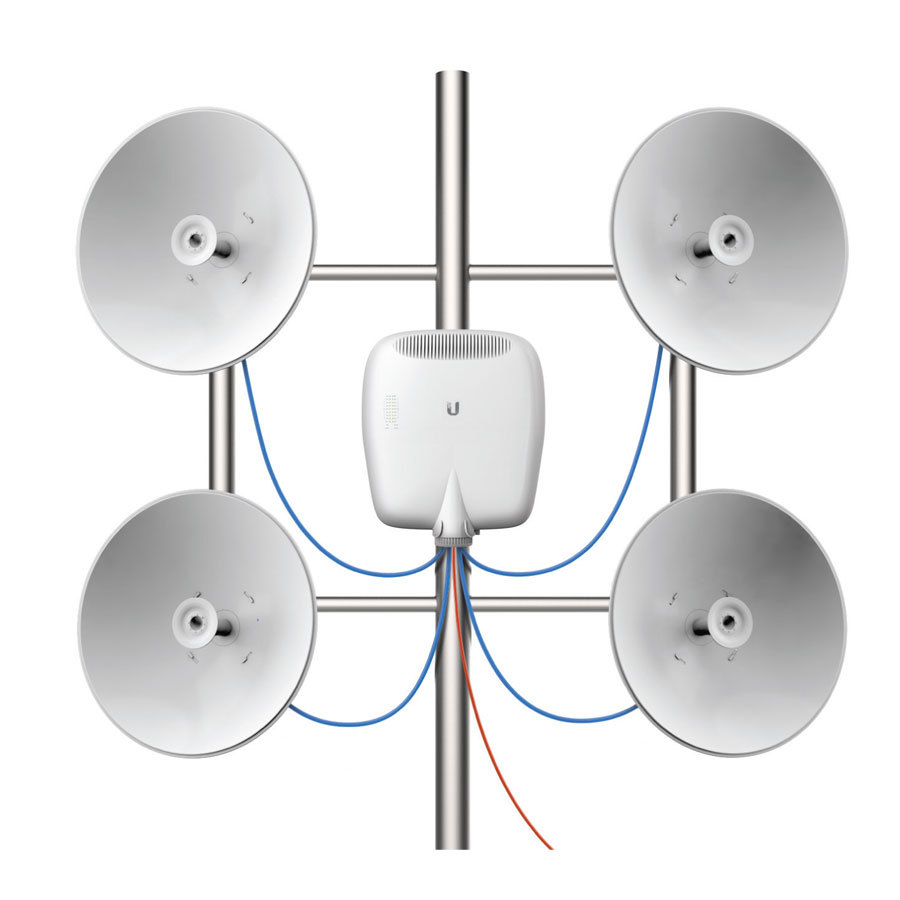

Breakthrough in Tower Deployment
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

Switching Configuration
The EP-S16 provides advanced features, including:

• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing

Advanced Applications
For the EP-S16, layer-2 link aggregation provides similar redundancy and increased performance benefits.

EP-S16 Features
The EP-S16 features 16 RJ45 Ethernet ports and two SFP+ ports.

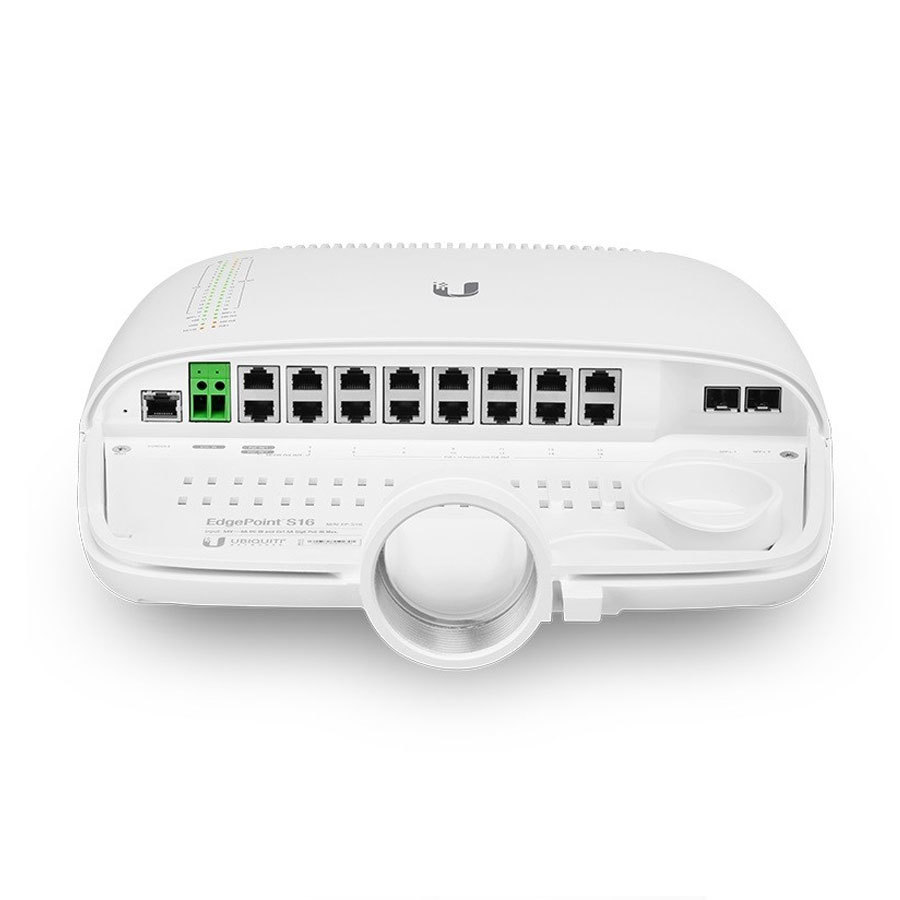

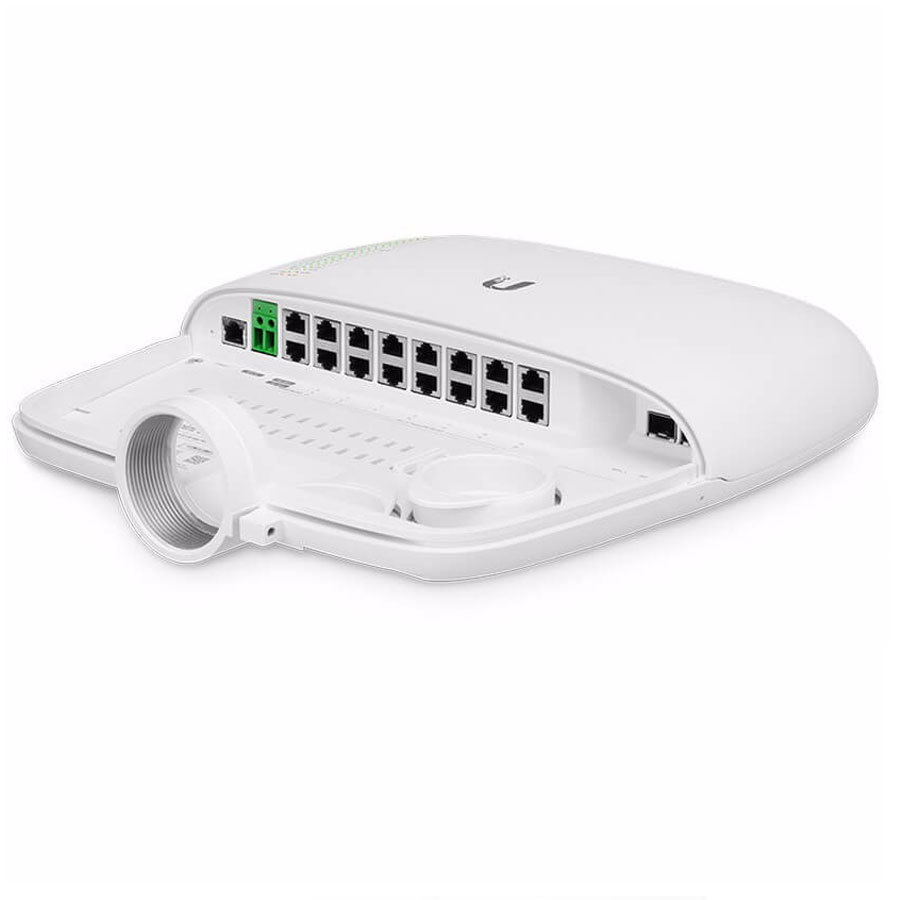

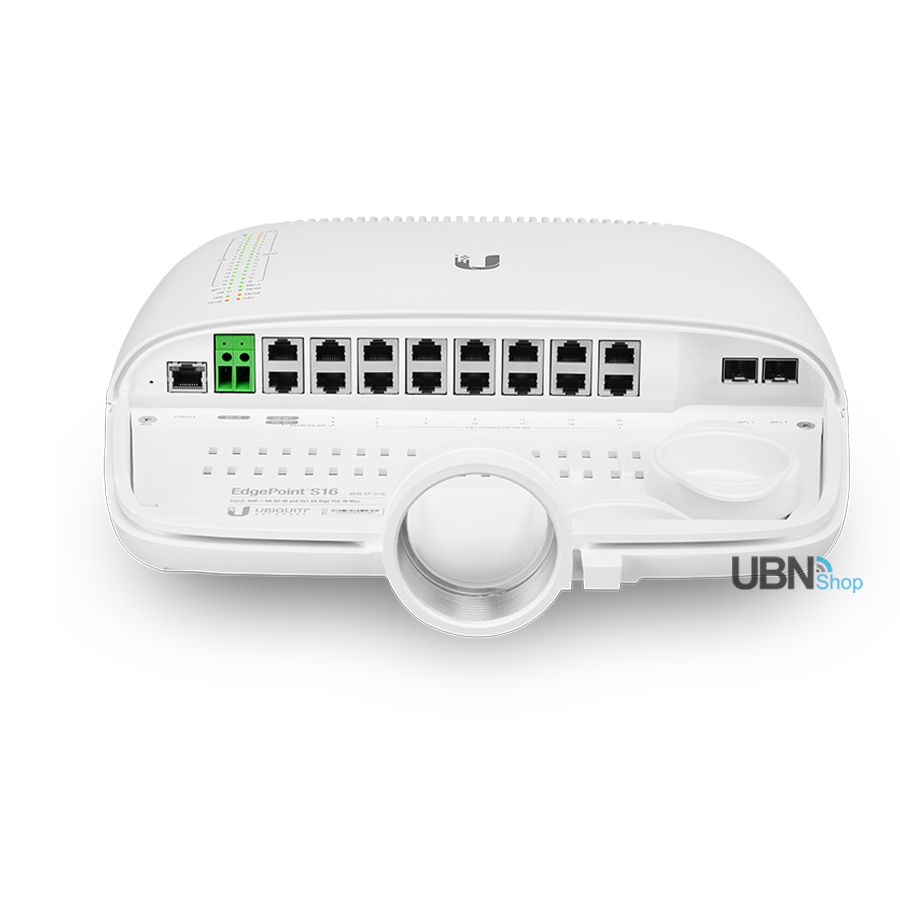

The Bottom Panel

• Power Options
  • 54VDC, 6A Terminal Block
  • Dual PoE Input
• (1) Console Port
• Data;Ports*
  • (16) RJ45 Ports
  • (2) SFP+ Ports

Sixteen RJ45 ports support PoE:

• PoE Input or Output
  • (2) Ports with Two Options:
    • 54V, 1.5A Passive PoE Input or
    • 54 or 24V, 1.4A Passive PoE Output*
• PoE Output
  • (2) 54 or 24V, 1.4A Passive PoE Output Ports*
  • (12) PoE+ or 24V, 0.7A Passive PoE Output Ports*

Cabling Protection

• Strain Relief for Fiber Optic Strands
• Cable Sleeve and Option for Conduit (Not Included)
• Cable Tie Slots (Cable Ties Not Included)

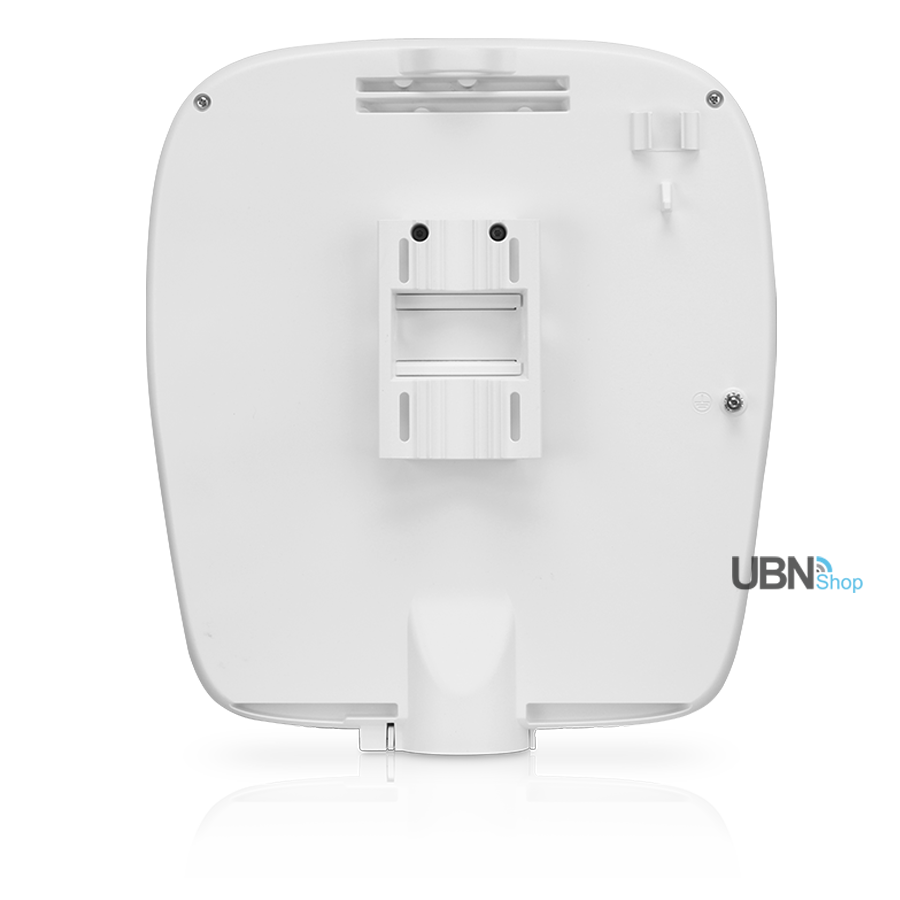

Back Panel

• Lanyard Loop for Ease of Installation
• Slot for PicoStation®M2HP (Not Included) to Allow for Wireless Management
• Pole-Mount Bracket (Wall-Mount Bracket Also Included)
• Ground Bonding Point





Accessories (Sold Seperately)
EdgePower 54V, 150W DC Power Supply Unit
