Cel-FI GO Mobile Repeater Kits for Cars, 4WD's & Trucks with Heavy Duty Spring Mount Omni Antenna
RPR-CF-OA-0020-T
Cel-Fi GO Vehicle Mobile Repeater has been tested, authorised and approved by Telstra, Optus and Vodafone for use on the Mobile Network.
The Cel-Fi GO Mobile repeater for Vehicles, Cel-Fi Go Smart Repeater is the ideal product to boost and distribute a 3G/4G mobile signal within your Vehicle including Cars, 4WD & Trucks. Supporting voice and mobile internet for multiple mobile devices, dropped calls and slow internet are a thing of the past.
Provides Coverage For Automotive Applications

Simply install Cel-Fi GO inside your vehicle and enjoy having great 3G or 4G mobile reception. No longer will you need to stop or drive to a particular spot to be able to make and receive phone calls.Your Cel-Fi GO can be configured to improve the mobile coverage for all types of vehicles from cars to trucks, to farm machinery and caravans,all with only a change in antenna.
Increases Mobile Data Speeds
Slow internet speeds on your mobile device are often caused by low signal. If you suffer from low signal on the go, you will be able to relate to the frustration of trying to access email or the internet. Cel-Fi GO will amplify the available LTE or HSPA mobile signal and increase your data speeds dramatically. Email, internet, video and social networking speeds can achieve up to 4 x improvement. Note: The 4G/LTE bands can only be utilised for data (notcalls) unless both the smart phone and the local network support Voice over LTE(VoLTE).
Your Cel-Fi GO Mobile version can be configured to improve the mobile coverage for many types of applications from Cars, 4WD's to RV's or Motorhomes, Trucks, to small Marine Vessels.
Cel-Fi GO protects the mobile network in several ways by:
- continuously monitoring power levels of the cell tower it is connected to and constantly adjusting the Cel-Fi's output power to suit.
- only amplifying and disbursing a particular carrier’s mobile signal, operating within a set frequency band.
- not interfering with the carrier’s network or other users on the network.
- having a unique installation process to eliminate feedback into the mobile network.

Cel-Fi GO is covered by a 24 month warranty.
Important Note: Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the GO in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.
CEL-FI- GO Features:
- A solution approved by Mobile Carriers and meeting ACMA regulations
- Amplifies and disburses a Telstra 3G /HSPA/4G (LTE) mobile signal,boosting one frequency band at a time.
- Provides manual selection of 3G/4G or utilise the auto band selection.
- Once installed,Cel-Fi GO has Automatic Gain Control (AGC) continuously monitoring system path loss to deliver maximum gain up to 70dB.
- Provides a mobile coverage around the vehicle area.
- Rigid cast-aluminium casing with IP54 rating, suitable for adverse environments.
- Network-Safe protection that monitors mobile base stations in real time to ensure no interference with the normal function of the mobile network.
- Cel-Fi GO supports Bluetooth Connectivity or Micro USB connection to Nextivity’s Smartphone or PC WAVE App
- Intuitive WAVE App allows quick and easy installation by a trained technician.
- Designed for automotive applications
- Bluetooth WAVE App for iPhone, Android & Computers Click Here
NOTES:
Cel-Fi GO will provide coverage for 20+ active users depending on the mobile network capacity in your area.
The 4G/LTE bands can only be utilised for data if both the smart phone and the local network support VoLTE. You will need to check your smart phone to conirm it has VoLTE functionality.
Cel-Fi GO mobile version will not boost in areas where the signal is already very strong. If the signal is better than -80dBm (3G) or -95dBm (4G) the mobile GO version will cease to boost to ensure a degraded level of service is not experienced.
Locate your nearest cellular tower - ACMA Proximity Map
(RPR-CF-OA-VEHICLES)
Cel-Fi GO Mobile Repeater Kits for Cars, 4WD's & Trucks

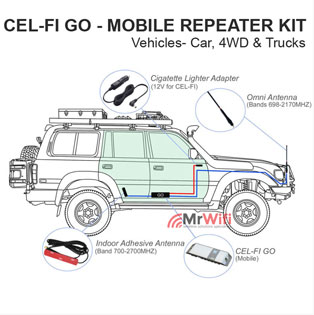

Pack Includes:
- Cel-Fi GO Mobile Model
- Choice of Outdoor Vehicle Antennas as listed below. (choice of black or white)
- Antenna Magnetic Fin Wideband (698-2700 MHz, 4-5.6 dBi)
- Heavy Duty "G-BANGER" Spring Mounted Omni Antenna by Outback Antennas 73cm Wideband (98-2700 MHZ, 4 dBi) with 4.5m cable. (Black or White)
- Adhesive Indoor Antenna "GUMMY" with 3m cable
- 12v Cigarette Lighter DC Adapter with Earth and 5m Lead
- Vehicle Antenna Mount Heavy Duty "HARD-ON" Outback Antennas
- Bluetooth WAVE App for iPhone, Android & Computers Click Here
Cel-Fi GO Mobile Repeater Kits for Cars, 4WD's & Trucks -SPECIFICATIONS
Cel-Fi GO - Mobile Model
Details | |
---|---|
Manufacturer | Nextivity |
Output Power | NA |
Model | Cel-Fi-Go Mobile |
Antenna Port | 2 x SMA Female |
Frequency | 3G 850MHz, 4G 700/1800MHz (boosts one band at a time) |
Warranty | 24 Months |
Gain | 100dB |
INDOOR ADHESIVE MOUNT ANTENNA "GUMMY" - 700-2700MHZ
ELECTRICAL SPECIFICATIONS | |
Frequency Range | 698-960 MHz / 1710-2170 MHz |
Input Impedance | 50 Ω |
Gain | 3.5 dBi |
VSWR | ≤3.0 |
Polarisation | Vertical |
Radiation Direction | 360° (omnidirectional) |
Maximum Input Power | 50 W |
MECHANICAL SPECIFICATIONS | |
Antenna Length | 115x21x3mm |
Cable | 300mm |
Connector Type | SMA Male |
Mounting | 3M Sticker |
Radome Color | Black |
Cable | RG174 |
Suction | 07kg |
Attachment | Welding |
HEAVY DUTY "G-BANGER" Spring Mounted Omni Antenna by Outback Antennas 698-2700MHZ - SPECIFICATIONS
NETWORK COMPATABILITY | |||
Network | Bandwidth | Coverage | Gain |
Telstra 4GX | 700 MHz | Yes | 4 dBi |
Telstra Next-G | 850 MHz | Yes | 4 dBi |
Telstra 4G | 1800 MHz | Yes | 6 dBi |
Telstra 3G (Metro) | 2100 MHz | Yes | 6 dBi |
Telstra 4G (Metro) | 2600 MHz | No | - |
Optus 4G+ | 700 MHz | Yes | 4 dBi |
Optus 3G | 900 MHz | Yes | 4 dBi |
Optus 4G | 1800 MHz | Yes | 6 dBi |
Optus 3G (Metro) | 2100 MHz | Yes | 6 dBi |
Optus 4G TDD | 2300 MHz | No | - |
Optus 4G (Metro) | 2600 MHz | No | - |
Vodafone 4G+ | 850 MHz | Yes | 4 dBi |
Vodafone 3G | 900 MHz | Yes | 4 dBi |
Vodafone 4G | 1800 MHz | Yes | 6 dBi |
Vodafone 3G (Metro) | 2100 MHz | Yes | 6 dBi |
ELECTRICAL SPECIFICATIONS | |||
Frequency Range | 698-960 MHz / 1710-2700 MHz | ||
Input Impedance | 50 Ω | ||
Peak Gain | 4 / 6 dBi | ||
VSWR | ≤2.0:1 / ≤2.0:1 | ||
Polarisation | Vertical, linear | ||
Horizontal Beamwidth | 360° (omnidirectional) | ||
Vertical Beamwidth | 48 / 23° | ||
Maximum Input Power | 50 W | ||
MECHANICAL SPECIFICATIONS | |||
Input Connector | SMA Male | ||
Cable | 4 m LMR200 cable | ||
Lightning Protection | DC Ground | ||
Antenna Construction | Fibreglass radome, heavy duty spring base | ||
Mounting | L bracket for fender mounting | ||
Dimensions | 730 x Ø50 mm | ||
Weight | 1.5 kg | ||
Rated Wind Velocity | 210 km/h | ||
Operating Temperature | -40 to +65°C |
SHIPPING SPECIFICATIONS
SKU | RPR-CF-OA-VEHICLES |
Model # | RPR-CF-VEHICLES |
Brand | CEL-FI |
Shipping Weight | 6.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.400m |
Shipping Length | 0.800m |
Shipping Cubic | 0.128000000m3 |
