Advanced RF Isolation Variable Beamwidth Antenna
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks. Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology. the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks. The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
Reduced Co-Location Interference
Drawing on Ubiquiti’s depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co‑location deployments.
Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60˚, 90˚, or 120˚ sector. Antenna gain changes according to the configured beamwidth.
|AM-V2G-Ti||17 dBi||16 dBi||15 dBi|
|AM-V5G-Ti||21 dBi||20 dBi||19 dBi|
|AM-M-V5G-Ti||17 dBi||16 dBi||15 dBi|
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket™M Titanium..
- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co-location environment
- Increased durability in harsh weather
Easily Mount and Protect Your Rocket
The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.

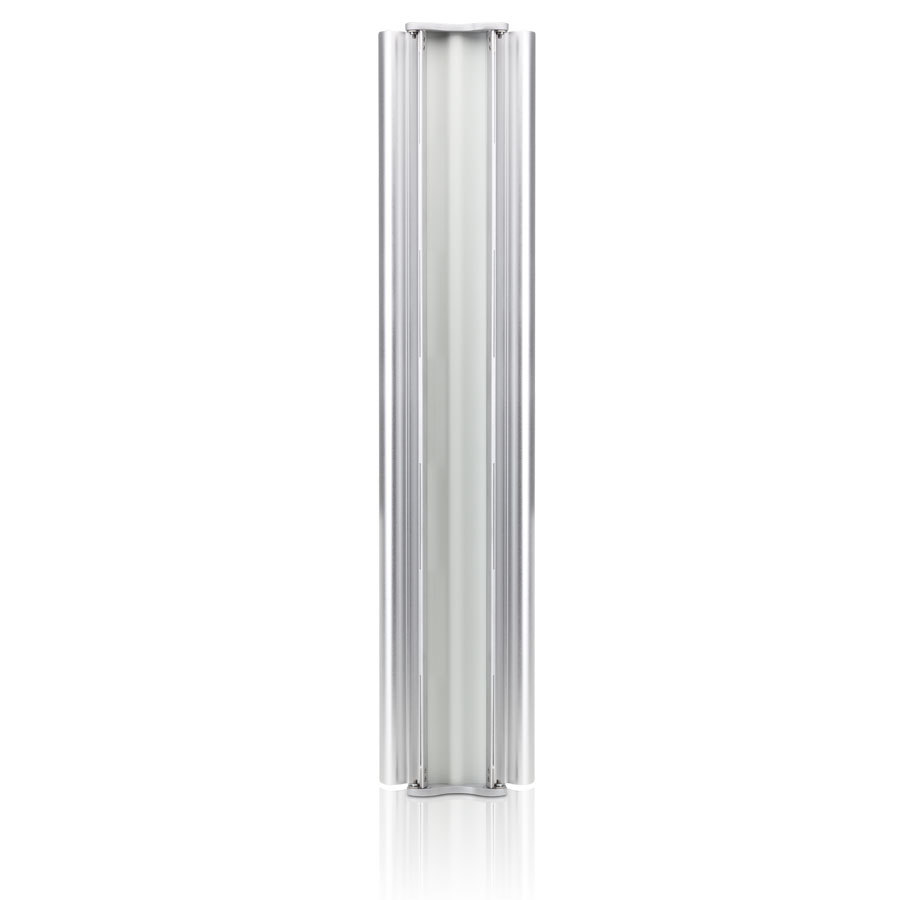

airMAX 5GHz 15 - 17dBi, 60° - 120° Titanium Sector Antenna
- 1 x Antenna
- 1 x Protective Shroud
- 2 x U-Brackets
- 2 x Pole Bracket
- 2 x Pole Clamp
- 4 x Carriage Bolts (M8x135)
- 4 x Serrated Flange Bolts (M8x20)
- 8 x Serrated Flange Nuts (M8)
- 2 x RF Cables
- Quick Start Guide
airMAX 5GHz 15 - 17dBi, 60° - 120° Titanium Sector Antenna - Specifications
|Dimensions (mm)||721 x 149.1 x 75.7 mm|
|Weight||3.72 kg (with Brackets)|
|Frequency Range||5.45 - 5.85 GHz|
|Gain||21 dBi @ 60°
20 dBi @ 90°
19 dBi @ 120°
|Beamwidth Angles||60°/ 90°/ 120°|
|Wind Survivability||125 mph|
|Wind Loading||37 lbf @ 100 mph|
|Cross-pol Isolation||25 dB Typical|
|Front-to-Back Ratio||30 dB Typical|
|RF Connectors||2 RP-SMA Connectors (Weatherproof )|
|Compatible Radios||RocketM5 Titanium
|Mounting||Pole Mount (Kit Included)|
|ETSI Specification||EN 302 326 DN2|
|Certifications||CE, FCC, IC|
|Unit Of Measure||ea|
